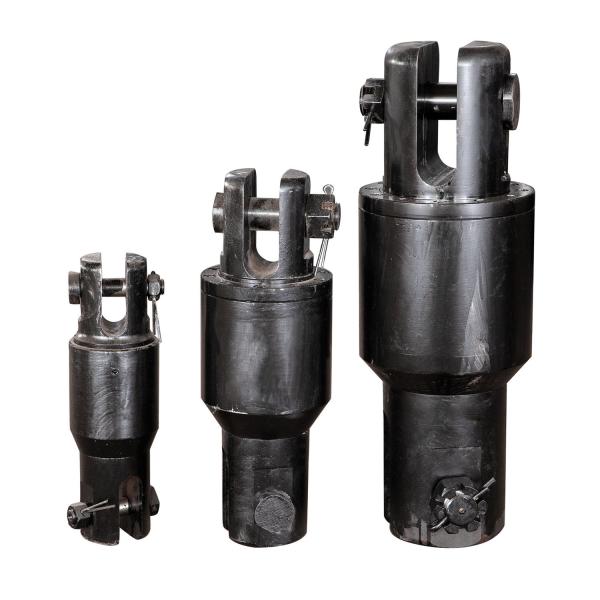

Carbon Steel Drill Pipe Swivel with NC31 Connection for Extended Reach Drilling in 10T and 15T Swivel Series
Carbon Steel Drill Pipe Swivel with NC31 Connection for Extended Reach Drilling in 10T and 15T Swivel Series
Carbon Steel Drill Pipe Swivel with NC31 Connection for Extended Reach Drilling in 10T and 15T Swivel Series
Carbon Steel Drill Pipe Swivel with NC31 Connection for Extended Reach Drilling in 10T and 15T Swivel Series
Carbon Steel Drill Pipe Swivel with NC31 Connection for Extended Reach Drilling in 10T and 15T Swivel Series
Carbon Steel Drill Pipe Swivel with NC31 Connection for Extended Reach Drilling in 10T and 15T Swivel Series
Carbon Steel Drill Pipe Swivel with NC31 Connection for Extended Reach Drilling in 10T and 15T Swivel Series
Carbon Steel Drill Pipe Swivel with NC31 Connection for Extended Reach Drilling in 10T and 15T Swivel Series
Carbon Steel Drill Pipe Swivel with NC31 Connection for Extended Reach Drilling in 10T and 15T Swivel Series
Carbon Steel Drill Pipe Swivel with NC31 Connection for Extended Reach Drilling in 10T and 15T Swivel Series
Specifications
Brand Name :
Longway
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
20-30 working days, which will be adjusted according to different products and inventory
Packaging Details :
According to clients' needs
Traction and connection mode :
Binaural
Description

The Drill Pipe Swivel can be run on any string where potential problems exist in reaching target depth due to frictional issues, typically in long, horizontal extended reach drilling (ERD) wells.


A drill-string deployed swivel tool, our Langwei™ Swivel facilitates the rotation of the drill pipe above the liner in an ERD well, reducing drag, redistributing friction and mitigating helical buckling of the work-string. It also increases the available weight to push completions and liners to target depth in ERD wells.


Type Traction end connection mode A(mm) B(mm) C(mm) D(mm) E(mm) kg
10T Swivel Series Binaural 28 99 317 28 33 10.5
15T Swivel Series Binaural 32 109 360 32 38 19
18T Swivel Series Binaural 32 136 352 30 35 20.5
20T Swivel Series Binaural 36 146 415 36 44 26.5
25T Swivel Series Binaural 38 156 433 38 42 29
30T Swivel Series Binaural 39 166 477 40 50 41
40T Swivel Series Binaural 42 192 543 48 60 70
50T Swivel Series Binaural 61 210 571 59 75 100










A(mm) B(mm) C(mm) D(mm) E(mm) kg
50T Swivel Series NC31 60 210 571 60 75 100
60T Swivel Series NC38 65 234 672 65 90 125
80T Swivel Series NC46 65 244 697 65 90 175
100T Swivel Series NC50 85 270 821 84 108 240
150T Swivel Series NC50 100 314 904 102 135 330
200T Swivel Series NC50,5-1-2FH 110 340 1177 118 150 415
300T Swivel Series NC50,5-1-2FH 125 390 1282 122 173 800
400T Swivel Series 6-5-8FH 150 480 1530 150 216 940
500T Swivel Series 6-5-8FH 170 570 1651 192 248 2010


Features

Swivel cap complete with lifting bail for hoisting cable applications.
Specially designed bearing lubrication keeps contaminants away and relieves excess lubrication pressure.
Suitable for use with water or drilling mud.
Easy servicing in the field with common tools.
Majority of components are common with underground compact plus water swivel.


FAQ


Q: What is your delivery time?
A: Our standard production time is around 20 days. If the items are in stock, we can ship within 3 days.
Q: How do you ensure product quality?
A: We conduct strict quality inspections and performance tests on every drill rod before shipment to ensure reliability and durability.
Q: Do you accept sample orders?
A: Yes, we welcome sample orders. It’s a great way for you to evaluate our product quality before placing a larger order.
Q: Are your drill pipes heat-treated?
A: Yes, all of our drill pipes and casings undergo professional heat treatment to enhance their strength and performance.
Q: Do your drill pipes have anti-rust protection?
A: Yes, each drill pipe and casing is coated with anti-rust paint or anti-corrosion oil before shipping. If you require galvanized pipes, please let us know.
