BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length
BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length
BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length
BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length
Specifications
Brand Name :
Longway
Model Number :
BW3
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
20-30 working days, which will be adjusted according to different products and inventory
Packaging Details :
According to clients' needs
Description

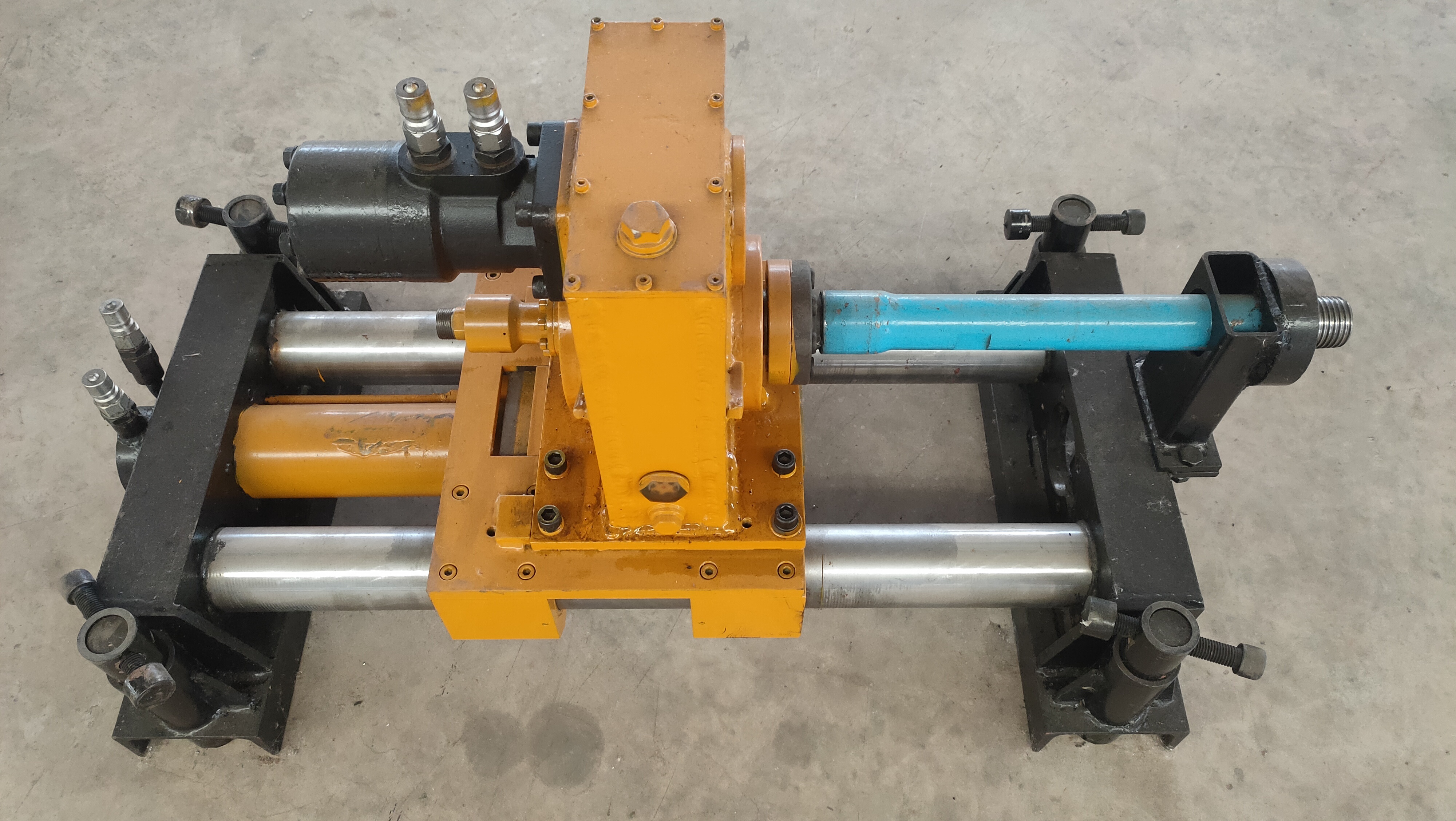

BW3 Micro Horizontal Drilling Rig


BW3 micro horizontal driling rig can work in narrow space such as inspecion well, suitable for pipe-line plugging, pipeline repairsmall pipeline directional crossing laying, etc. The driling rig is equipped with swivel, and mud or compressed air can be used aswashing fluid when driing. Can be connected to the micro guide bit for horizontal directional driling, can be connected to thespecially designed micro DTH hammer efficient drilling cement, rock, etc.


主机外形尺寸Dimension of main engine(mm3) 900X470X480
钻杆直径Diameter of drill rod(mm) 42
钻杆长度Length of drill rod(mm) 350
主机重量Weight of main machine(kg) 170
液压站重量(空)Weight of hydraulic (kg) 200
最大扭矩Maximum torque(Nm) 1100
转速Rotation rate(r/min) 36.5
进给力Feed force(kN) 31
回拖力Pull force(kN) 15
给进速度Feed speed(m/min) 0.06-0.3


BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length
