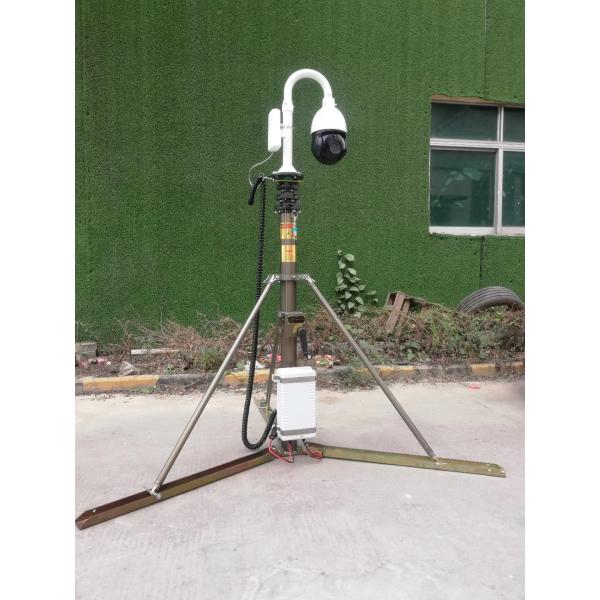

26 Feet 44lb 8M Telescoping Antenna Mast With Tripod
26 Feet 44lb 8M Telescoping Antenna Mast With Tripod
26 Feet 44lb 8M Telescoping Antenna Mast With Tripod
26 Feet 44lb 8M Telescoping Antenna Mast With Tripod
26 Feet 44lb 8M Telescoping Antenna Mast With Tripod
26 Feet 44lb 8M Telescoping Antenna Mast With Tripod
Specifications
material :
aluminum alloy 6063
extended height :
8 meters / 26 feet
close height :
1.8 meter / 5.9 ft
lifting way :
manual winch cranking
Wind resistance :
Level 8, (17.2~20.4m/s means 62~74km/h)
mast surface treatment :
hard anodized
payload :
20KG /44lb
color :
Bronze, Grey, customized

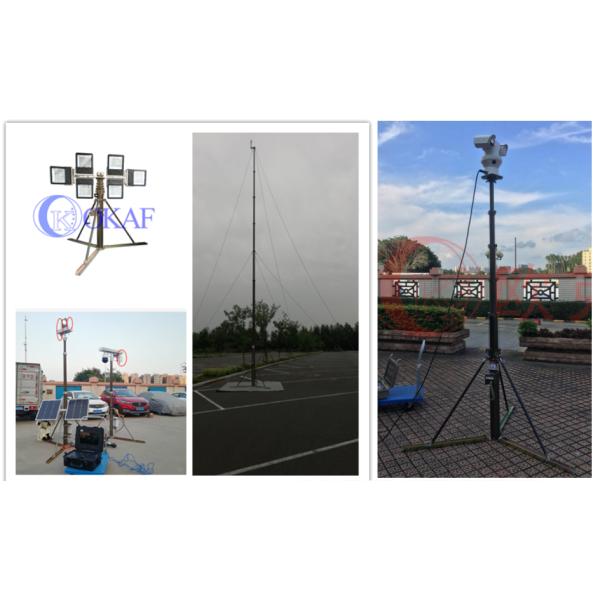

application :
emergency lighting, mobile communication, surveillance
mounting device :
Camera, floodlight, lightning rod, telecommunication equipment
Brand Name :
OKAF
Model Number :
OK-SD03-20SJ
Certification :
CE ROHS UN38.5 MSDS
Place of Origin :
CHINA, guangdong
MOQ :
1
Price :
Negotiated The Price
Payment Terms :
D/A, D/P, T/T, , Alibaba trade assurance, Paypal
Supply Ability :
800PCS /Day
Delivery Time :
10-15 working days

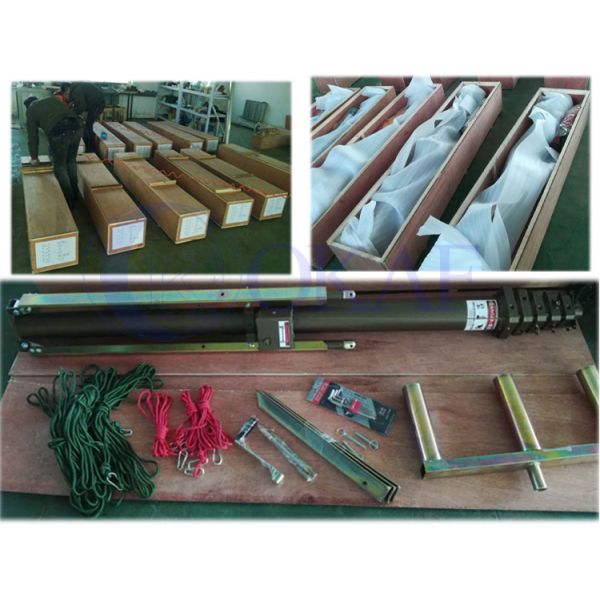

Packaging Details :
standard wooden carton package
Description

26 Feet 44lb 8M Telescoping Antenna Mast With Tripod

Working principle:

The system uses screw drive or wire rope drive. Its good self-locking performance achieving reliable self-locking in any position improves the safety of reliability.

Height options:

Model Extended Height meter Extended height feet retracted height Number of Tubes Min Pipe Diameter Maximum diameter Max payload
OK-DD03SJ 3M 9.84 1.3M 3(1060-200) ∮52mm ∮80mm 30㎏
OK-DD04SJ 4M 13.12 1.4M 4(1140-220) ∮40mm ∮80mm 30㎏
OK-DD05SJ 5M 16.40 1.6M 4(1340-220) ∮40mm ∮80mm 25㎏
OK-DD05BSJ 5M 16.40 1.3M 6(970-220) ∮40mm ∮106mm 20㎏
OK-DD06SJ 6M 19.69 1.5M 6(1160-230) ∮40mm ∮106mm 20㎏
OK-DD08SJ 8M 26.25 1.8M 6(1460-240) ∮40mm ∮106mm 20㎏
OK-DD10SJ 10M 32.81 2.2M 6(1860-270) ∮40mm ∮106mm 15㎏
OK-DD10BSJ 10M 32.81 1.9M 8(1500-280) ∮40mm ∮132mm 15㎏
OK-DD12SJ 12M 39.37 2.2M 8(1780-340) ∮40mm ∮132mm 10㎏
OK-DD15SJ 15M 49.21 2.6M 8(2180-400) ∮40mm ∮132mm 8㎏
OK-DD18SJ 18M 59.06 3.0M 8(2580-450) ∮52mm ∮160mm 5㎏
OK-DD20SJ 20M 65.62 3.2M 8(2390-450) ∮40mm ∮160mm 5㎏

Environmental adaptability:

Items Test condition

Anti-wind capability

Level 8 wind: work normally; level 12 wind: can not be destroyed (working condition, nailed into the ground, 3-4 guy wires, pull angle: 30-40 degrees, the guy wire is tight).

GJB74A-1998 3.13.13
Low tempertaure storage -55°
Low tempertaure working -40°
high temperature storage 70°
high-temperature working 55°
Humidity less than 90%(temperature 25°)
Exposed to the rain Strength 6mm/min, the time of duration is 1 hour
Antiseptic Refer to GJB150.11A-2009 Standard test
Dust-proof Refer to GJB150.12.1986 Standard test
Solar radiation Refer to GJB150.7.1986 Standard test
Mould Refer to GJB150.2.1986 the second chapter standard inspection. Mildew-growing level: level 1
Rated load capacity Lifting hand force ≤120N
Accuracy of torsion ≤2°
Swing wind speed 18m/s, oscillating quantity: 5%-8% of total height (With full guy wires)
Lift speed Average speed 4m/min
Mounting Time Single person≤15min 2 persons≤8min
Reliability Rated load for 30 consecutive movements without damage or permanent deformation

Maintainability

 Wearing parts easy to disassemble; components can be repaired and maintenanced by tools; general maintenance and repair time≤30min
Security Self-locking at any height; would not fall at any time

26 Feet 44lb 8M Telescoping Antenna Mast With Tripod

How to choose telescopic mast?

1. which type of mast do you like? manual, electric or pneumatic

2. your expected close height and extended height of the mast

3. what will be mounted onto the top of the mast and its estimate weight

Give us the above information, we can customize the telescopic mast for you.

What's the discrepancy of manual, electric and pneumatic mast?

Manual telescopic mast is used for the circumstances without power supply, the payload is about 5KG to 30KG depends on the mast extended height and tube diameters.
Electric telescopic mast is lifted by power supply, the load capacity is similar to the manual telescopic mast. When the power is no available, it can be lifted by manual hand crank.
Pneumatic telescopic mast top payload is much higher then the electric and manual mast. It needs air pump/compressor to elevate, it may not work in the temperature under 45 degree. Hollow mast, with less weight itself, max 400KG payload, but higher cost.

Pneumatic mast can build internal cables, but manual or motorized winch can only equip external cables.
