Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer
Specifications
Model Number :
OK-RPO7
Camera type :
PTZ camera / bullet camera optional
MOQ :
1
Delivery Time :
30~35 working days
Telescopic mast :
6m ( 3 to 12m optional)
Payment Terms :
T/T
Battery :
2400Wh / 4800Wh /7200Wh /9600Wh or more
Price :
Negociate
Solar panel :
3*120 / 3*200 / 3*300W/3*400W optional
Certification :
CE
Resolution :
1920x1080 / 2560x1440 /4K optional
Supply Ability :
200 units / month
Mobile App :
Including mobile App for online video
Brand Name :
OKAF
Product name :
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer
Place of Origin :
China
Optical zoom :
20x /33x /40x Optical zoom optinal
Packaging Details :
Wood box
Description

Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer

System components
OKAF solar power security camera trailer OK-PR07 including Trailer body, HD PTZ cameras, Solar Power, Battery power, auto lifting system and 4G transmission system. The material of trailer body is mental or stainless steel according to customer's requirement.It is come with the big wheels for driving on road. It is perfect for a tow. The outtrigers make the trailer stand well and more stable. The system running times about 3~5 days according to battery capacity. Telescopic mast height 3~9m available, realized 360 degree no blind angle surveillance.
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer
Features of OKAF Mobile Solar surveillance security trailer
♦ Rapid deployment. One can complete the system within 5 minutes to meet emergency need.
♦Front-end 360° no blind angle monitoring, equipment is mobile, more flexible to use.
♦ No need to set points and wiring, reduce the cost of deployment.
♦ No need to disassemble,easy to use and operate.
♦ 22-inch high-definition local display, wireless and local professional control keyboard.
♦ Thickened metal body, galvanized rust-proof bracket, more durable equipment.
♦ Battery last long time, the system can run for 5-7 days after one charge.
♦ Alternate charging optional,support solar and mains 220V input charging.
♦ 4G,and LTN multiple signal transmission modes, data transmission is safe and smooth.
♦ Support drone video access and local display and software platform viewing.
♦ Supports intelligent detection of area intrusion detection, cross-border detection, motion detection, etc.
♦ Support license plate capture and retrieval, mixed line detection, multi-scene cruise detection, cloud storage service functions
♦ High scalability, multi-functional installation platform, can increase anti-drones system, drone tracking system, drone relay acceptance, etc.
♦ Scalable AI intelligent algorithms: hard hats, reflective clothing, people counting, face recognition, license plate
recognition, and IoT sensor modules: temperature and humidity, PM2.5, noise, air pollution, dust detection and other functional modules.
♦ Various anti-theft measures, built-in GPS positioning, vibration sensor, sound alarm, car lock, etc., to ensure system security.
♦ Back-end mobile control, view data and issue instructions anytime and anywhere.
♦ Auto lifting telescopic mast, 3 meter to 9 meter is available.
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer

Built in screen and key board joystick


OKAF Mobile solar security trailer customized built in screen and keyboard joystick for local viewing and local controlling.
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer

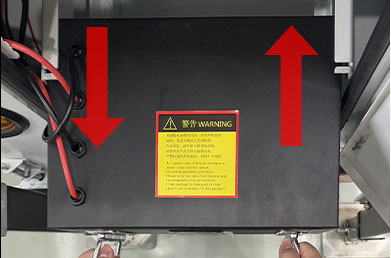

Battery design

Easy to take out and easy to connect
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer

Solar panel

Pull out design of solar panels
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer

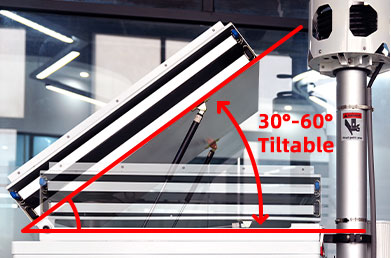

Solar panel

Solar panel angle is adjustable
APPLICATIONS
OKAF mobile security trailer aims to solve challenges facing security personnel, such as:
♦ Urgent surveillance for emergency rescue.
♦ Mobile Surveillance for construction site.
♦ Mobile Surveillance for all kinds of events.
♦ dynamic forensic
♦ Unpredictable threats.
♦ Change of incident locations.
♦ Harsh environments that threaten personal safety
♦ Surveillance for unavailability of electricity, communication and lighting
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer
Advantages of OKAF Mobile Solar CCTV Trailer
Advantages of the Mobile solar cctv trailer
• Front end data mobile acquisition equipment.
• Wireless transmission equipment.
• GPS positioning device.
• Back end storage and control system.
• The high-speed trailer is equipped with an automatic lifting mast (the lifting of the mast and the zoom rotation of the camera can be controlled by the wireless remote control and RS485.
• Compatible with traditional wired transmission mode (network cable, optical fiber, etc.)
• Local and cloud storage at the same time, with local storage capacity up to 2T
• Support simultaneous control of PC terminal and handheld mobile terminal.
• Retractable outrigger, more stable.
• Various power supply measures (battery, solar power supply, AC charging).
• Alarm device.
• Equipped with the latest wireless bridge technology, the sight distance transmission distance is up to 10km, and the non sight distance transmission distance is up to 50km.
Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer
TECHNICAL DATA
CCTV Surveillance camera
Camera type
Network IP PTZ camera
Pixel
2.0MP /4MP
Resolution
1920*1080 @ 30fp
Focal length
f=5.4~108mm, 20x optical zoom
Pan range
360° continuously rotation
Tilt range
-15°~ +90° rotation
Network port
RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
Support
Area intrusion alarm
Video Transmission & storage
Video input
4 channel network 1080P, aviation interface
Video output
1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω
Preview function
Single-channel, 4-screen splicing preview, support manual / event triggered full-screen display function
Video resolution
Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P
Audio input
4channel, Aviation interface
Audio output
1channel
Alarm Output
2-way switch output, linked audible and visual alarm, oil and power off, etc.
communication interface
2 RS232, expandable face recognition, fuel sensor, LED advertising screen, etc.
2 way 485 interface, can extend PTZ
2-way CAN bus interface
Wireless transmission
Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE
Position
Support built-in GPS / BD module, can report to the platform.
Anti theft.
Hard disk
Support large capacity 2.5-inch hard disk (maximum 4TB)
Power supply
Solar panel
Monocrystalline silicon
Solar Power
3*120W / 3*200W / 3*300W/ 3*435W optional
Solar controller
MPPT solar controller, 95% efficiency
Battery type
Lithium battery / Gel battery optional
Battery capacity
200Ah / 400Ah / 600Ah /800Ah optional
Battery charge time
6 hours
Battery running time for 50W
about 48 hours (2 days)
Battery charger
AC110~ AC240V
Telescopic mast
Mast Type
Pneumatic telescopic mast
Mast height
Full height 6m. retracted height 1.8m. Maximum diameter 113mm. 5 sections ( 3 to 10m optional)
Top Payload weight
40KG
Material
Alumium alloy
Wind speed
8 level. 66km/h
Internal cable
1*CAT5 + 2*1.0 power wires
Trailer body
Material
Galvanized sheet, outdoor anti-corrosive power coating.
Trailer type
US standard, Ball hitch,single axis
Wheel's Rim Size & Tires
15 inch Tire
Trailer speed limit
80km/h
Handbrake
Support
Outrigger
4* Manual lifting outriggers
Inverter
Support AC110V ~AC220V output
Anti thief
Built in GPS
IP rating
IP65 waterproof for outdoor use
Low temperature storage
-55℃
Low temperature work
-20'℃
High temperature storage
70 ℃
High temperature work
55℃
Weight
400KG
Packed in container
4 Units in 20ft Container. 8 units in 40ft containe
