Specifications
Lens :
f5.4~108.0mm 20x optical zoom
Material :
Aluminum alloy material
Support :
Support remote real time viewing & control
Feature :
360 degree rotation
Resolution :
1920*1080P Full High definition
MOQ :
1
Price :
Negociate
Payment Terms :
T/T, L/C, Western Union,
Supply Ability :
2000 units/ month
Delivery Time :
5-10 working days
Packaging Details :
Standard export carton
Warranty :
12 month
Accessories :

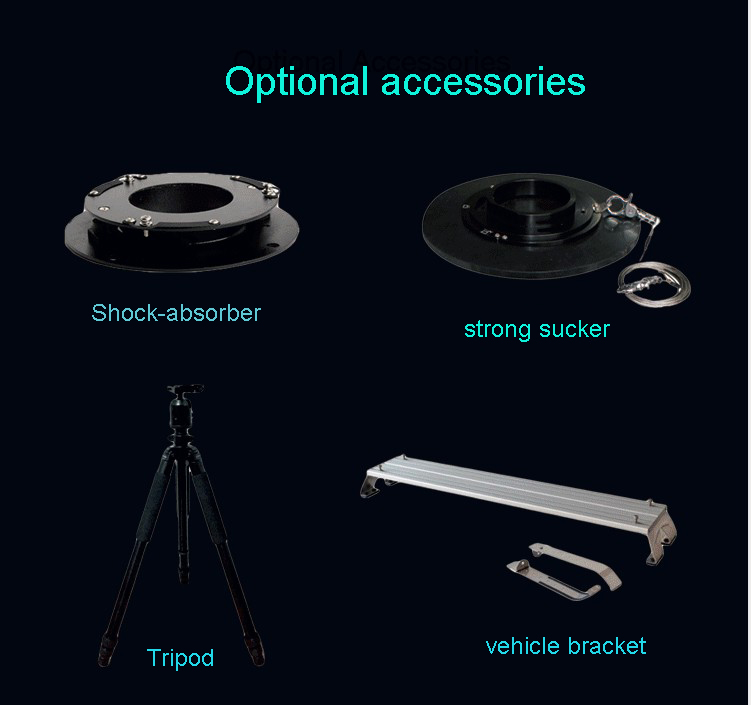

Aviation cable, Shock absorbe
Brand Name :
OKAF
Model Number :
OK-CQ50DM-20IP
Certification :
CE/FCC/ROHS
Place of Origin :
China
Camera type :
Vehicle roof mounted PTZ IP Camera
Camera housing color :
White/ black / other color customized
Waterproof :
IP66 waterproof for outdoor use
Description
Product Description

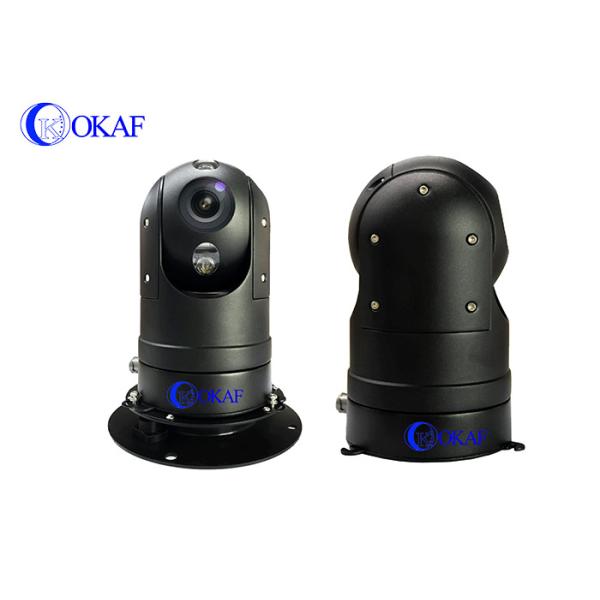

Vehicle Roof Mounted PTZ Camera High Definition 1920*1080P AHD IP SDI CCTV Security Surveillance System

The Features okaf PTZ Camera

1.Support docking with all IP/SDI/TVI/CVI/AHD and analog chip and platform

2.Standard defrosting, defogging, anti-freeze coil design; ensures normal usage under temperature mutations.

3.Supports coordinate display and angle acceptance instructions.

4.Built-in regulator module to protect the device stable and durable.

5. IR distance night vision 60 meter.

7. Built-in decoder, integrated with multiple protocols.

8. High strength almunium alloy housing, anti shocking,anti corrosion.Protection grade up to IP66.

9. Okaf vehicle PTZ cameras are anti-shake, which makes the pictures are more clear.

10. High quanlity regulator module to make device more stable and durable.

11. PTZ support real-time HI KVISION, SO NY, Sa msung, Hitachi, and other brands HD camera chipset.

12. PTZ 360°Continuously rotation.

13. Vehicle power voltage input range: DC10.5V~DC18V. DC24V could be customized. It is suitable for all kinds of vehicle, cars, trucks. etc. The camera could get power directly from vehicle.

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

The complete system of dynamic forensics system

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

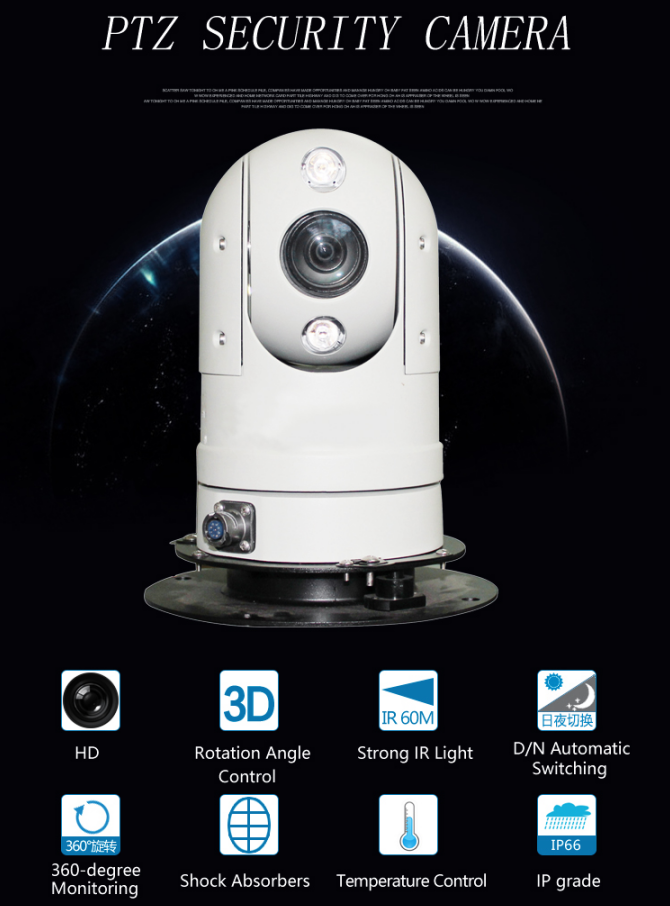

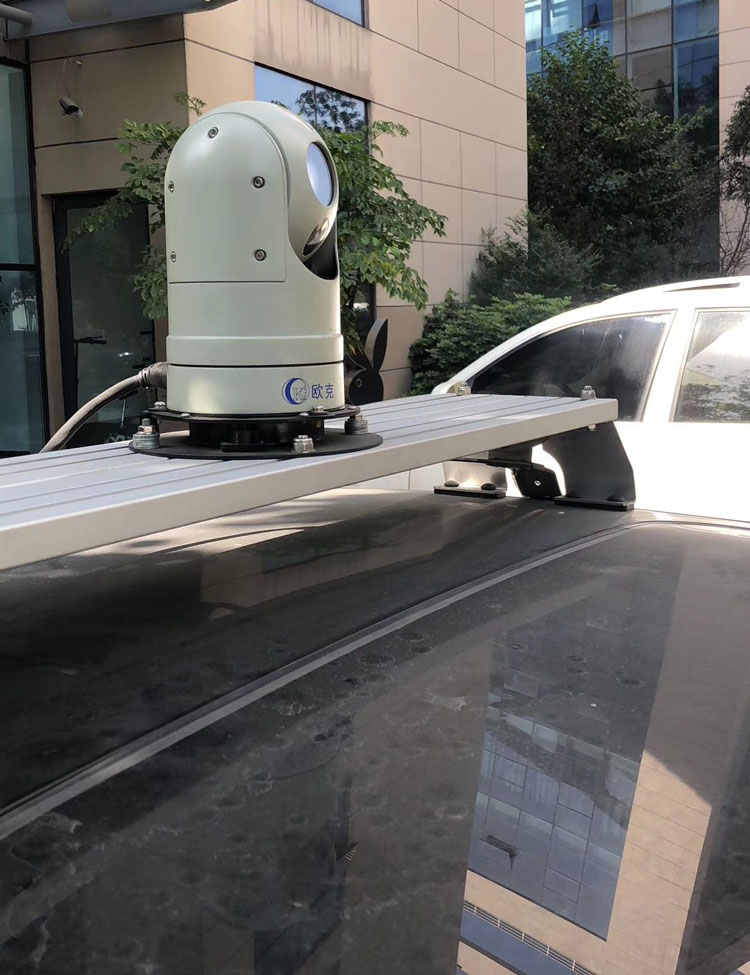

Vehicle Roof mounted PTZ Camera

• Real time video viewing both on local and remote online platform.

Anti shock design, perfect for car roof mounted.

• IP66 waterproof.

• IR Light 3*2W . Night vision up to 60m.

• Applied to dynamic forensics system.

• 2.0mp 20X optical zoom ptz camera

Vehicle Screen with Joystick

♦ Integration of 8" monitor and 4-dimensional keyboard makes it small volume, light weight and superior appearance.

♦ Used for controlling PTZ camera.

♦ 8" LCD resolution:1280*760.

♦ RS485 control output signals, convenient for controlling device near and in distance.

♦ Input signal is 1 channel VGA HD signal and 1 channel BNC analog signal.

♦ Baud rate:1200 bps~9600 bps; Protocol:Pelco_P,Pelco_D.

♦ Supply voltage:AC/DC 9V~12V; Power:25W

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera
IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

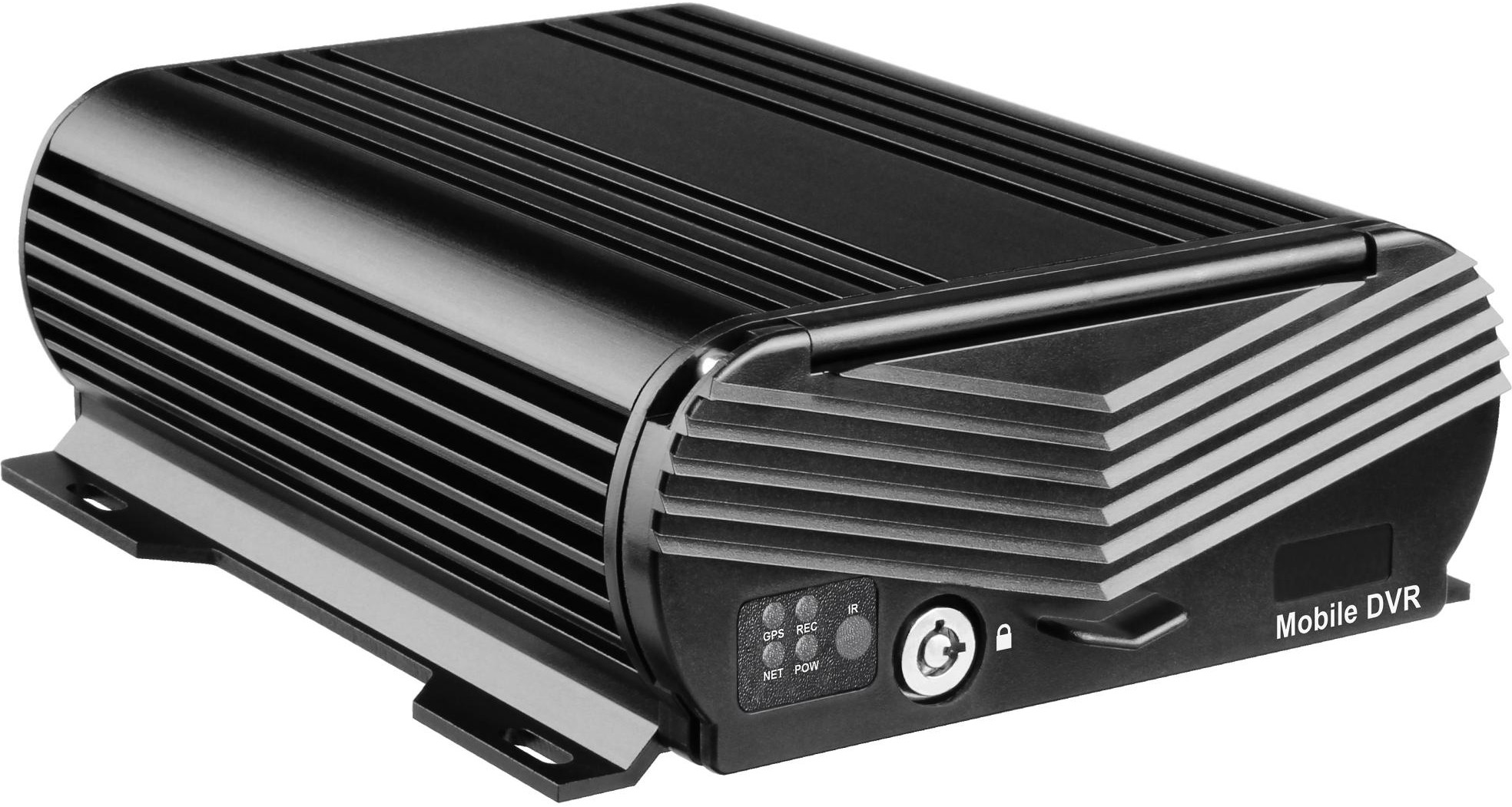

Vehicle 4 channel NVR

• Video Input: aviation connector,digital component signal access.NVR and PTZ camera connect by special aviation cable, support 1 channel 1080P IP PTZ camera input and 4 channel AHD input or analog input.

Video Output:1 channel CVBS output, 1 channel VGA output,(1 channel aviation plug).

Hard disk drive: support 1 2.5" HDD/SSD with SATA interface. The max. storage is 2T. Support 1 SD card at the same time, the max. storage is 128G.

Network port: RJ45 port / 3G/4G port
GPS Port: Built in GPS for vechile position.

Power Supply: DC 8~36V.

Dimension of OK-CQ50DM

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

How to connect Vehicle PTZ camera with NVR and screen with joystick ?

1. The aviation cable connect with the camera at this aviation port. Attention the hole must be match perfectly, then plug into.

2. Another side there are RS485 wire, video wire, RJ45 wire and power wire. The orange color wire is RS485 positive electrode, the yellow color wire is RS485 negative electrode. Video wire and RS485 wires connect with the cable of screen with keyboard.

3. Cable of screen with keyboard another side plug into the BNC port of the device. The power wire of the screen cable connect with the NVR.

4. Use the provided VGA cable connect the NVR with the screen and keyboard.

5. Get a network cable, Connect RJ45 network port with NVR network port.

6. Connect the 4G antenna, GPS antenna.

7. Connect the power supply of the NVR.

8. Connect the power supply of the camera.Red wire is positive electrode, black wire is negative electrode. Please do not reverse the positive and negative poles of the power supply.

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

Application

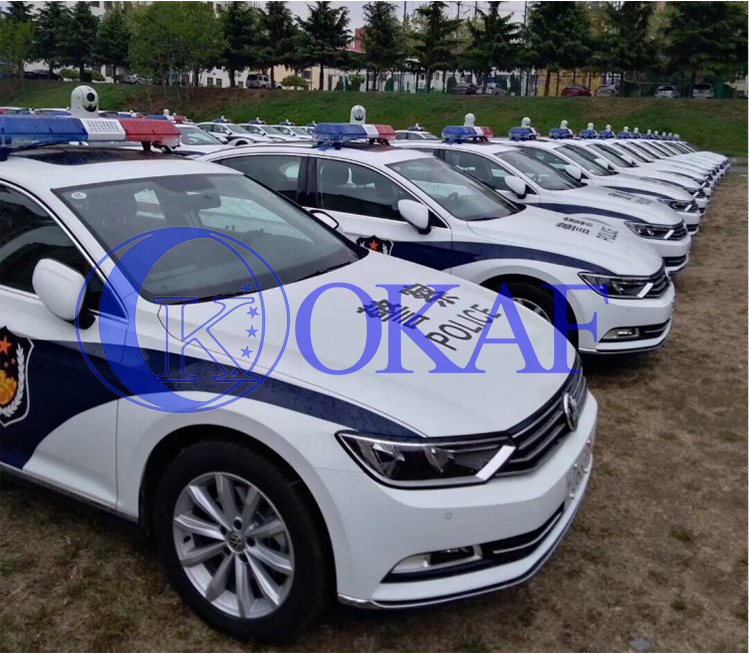

The okaf vehicle ptz camera is widely use in dynamic forensic system, road security system,and fire dynamic forensic system and so on. Our ptz cameras are anti shock, we have helped to make hundreds of projects for car roof camera.

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

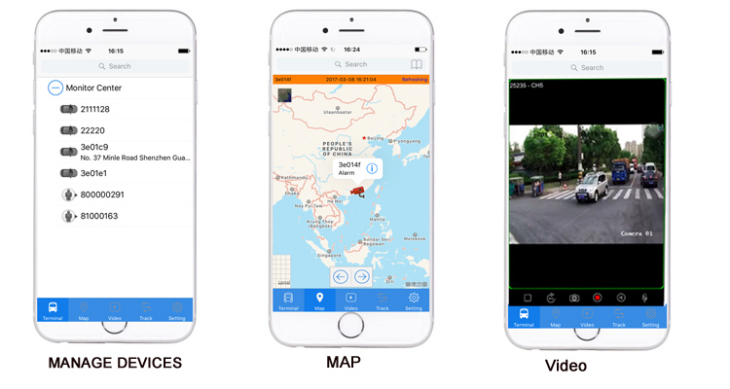

View the real time video on computer or mobile device by OKAF software.

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

Packaging & Shipping

OKAF Vehicle mounted PTZ cameras are well packed with foam to ensure it protects well during the transportation.

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

Technical data:

Model OK-CQ50DM-20IP
Signal IP network ptz camera
Pan preset Speed 100°/S(Manual control 0~100°/S)
Tilt preset Speed 60°/S (Manual control 0~60°/S)
Pan range (Horizontal) 360° continuously
Tilt range( vertical) -90°~+90°
Motor Stepping motor
Preset position 256 preset positions
Control way

RS485 control

Baud rate Baud rate from 2400Bps to 19200Bps Optional
Control protocol Pelco-D / Pelco-P
Night Vision 60 meter
Docking chipest Hikvision,Sony,Samsung,Hitachi,and other brands HD Camera chipest
Max image size 1920*1080
Video output BNC port output
Frame rate 30FPS
Dual stream Support
Sensor 1/2.8'' Exmor CMOS
Pixel 2.0 Megapixel

Minimum

illumination

0.095 Lux
NVR Compatible Stand ONVIF protocol,support secondary development
Power supply DC10.5V~DC16V(6A)
Weight 2.5 kg
IP rate IP66 waterproof

Company Information

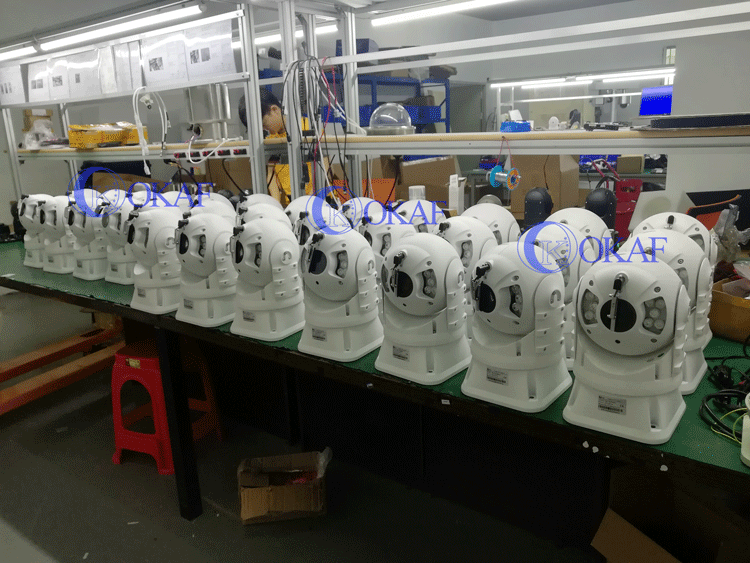

Shenzhen Okaf Technology Co., Ltd has specialized in CCTV surveillance products such as vehicle PTZ Camera, 4G deployment dome camera, telescopic mast since 2005. It is one of the most professional CCTV surveillance system developer & manufacturer in China nowadays. Our main products apply to public security departments such as: vehicle PTZ Camera, 4G deployment dome camera, vehicle mobile lifter, vehicle mobile lighting devices, dynamic forensics system, highway patrol and rescue system, fire emergency rescue system, urban management law enforcement system, mobile commanding system, operation commanding system etc.

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

IP66 F5.4 1920*1080P IP SDI PTZ CCTV Surveillance Camera

FAQ

1. Do you accept the sample order?

Sure. Sample order is welcome.

2.Is there any warranty for your products?

Yes, we provide 1 year warranty for the ptz cameras. If any quality issue during the warranty, we will be responsible for it.

3.Do you accept OEM/ODM ?

Yes, OEM or ODM manufacturing are welcome , highly welcome to communicate with us. we can provide guaranteed products and competitive prices.

4. How to order ?

Once the order confirm, we will send you PI. You could pay by TT, Western union, Paypal, Trade Assurance. We will arrange production and shipment after get the payment.
