Specifications
Model Number :
OK-DD06SJ-SQ
Material :
Galvanized steel
MOQ :
1
Delivery Time :
10-15 working days
Maximum diameter :
120x120mm square tube
Mast lifting :
Wired and wireless remote control
Payment Terms :
T/T
No of section :
5 sections
Price :
Negociate
Minimum diameter :
50mm round tube
Certification :
CE
Extended height :
6m
Supply Ability :
200 units / month
Maximum top payload weight :
50KG
Brand Name :
Okaf
Product name :
Custom Height DC Powered Motorized Telescopic Mast Vehicle Trailer Robot Mounted Square Electric Telescopic Mast
Place of Origin :
China
Retracted height :
1.8m
Packaging Details :
Wood box
Wind speed :
19m/s
Description
PRODUCT OVERVIEW
Custom Height DC Powered Motorized Telescopic Mast Vehicle Trailer Robot Mounted Square Electric Telescopic Mast

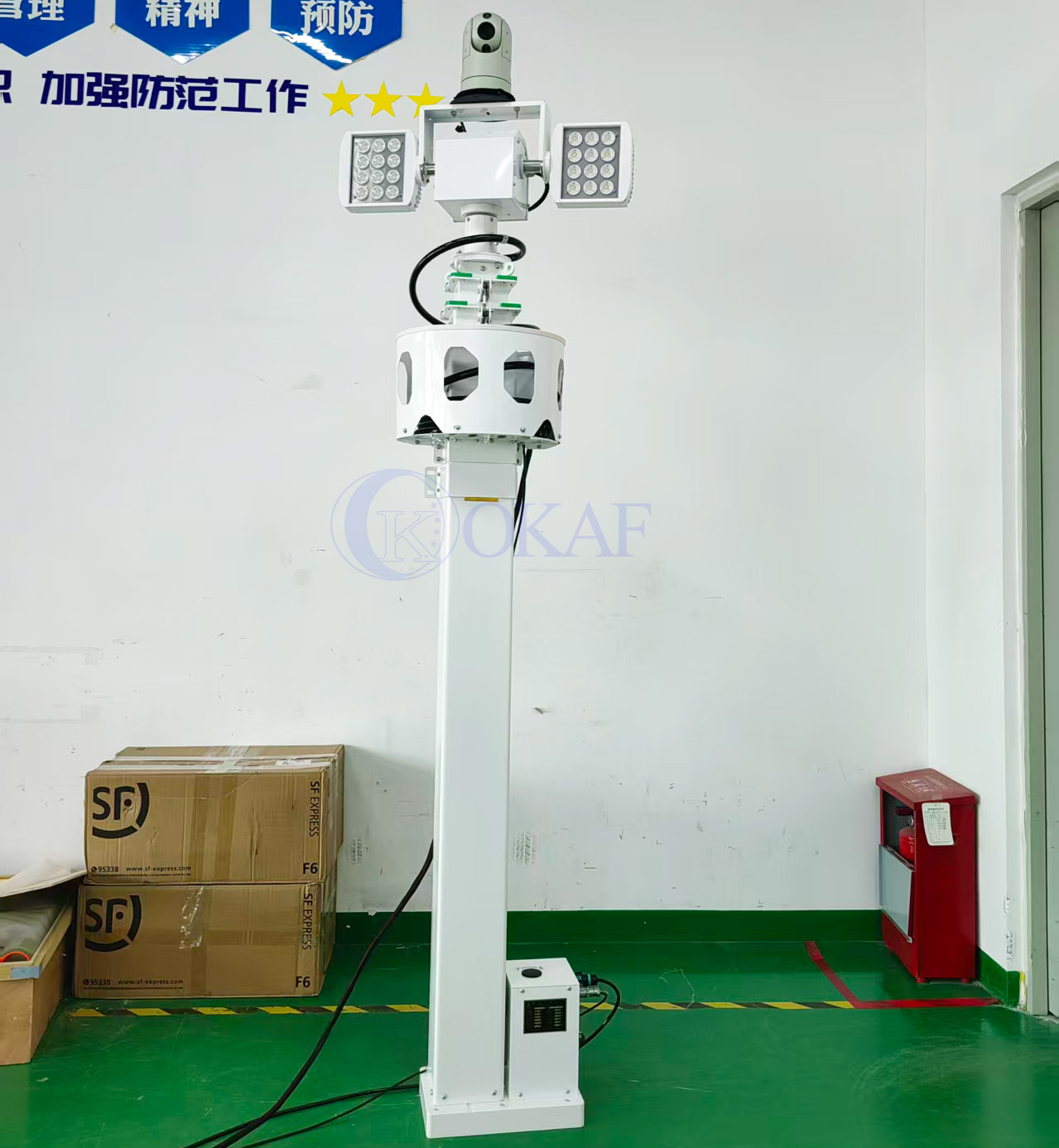

Square Electric Telescopic Mast

Telescopic mast is a rack height equipment carrier, suitable for car, ship and land. It can elevate communications antenna, illumination, lightning shielding, optical transmission and camera equipment to a predetermined height quickly, reliably and securely. After the work is completed, it is also able to reduce the above-mentioned equipment to a predetermined height quickly, reliably and safely. OKAF square telescopic mast is made of steel, with the advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance, stable and so on. It could meet different areas, different occasions on the height and load requirements, in addition, it is also widely used in golf, large football night lighting, etc. The portable and reliable telescoping masts can be mounted on trailer or vehicle. Electric motor driven telescopic masts with locking collars could keep the equipment at a fixed height for a long time even without air pressure.
Custom Height DC Powered Motorized Telescopic Mast Vehicle Trailer Robot Mounted Square Electric Telescopic Mast
Custom Height DC Powered Motorized Telescopic Mast Vehicle Trailer Robot Mounted Square Electric Telescopic Mast
APPLICATIONS

Applications of telescopic mast

1.Radio installation Surveying
2. Temporary communications.
3. Emergency services (Light tower for fire fighting rescue)
4. Mobile surveillance ( PTZ camera for law forensics)
5. Semi-permanent Installations for outdoor Events(patrol surveillance)
6. Construction site surveillance(construction sites monitoring)
7.Anti drone antennas.
Custom Height DC Powered Motorized Telescopic Mast Vehicle Trailer Robot Mounted Square Electric Telescopic Mast
Custom Height DC Powered Motorized Telescopic Mast Vehicle Trailer Robot Mounted Square Electric Telescopic MastCustom Height DC Powered Motorized Telescopic Mast Vehicle Trailer Robot Mounted Square Electric Telescopic Mast
TECHNICAL DATA
Model
OK-DD06SJ-SQ
Material
Steel
Extended height
6 m
Retracted height
1.8 m
Base tube size
120 x 120 mm
Fourth tube size
100 x 100 mm
Third tube size
80x80mm
Second tube size
60x60mm
Top tube size
50mm round tube
Maximum top payload
50kg
Wind power
Level 8/ or 19m /SEC
Number of sections
5
Power supply
DC12V
Installation
Vehicle/ Trailer / mounted
Low temperature storage
-55℃
Low temperature work
-20℃
High temperature storage
70℃
High temperature work
55℃
Humidity
Relative humidity 90%(temperature 25°)
Rain
6mm/min continuous 1h
Rated load
Lifting ≤120N
Lifting speed
Average speed 4m/min
Safety
Self-locking at any height
Accessories
Guy wires, ground anchors
