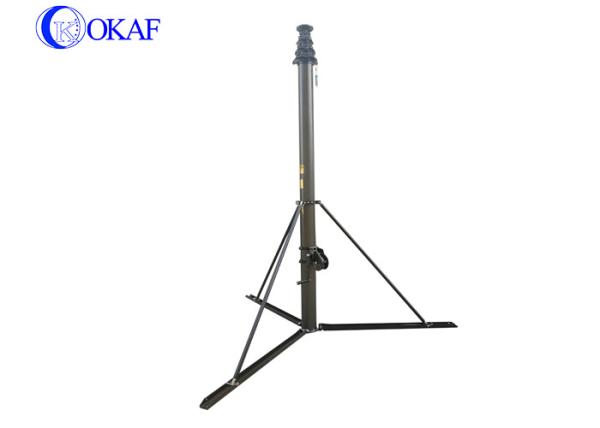

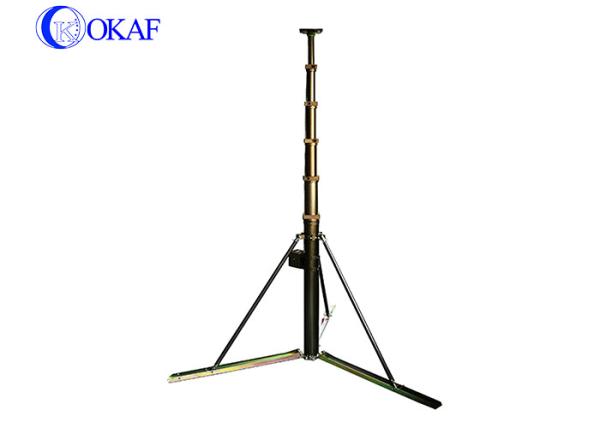

49ft Extend Height Hand Winch Telescopic Camera Mast 18m 20m
49ft Extend Height Hand Winch Telescopic Camera Mast 18m 20m
49ft Extend Height Hand Winch Telescopic Camera Mast 18m 20m
49ft Extend Height Hand Winch Telescopic Camera Mast 18m 20m
Specifications
Brand Name :
OKAF
Model Number :
OK-SD15SJ
Certification :
CE ROHS FCC
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram,paypal, D/P, D/A, L/C
Supply Ability :
2000/month
Delivery Time :
5~7 working days
Packaging Details :
Standard export wood box
Product name :
Hand Winch Telescopic Mast CCTV Camera Pole 6m 8m 10m 12m 15m 18m 20m
Material :
Aluminum alloy
Extend height :
15m( 49ft)
Retracted height :
2.5m (8.2ft)
Top payload weight :
10kg ( 22 lbs)
Max diameter :
132mm
Min diameter :
40mm
Mast weight :
65kg (143 lbs)
Description

Hand Winch Telescopic Mast CCTV Camera Pole 6m 8m 10m 12m 15m 18m 20m

Specification

Okaf manual telescopic mast antenna mast lifter is also a rack height equipment carrier, suitable for car, ship and land. It can elevate communications antenna, illumination, lightning shielding, optical transmission and camera equipment to a predetermined height quickly, reliably and securely. After the work is completed, it is also able to reduce the above-mentioned equipment to a predetermined height quickly, reliably and safely. Our company's manual antenna mast lifter is made of high-strength aluminum alloy, with the advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance, stable and so on. It could meet different areas, different occasions on the height and load requirements, in addition, it is also widely used in golf, large football night lighting, etc.

Manual Telescopic Masts dont need power supply or any other air compressor.It only need an attached hand crank. What's more, the antenna mast is very easy to operate, just 2 people can handle the mast pole very well. Our hand crank aluminum telescopic mast pole is ideal for PTZ CCTV Camera, Securiry Camera, Ham Radio, Antennas, Telecommunication Mobile Equipment, Emergency LED Lights etc. It is helpful for police dynamic forensic system, patrol and rescue system, fire emergency rescue system and so on.

Applications

♦ Radio installation Surveying

♦ Temporary communications.

♦ Emergency services (Light tower for fire fighting rescue)

♦ Mobile surveillance ( PTZ camera for law forensics)

♦ Semi-permanent Installations for outdoor Events(Military or patrol surveillance)

♦ Construction site surveillance(construction sites monitoring)

♦ Wifi antennas.

♦ Mobile solar trailer & mobile light tower.

Technical data

Model Height Extended Contractile height

Number of

Tubes

Maximum

diameter

 Wind power Torsion precision

Max

payload
OK-SD03SJ 3M 1200mm 3(1060-200) 80mm Level 8/19m/SEC ≤±2º 30KG
OK-SD04SJ 4M 1300mm 4(1140-220) 80mm Level 8/19m/SEC ≤±2º 30KG
OK-SD05SJ 5M 1500mm 4(1340-220) 80mm Level 8/19m/SEC ≤±2º 25KG
OK-SD05BSJ 5M 1200mm 6(970-220) 106mm Level 8/19m/SEC ≤±2º 20KG
OK-SD06SJ 6M 1400mm 6(1160-230) 106mm Level 8/19m/SEC ≤±2º 20KG
OK-SD08SJ 8M 1700mm 6(1460-240) 106mm Level 8/19m/SEC ≤±2º 20KG
OK-SD10SJ 10M 2100mm 6(1860-270) 106mm Level 8/19m/SEC ≤±2º 15KG
OK-SD10BSJ 10M 1800mm 8(1500-280) 132mm Level 8/19m/SEC ≤±2º 15KG
OK-SD12SJ 12M 2100mm 8(1780-340) 132mm Level 8/19m/SEC ≤±2º 10KG
OK-SD15SJ 15M 2500mm 8(2180-400) 132mm Level 8/19m/SEC ≤±2º 10KG
OK-SD16SJ 16M 2700MM 8(2180-400) 132mm Level 8/19m/SEC ≤±2º 5kg
OK-SD18SJ 18M 2900mm 8(2580-450) 160mm Level 8/19m/SEC ≤±2º 5KG
OK-SD20SJ 20M 3100mm 8(2390-450) 160mm Level 8/19m/SEC ≤±2º 5KG
