Specifications
Color :
Amber
Highlight :
70um Industrial Grade high temperature kapton tape, 65um high temperature kapton tape, 75um high temp kapton tape
Place of Origin :
Dongguan China
Feature :
Heat Resistant
Packaging Details :
Standard Package
Brand Name :
HB
Certification :
ISO 9001:2015
Payment Terms :
L/C,T/T,Western Union
Thickness :
70μm±5μm
Size :
As To Your Requirements
Supply Ability :
10000rolls/week
Model Number :
HB-AKT70
Name :
Kapton PI Tape
MOQ :
100rolls
Price :
Negotiable
Delivery Time :
7-10work days
Use :
Masking,Protection
Description
Industrial Grade Heat Resistant Kapton PI Tape Premium Polyimide Insulation Tape
Description

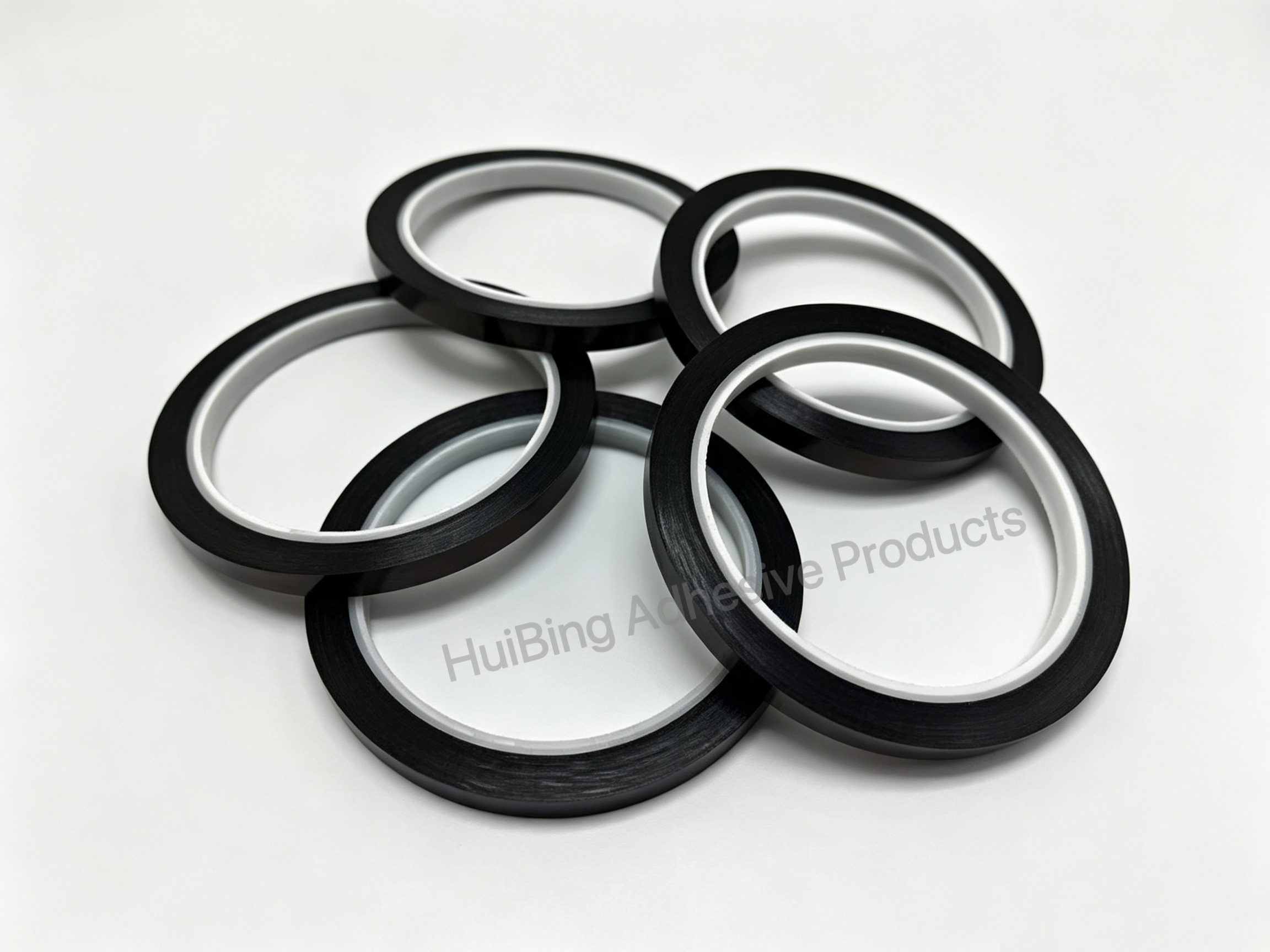

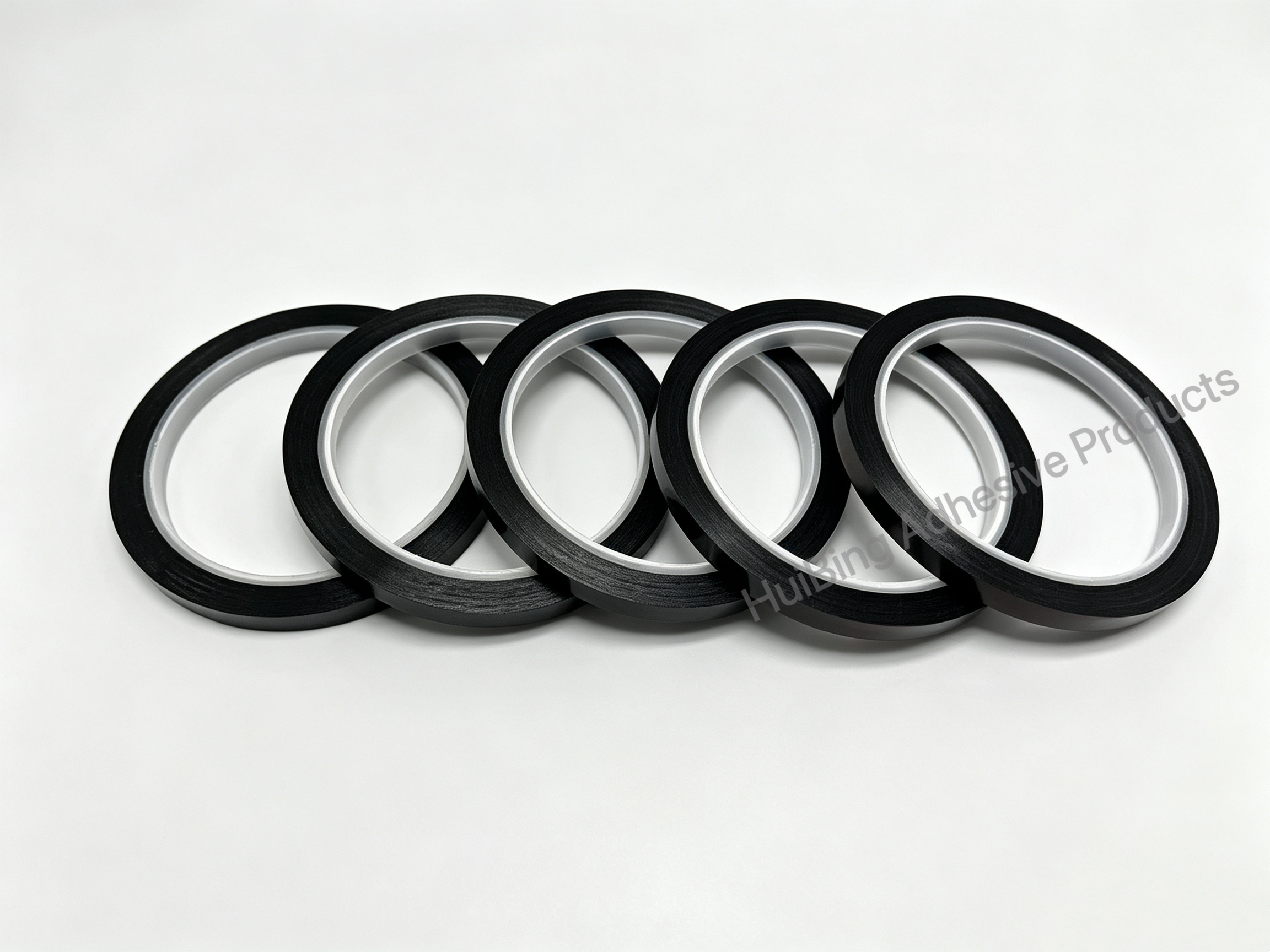

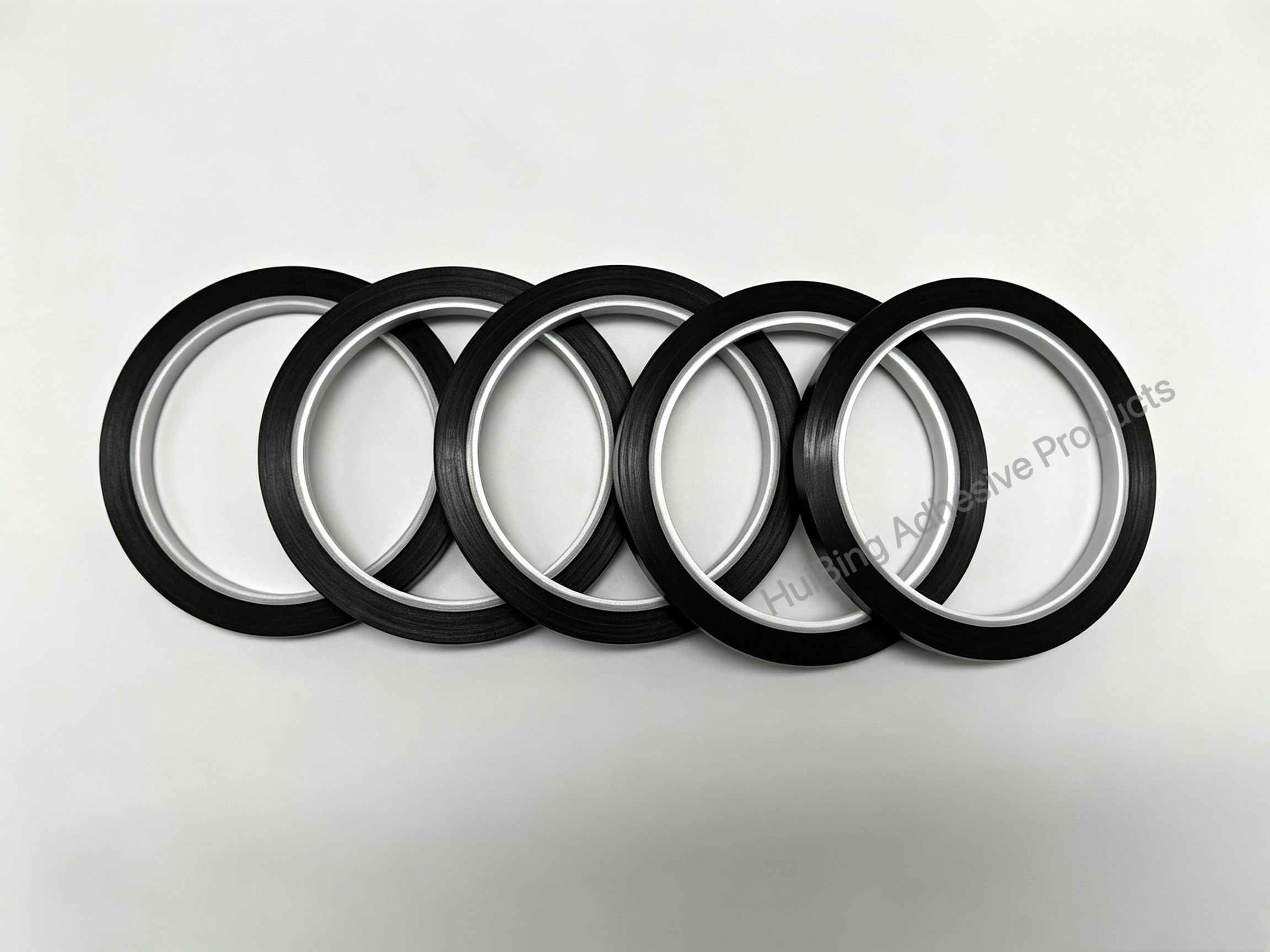

HB-AKT70 is a 70µm high-temperature gold finger tape with a polyimide (PI/KAPTON) backing and silicone adhesive. It offers excellent heat resistance, strong adhesion, and reusability, ideal for insulation and protection in electronics and battery applications.

Applications
  • Insulation and wrapping of electromagnetic wires and cables
  • Motor coil insulation and high-temperature protection
  • Mobile phone lithium battery cell wrapping and insulation
  • High-temperature soldering and reflow process masking
  • Protection of electronic components during wave soldering
  • Insulation and heat dissipation in power electronic devices
Physical Parameters
Item Specification Standard
Total Thickness 70±5µm GB/T7125-2014
Dry Coating Thickness 20±5µm GB/T7125-2014
Adhesion Strength 400-600g/25mm (180°) GB-T2792-2014
Temperature Resistance 260°C for 30 minutes Oven test
Backing Material Polyimide (PI/KAPTON) Visual & Physical Test
Industrial Grade Heat Resistant Kapton Tape 70μm Thickness Reusable Polyimide Insulation Tape
Company Introduction

Dongguan Huibing Adhesive products Co., Ltd. is a professional adhesive products manufacturer located in Dongguan City, China, focusing on the sales and export of various adhesive tape products.

We mainly supply all kinds of tapes, including clear packing tape, colored tape, double-sided tape, masking tape, printed logo tape, carton sealing tape and industrial adhesive tapes. Our products are widely used in logistics packaging, electronic industry, daily household use, industrial fixing and construction fields.

We insist on stable quality, competitive price, fast delivery and good after-sales service. We support stock supply and customized sizes, thickness, viscosity and logo printing services.With reliable product quality and mature supply chain system, our products are exported to many countries around the world and have won high recognition from global customers.

We sincerely welcome customers from all over the world to establish long-term and stable cooperative partnerships.

FAQ
  1. What is the long-term and short-term heat resistance?

    Short-term to 300℃, long-term to 260℃.

  2. What colors are available?

    Amber (golden) and black.

  3. Can you provide anti-static and flame-retardant versions?

    Yes, both are available.

  4. Is this tape residue-free after peeling?

    Yes, it’s re-peelable and leaves no residue.

  5. What widths can you supply?

    Standard 500mm, customizable 640mm and 1000mm.

  6. What are the main applications?

    PCB/SMT protection, motor insulation, coil wrapping, battery bundling, etc.
