Table Top Series CO2 Laser Wood Engraving Machine for Paper Marking
Table Top Series CO2 Laser Wood Engraving Machine for Paper Marking
Specifications
Price :
US $6,000-8,000 / P
Laser Classification :
Gaseous Laser
Production Capacity :
100000
Cooling System :
Air Cooling
Type :
CO2 Laser Marking Machine
Laser Source :
Coherent From USA
Origin :
China Beijing
Specification :
1000*880*380mm
HS Code :
84798190
Trademark :
HBS Laser
MOQ :
1 Piece
Model NO. :
HBS-CO2-30
Marking Method :
Scanning Marking
Technical Class :
Pulse Laser
Laser Wavelength :
CO2 Laser
Transport Package :
Cartons
Description

Table Top Series CO2 Laser Wood Engraving Machine for Paper Marking


HBS-CO2-30 fiber laser marking machine for plastic, rubber, paper, wood marking

Laser Wavelength 1060nm Beam Quality <1.5
Laser Repetition ≤70KHz Standard Marking Area 300mm x 300mm
Making Depth ≤2mm (Adjustable) Marking Speed ≤7000mm/s
Min. Line Width 0.03mm Min. Character Size 0.3mm
Repetition Precision ±0.001mm Power Consumption ≤1.2kw
Cooling method Air cooled Power Supply 220V/50Hz/10A
Optional Lens
Lens Type HBS-65 HBS-110 HBS-175
Focal Length 100mm 170mm 250mm
Marking Area 65mm*65mm 110mm*110mm 175mm*175mm
Note: Without special request, HBS will fix our standard lens with Model: HBS-110

Table Top Series CO2 Laser Wood Engraving Machine for Paper Marking

Product Introduction

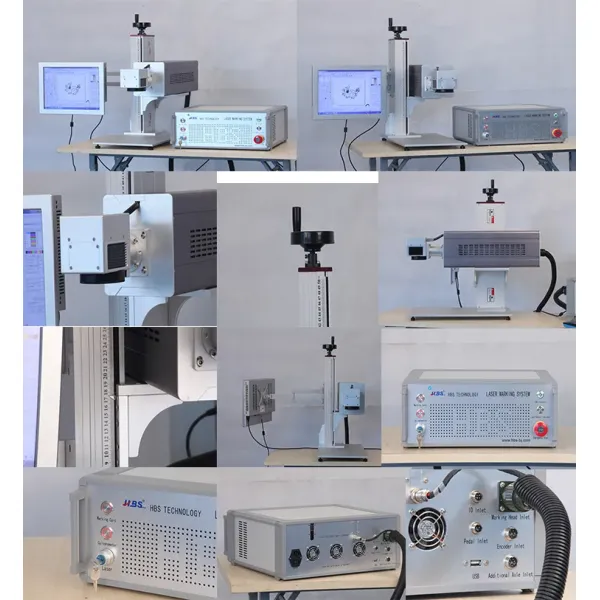

  • HBS CO2 Laser Marking Machine is specially designed for non-metallic materials marking. It is equipped with the original imported American CO2 laser and high-speed galvanometer with unique fully sealed cavity construction.
  • The working principle: fill the discharge tube with CO2 gas as a lasing medium, when high voltage is applied to the electrodes, radiant discharge is generated in the discharge tube, causing the gas molecules to release the laser. After amplification, the laser beam is released for material processing. With computer controlling the galvanometer, the laser beam is adjusted for automatic marking.Table Top Series CO2 Laser Wood Engraving Machine for Paper Marking
Product Features
  • High-precision marking, high speed operation, control marking depth freely.
  • No pollution, no consumables.
  • Marking software runs on WINDOWS XP platform, English or Chinese interface, compatible software such as AUTOCAD, CORELDRAW, PHOTO-SHOP and various formats such as PLT, PCW, DXF, BMP etc. It can also directly access to SHX, TTF fonts library and able to work freely on graphic design.
Product Application
  • Mainly used in non-metallic industry including tobacco, food and beverage, wine, pharmaceutical packaging, leather, plastics, polymers, wooden products, jade, agate and other non-metallic materials.


  • Table Top Series CO2 Laser Wood Engraving Machine for Paper Marking
Trade Shows
  • HBS take part in more than 20 trade shows of both China and abroaTable Top Series CO2 Laser Wood Engraving Machine for Paper Marking
