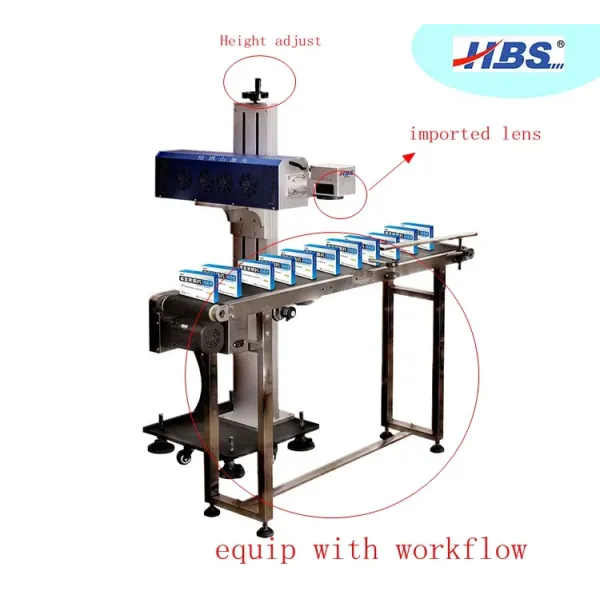

30W CO2 Laser Marking Machine for Wood Marking
30W CO2 Laser Marking Machine for Wood Marking
30W CO2 Laser Marking Machine for Wood Marking
30W CO2 Laser Marking Machine for Wood Marking
30W CO2 Laser Marking Machine for Wood Marking
30W CO2 Laser Marking Machine for Wood Marking
30W CO2 Laser Marking Machine for Wood Marking
30W CO2 Laser Marking Machine for Wood Marking
30W CO2 Laser Marking Machine for Wood Marking
30W CO2 Laser Marking Machine for Wood Marking
30W CO2 Laser Marking Machine for Wood Marking
30W CO2 Laser Marking Machine for Wood Marking
Specifications
Laser Classification :
Gaseous Laser
Cooling System :
Air Cooling
Model NO. :
HBS-CO2-30
Technical Class :
Pulse Laser
Using Method :
CNC Control
HS Code :
8456110090
MOQ :
1 Piece
Laser Wavelength :
CO2 Laser
Specification :
1000*880*380mm
Origin :
China Beijing
Laser Source :
Coherent From USA
Price :
US $3,999-8,999 / P
Marking Method :
Scanning Marking
Trademark :
HBS Laser
Power :
30W
Production Capacity :
100000
Type :
CO2 Laser Marking Machine
Transport Package :
Cartons
Description

30W CO2 Laser Marking Machine for Plastic/Wood/Rubber/Leather Marking

30W CO2 Laser Marking Machine for Wood Marking

HBS-CO2-30 fiber laser marking machine for plastic, rubber, paper, wood marking

Laser Wavelength 1060nm Beam Quality <1.5
Laser Repetition ≤70KHz Standard Marking Area 300mm x 300mm
Making Depth ≤2mm (Adjustable) Marking Speed ≤7000mm/s
Min. Line Width 0.03mm Min. Character Size 0.3mm
Repetition Precision ±0.001mm  Power Consumption ≤1.2kw
Cooling method Air cooled Power Supply 220V/50Hz/10A

Optional Lens

Lens Type HBS-65 HBS-110 HBS-175
Focal Length 100mm 170mm 250mm
Marking Area 65mm*65mm 110mm*110mm 175mm*175mm
Note: Without special request, HBS will fix our standard lens with Model: HBS-110

30W CO2 Laser Marking Machine for Wood Marking

Product Introduction

  • HBS CO2 Laser Marking Machine is specially designed for non-metallic materials marking. It is equipped with the original imported American CO2 laser and high-speed galvanometer with unique fully sealed cavity construction.
  • The working principle: fill the discharge tube with CO2 gas as a lasing medium, when high voltage is applied to the electrodes, radiant discharge is generated in the discharge tube, causing the gas molecules to release the laser. After amplification, the laser beam is released for material processing. With computer controlling the galvanometer, the laser beam is adjusted for automatic marking.

30W CO2 Laser Marking Machine for Wood Marking

Product Features

  • High-precision marking, high speed operation, control marking depth freely.
  • No pollution, no consumables.
  • Marking software runs on WINDOWS XP platform, English or Chinese interface, compatible software such as AUTOCAD, CORELDRAW, PHOTO-SHOP and various formats such as PLT, PCW, DXF, BMP etc. It can also directly access to SHX, TTF fonts library and able to work freely on graphic design.

Product Application

  • Mainly used in non-metallic industry including tobacco, food and beverage, wine, pharmaceutical packaging, leather, plastics, polymers, wooden products, jade, agate and other non-metallic materials.

30W CO2 Laser Marking Machine for Wood Marking

30W CO2 Laser Marking Machine for Wood Marking
