Specifications
Laser Type :
CO2 Laser
Model NO. :
HBS-CO2-20
Control Software :
Ezcad
Trademark :
HBS
MOQ :
1 Piece
Working Accuracy :
0.01
Graphic Format :
Ai, BMP, Dxf, Dxp, Las, Plt
Power :
20W, 30W, 50W
Laser Source :
Raycus
Price :
US $5,500-12,000 /
Marking Method :
Scanning Marking
Origin :
Beijing
Marking Depth :
0-0.5mm (According)
Certification :
CCC, Ce, ISO, SGS
Technical Class :
Continuous Wave Laser
Marking Speed :
0-7000mm/S
Laser Wavelength :
CO2 Laser
Laser Classification :
Gaseous Laser
Condition :
New
Type :
Optical Fiber Laser Marking Machine
Production Capacity :
50000 Pieces/Year
Transport Package :
Cartons
Specification :
1000*880*380mm
HS Code :
8456301090
Cooling System :
Air Cooling
Description

CO2 Laser Marking Machine Marking for non-Metals

2 years guarantee and life-time after sales service

1. Introduction

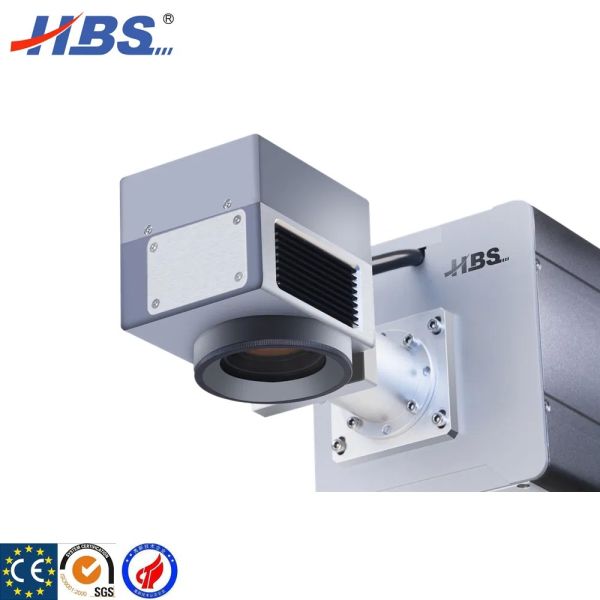

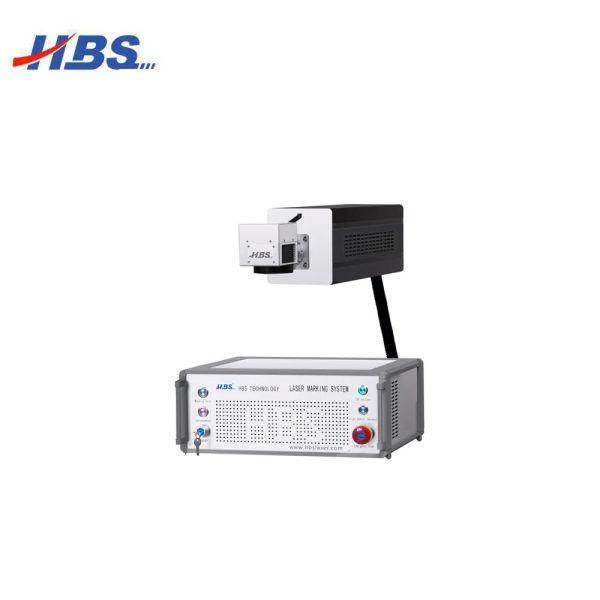

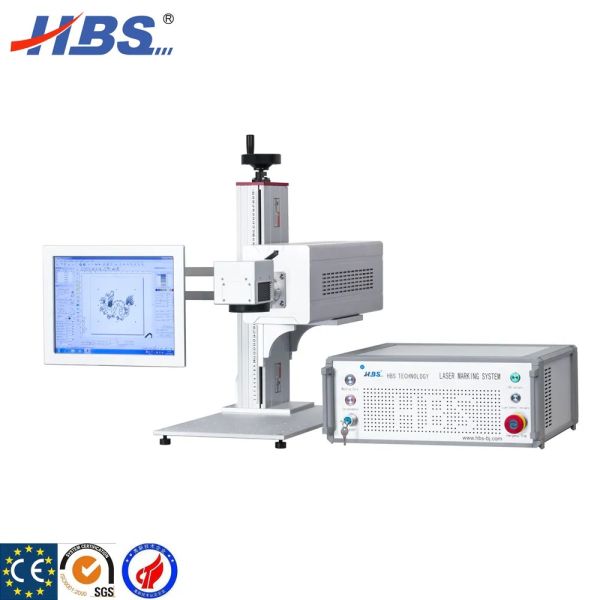

  • HBS CO2 Laser Marking Machine is specially designed for non-metallic materials marking. It is equipped with the original imported American CO2 laser and high-speed galvanometer with unique fully sealed cavity construction.
  • The working principle: fill the discharge tube with CO2 gas as a lasing medium, when the high voltage is applied to the electrodes, radiant discharge is generated in the discharge tube, causing the gas molecules to release the laser. After amplification, the laser beam is released for material processing. With the computer controlling the galvanometer, the laser beam is adjusted for automatic marking.

2. Technical Parameters

Laser Wavelength 1060nm Beam Quality <1.5
Laser Repetition ≤70KHz Standard Marking Area 300mm x 300mm
Making Depth ≤2mm (Adjustable) Marking Speed ≤7000mm/s
Min. Line Width 0.03mm Min. Character Size 0.3mm
Repetition Precision ±0.001mm Power Consumption ≤1.2kw
Cooling method Air cooled Power Supply 220V/50Hz/10A

Optional Lens

Lens Type HBS-65 HBS-110 HBS-175
Focal Length 100mm 170mm 250mm
Marking Area 65mm*65mm 110mm*110mm 175mm*175mm
Note: Without special request, HBS will fix our standard lens with Model: HBS-110

3.Products Features

  • High-precision marking, high-speed operation, control marking depth freely.
  • No pollution, no consumables.
  • Marking software runs on WINDOWS XP platform, English or Chinese interface, compatible software such as AUTOCAD, CORELDRAW, PHOTO-SHOP and various formats such as PLT, PCW, DXF, BMP etc. It can also directly access to SHX, TTF fonts library and able to work freely on graphic design.

4.Product Application:

Mainly used in non-metallic industry including tobacco, food and beverage, wine, pharmaceutical packaging, leather, plastics, polymers, wooden products, jade, agate and other non-metallic materials.

5. Marking samples of Laser Marking

CO2 Laser Engraving Machine Table Design Laser Marking Machine

CO2 Laser Engraving Machine Table Design Laser Marking Machine

CO2 Laser Engraving Machine Table Design Laser Marking Machine

6. Our Company

CO2 Laser Engraving Machine Table Design Laser Marking Machine

CO2 Laser Engraving Machine Table Design Laser Marking Machine

CO2 Laser Engraving Machine Table Design Laser Marking Machine
