Specifications
Control Type :
Automatic
Production Capacity :
300 PCS Per Month
Model NO. :
HBS-LC-1000
Laser Wavelength :
1064nm
Scan Width :
10-80mm
HS Code :
8456110090
Laser Power :
20W/30W/50W/100W/200W/500W/1000W
Transport Package :
Plywood
Origin :
China
Use :
Rust/Paint/Oxidation Removal
Cooling Method :
Air Cooling
MOQ :
1 Piece
Price :
US $6,599-8,599 / P
Trademark :
HBS
Laser Source :
Fiber Laser
Specification :
600*1000*1000mm
Warranty :
3 Years
Product Name :
100W 200W 500W Metal Oil Paint Rust Remover Laser
Working Temperature :
Working Temperature
Description

Portable Handheld Metal Rust Removal Fiber Laser Cleaning machine with 1000W 1500W 2000W laser source for Rust Paint

Portable Oil Painting Rust Removal Fiber Laser Erasering Machine

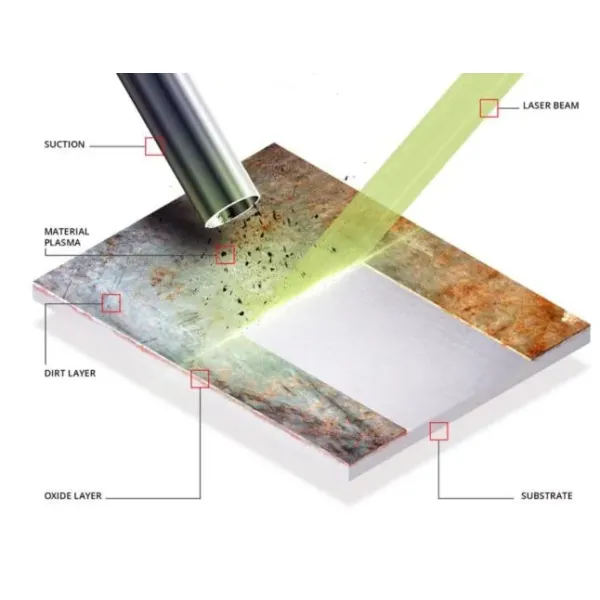

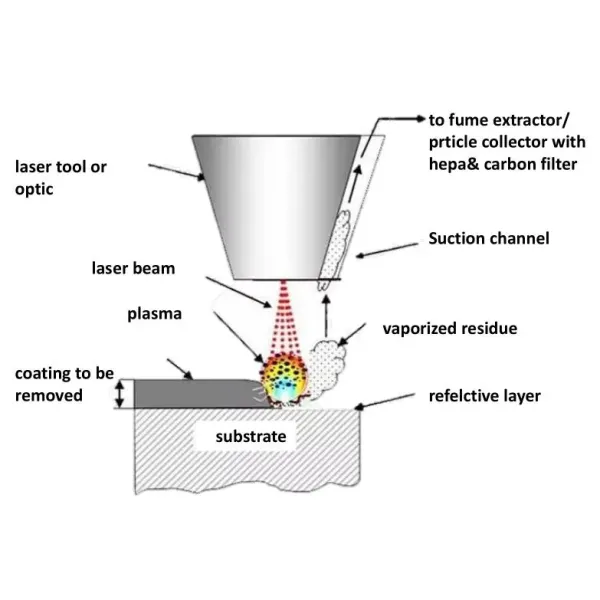

Introduction laser cleaning technologies

Laser cleaning is the new technology; it's the removal of contaminants or impurities on the surface of materials by physically removing the upper layer of the substrate by using laser irradiation.

Portable Oil Painting Rust Removal Fiber Laser Erasering Machine
Portable Oil Painting Rust Removal Fiber Laser Erasering Machine

Applications of laser cleaning machines

  • Metal surface rust removal and cleaning.
  • Paint removal & cleaning.
  • Oil stain, contaminant cleaning.
  • Coating surface cleaning.
  • Welding/coating surface pre-treatment.
  • Stone figure surface dust & attachment cleaning.
  • Plastic mould residues removal & cleaning.
Portable Oil Painting Rust Removal Fiber Laser Erasering Machine

Features and Advantages of Herolaser laser cleaning machine

Portable Oil Painting Rust Removal Fiber Laser Erasering Machine
  • Non-contact cleaning, good cleaning performance on workpiece.
  • Precision positioning, selecting cleaning, desired cleaning area can be applied to the workpiece.
  • No need chemical detergent, no consumables. Safe &environmental friendly technology.
  • Easy to operate, either portable or installed with robot for automatic cleaning.
  • High cleaning efficiency, time-saving.
  • Stable laser cleaning system, free maintenance.

main parameters

Items Parameters







Note: This parameter is for some models, the data of special models may be slightly different please refer to the actual model purchased.
Laser power (W) 1000 1500 2000
Model code ML-QF-LD-SC-HW1000 ML-QF-LD-SC-HW1500 ML-QF-LD-SC-HW2000
Laser type/ wavelength (nm) Fiber laser/1064
Laser frequency(KHz) 10000~50000
Duty Cycle (%) Scan Speed 1~100
Cooling way Water cooled(18~25ºC)
Cooling water Deionized water / distilled water / purified water
Temperature of water (ºC) 18~23
Cabinet Size (mm) 1100x743x1238
Weight (kg) 220~235
Total consumption (W) 4300 5800 7300
Depth of focus (mm) 5
Length of fiber cable(m) 10 (customized)
Scanning width (mm) 0~150
Auxiliary gas Compressed air/nitrogen (Requires oil and water filtration)
Gas pressure (MPa) 0.5-0.8
working environment temperature (ºC) 5~40
Weight of scanning head (kg) 0.76 (not included fiber output connector)
Portable Oil Painting Rust Removal Fiber Laser Erasering Machine

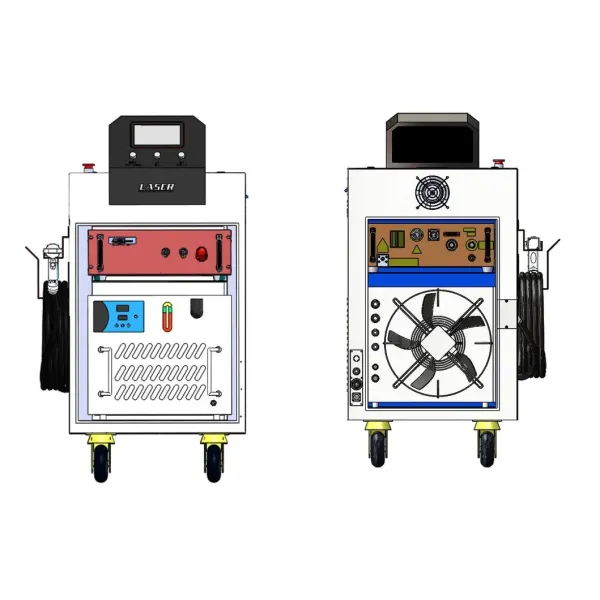

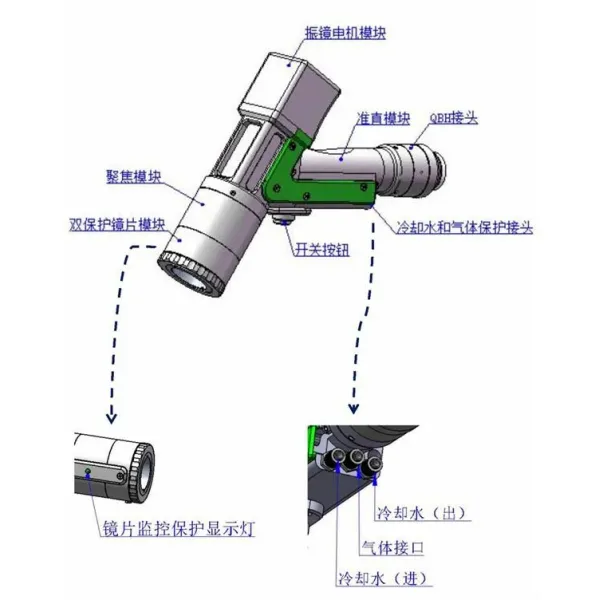

(External structure diagram of Laser Cleaning System)

Portable Oil Painting Rust Removal Fiber Laser Erasering Machine

Cleaning samples for reference

Portable Oil Painting Rust Removal Fiber Laser Erasering Machine
