Specifications
Laser Visibility :
Visible
Model NO. :
HBS-GQ-3D-30
Technical Class :
Continuous Wave Laser
Transport Package :
Carton
Type :
YAG Laser Marking Machine
Origin :
China
MOQ :
1 Set
Price :
US $3,000-6,000 / S
Marking Method :
Scanning Marking
Trademark :
HBS Laser
Production Capacity :
100000PCS
Laser Wavelength :
Fiber Laser
HS Code :
84798190
Applicable Material :
Metal
Cooling System :
Air Cooling
Specification :
82cmx72cmx98.5cm
Description

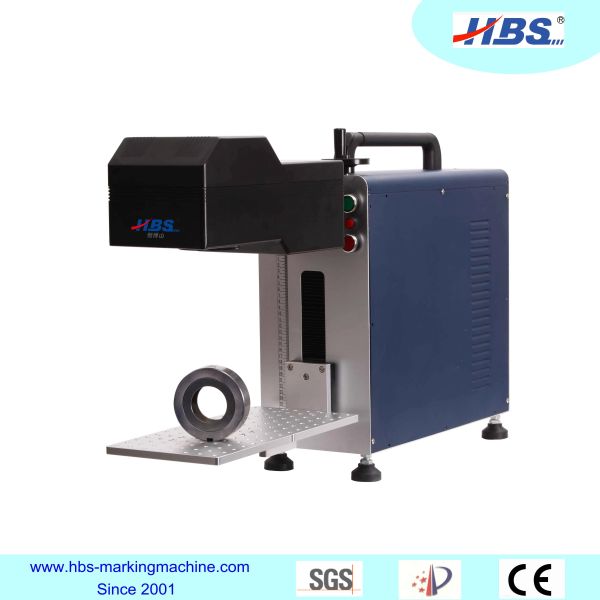

HBS 3D Fiber Laser Marking Machine/fiber laser marking machine for curve surface
Metal HBS 3D Fiber Laser Engraving Machine For Curve Surface Air Cooling
Side slope signal less than 1ms
Position Output Impedance 1K±1%Ω
Position Signal Input Ratio 0.5V/°
Position Signal Input Range XY2-100
Electronic Circuit Stability 20PPM
Input Voltage ±24V--±30V
Average Working Current 2.8A
Max Input Current 10A
Operating Temperature 40ºC
Marking Area 300mm x 300mm
Product Features and Functions
1.Product Features:
  • The principle of laser marking is to use the focused tiny laser beam to generate high energy and then carry out marking process.
  • The laser marking is non-contact process, without mechanical compression and stress.
  • Solved the problems for irregular marking, can mark on curved surface, slanted surface, stepped surface and other irregular surfaces.
  • Reasonable size design, perfect heat dispersion.
  • Easy-operated software and diversified marking patterns ensures profound results of 3D surface marking.
2. Products Function:
  • Small heat-affected zone, high-precision processing, low cost, easy-operated, non-polluting, can realize the special marking technique that conventional method can not achieve.
  • With the assistance of special Z axis optical system, can use the software to control the focus without any mechanical movement within the distance of 200mm during marking.
  • Marking area can reach to 1000mm x 1000mm, realize the large-size marking.
  • Marking head is compatible with several of optical or non-optical devices, such as rotary axis.
  • With the combination of auto-focus by software control and manual mechanical-focus, this marking head can be used in a wider varieties of applications and products.
  • During marking process, the 3D controlling system can adjust laser position according to the change of product surfaces and shape, achieve perfect marking effect.
