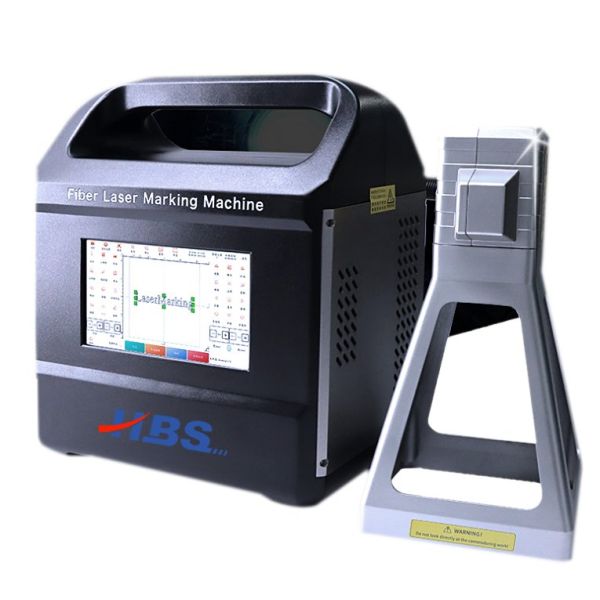

Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Specifications
Laser Visibility :
Visible
HS Code :
8456311009
Price :
US $1,850-2,950 / P
Operation Interface :
Built-in 7-Inch Touchscreen, Linux Operating Syste
Production Capacity :
200/Mounth
Technical Class :
Pulse Laser
Laser Wavelength :
Fiber Laser
MOQ :
1 Piece
Transport Package :
Dimension(mm): 450X420X380
Marking Area :
110*110mm/150*150mm
Cooling :
Air Cooling
Language :
Simplified Chinese, English, Korean, German, etc
File Format :
PNG/JPG/BMP/Dxf/Plt/Svg
Type :
Optical Fiber Laser Marking Machine
Product Name :
Small Portable Handheld Laser Marking Machine
Maximum Pulse Energy :
0.7mj
Cooling System :
Air Cooling
Model NO. :
HBS-GQ-20C
Laser Classification :
Solid Laser
Trademark :
HBS
Marking Method :
Scanning Marking
Power Supply :
220V/110V
Origin :
Beijing
Applicable Material :
Metal
Marking Wavelength :
1064nm
Description
Small portable laser marking machine/Mini handheld fiber laser marker
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker

The whole machine is very light --6.5KG.The laser head is only 1.2kg

Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Charging/Plugging Optional
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
One-click Marking
Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
Technical Specification

Material of whole machine

Engineering Plastics

Laser Type

Fiber laser

Average power

20 watts

Marking Wavelength

1064nm

Maximum pulse energy

0.7mj

Laser Repetition Frequency

1-600 kHz

Marking Method

High Precision Double-circle scanning mode

Laser Power Lifetime

100,000 hours (Theoretical data)

Cooling System

Air Cooling

Fiber cable length

1.75m

Marking Speed

≤7000mm/s

Operation Interface

Built-in 7-inch touchscreen, Linux operating system

Marking Area

100mm×100mm

Language

Simplified Chinese, English, Korean, German, etc

File Format

Png/jpg/bmp/dxf/plt/svg

Barcode/QR code

CODE25 CODE39,CODE49,CODE93 CODE126 CODE128 EAN13,EAN128 PDF417 CODBAR,UPCA,UPCA_CHK

UPCE_CHK,DataMatrix,QRCode

Power Supply

220V/110V

Maximum power consumption

250W

Machine Net Weight

Lithium battery mode machine weight:7.8kg

Power model machine weight:6.4kg

Full power Continuous working time

About 4 hours(Lithium battery mode)

Charging Time

1 and half hour (Lithium battery mode)

Adaptive Temperature

0-40ºC

Red light positioning, no need to focus, easier operation, marking more clear

Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker

Supports a variety of content marking

Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker

Certificate

Small Portable Laser Marking Machine/Mini Handheld Fiber Laser Marker
