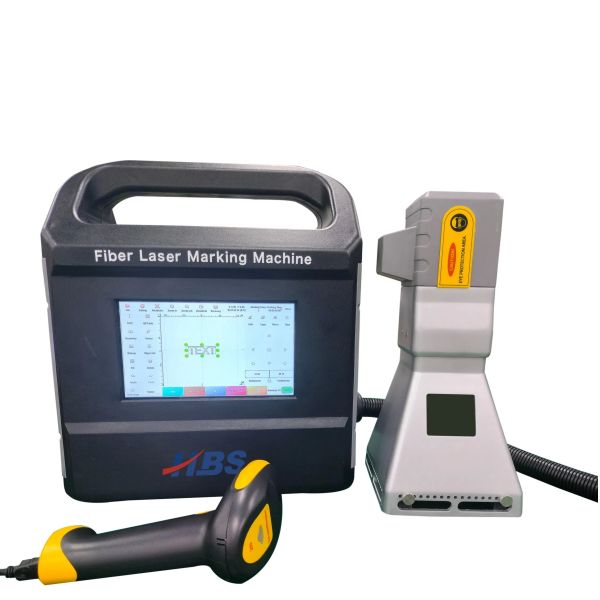

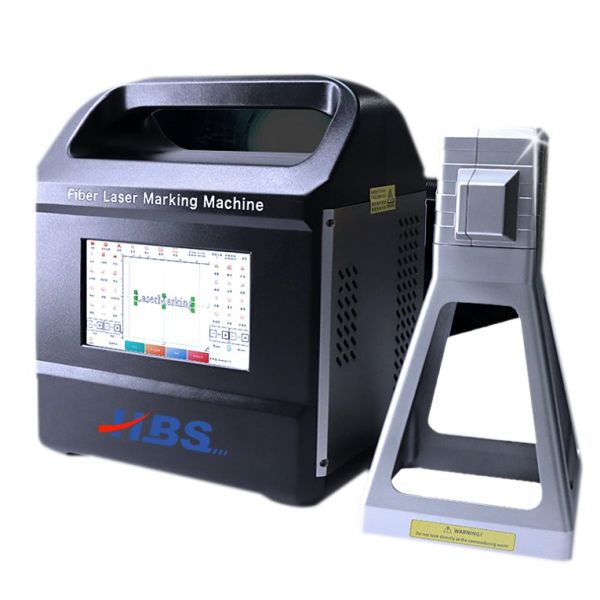

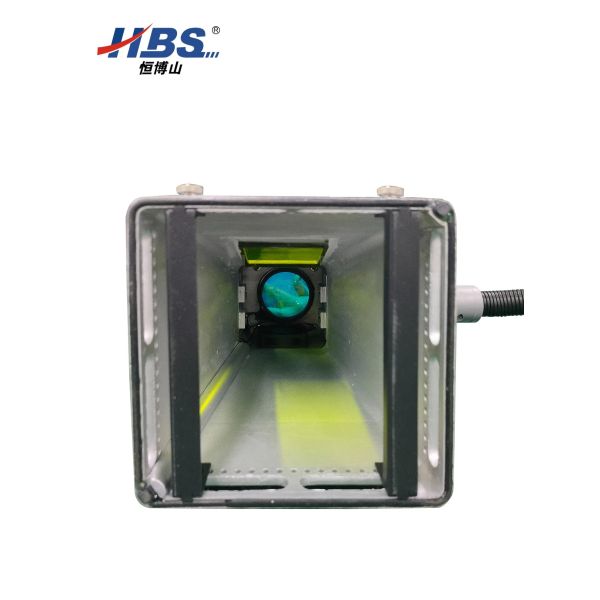

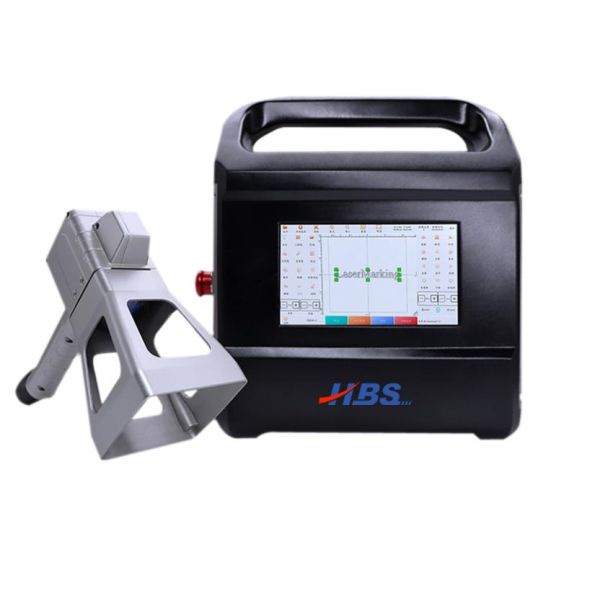

Portable Handheld Laser Marking Machine with Safe Cover
Portable Handheld Laser Marking Machine with Safe Cover
Portable Handheld Laser Marking Machine with Safe Cover
Portable Handheld Laser Marking Machine with Safe Cover
Portable Handheld Laser Marking Machine with Safe Cover
Portable Handheld Laser Marking Machine with Safe Cover
Portable Handheld Laser Marking Machine with Safe Cover
Portable Handheld Laser Marking Machine with Safe Cover
Portable Handheld Laser Marking Machine with Safe Cover
Portable Handheld Laser Marking Machine with Safe Cover
Portable Handheld Laser Marking Machine with Safe Cover
Portable Handheld Laser Marking Machine with Safe Cover
Specifications
Type :
Optical Fiber Laser Marking Machine
Marking Wavelength :
1064nm
Power Supply :
220V/110V
Maximum Pulse Energy :
0.7mj
Cooling System :
Air Cooling
Operation Interface :
Built-in 7-Inch Touchscreen, Linux Operating Syste
Price :
US $1,850-2,950 / P
Laser Visibility :
Visible
Production Capacity :
200/Mounth
Technical Class :
Pulse Laser
Laser Wavelength :
Fiber Laser
Cooling :
Air Cooling
Transport Package :

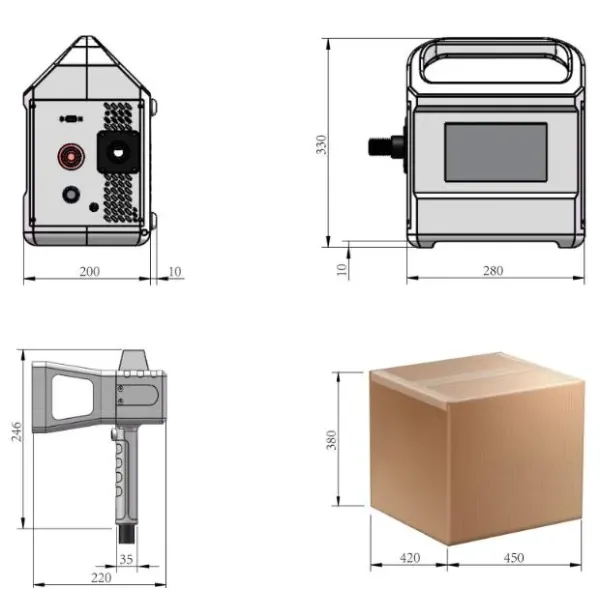

Dimension(mm): 450X420X380
Marking Method :
Scanning Marking
Product Name :
Portable Handheld Laser Marking Machine with Safe
Marking Area :
110*110mm/150*150mm
MOQ :
1 Piece
Language :
Simplified Chinese, English, Korean, German, etc
HS Code :
8456110090
File Format :
PNG/JPG/BMP/Dxf/Plt/Svg
Model NO. :
HBS-GQ-20C
Origin :
Beijing
Applicable Material :
Metal
Laser Classification :
Solid Laser
Trademark :
HBS
Description
Portable handheld laser marking machine with safe cover

Portable Handheld Laser Marking Machine with Safe Cover

Portable Handheld Laser Marking Machine with Safe Cover

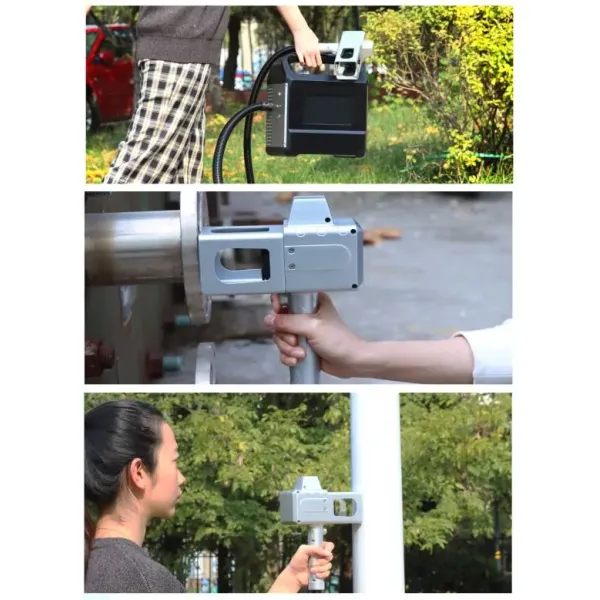

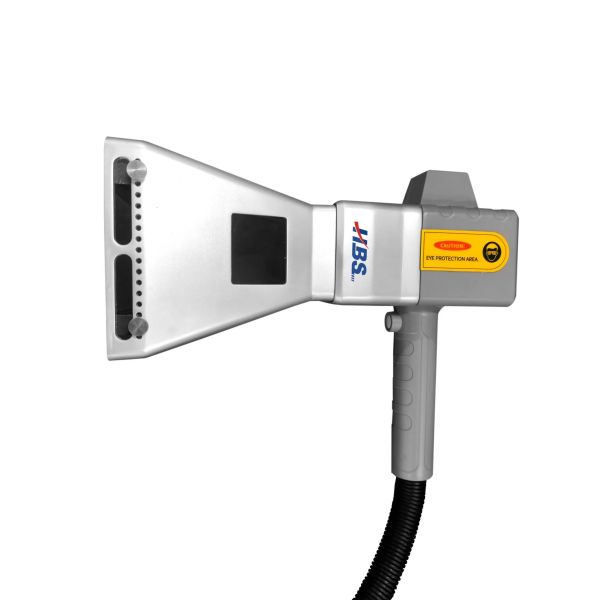

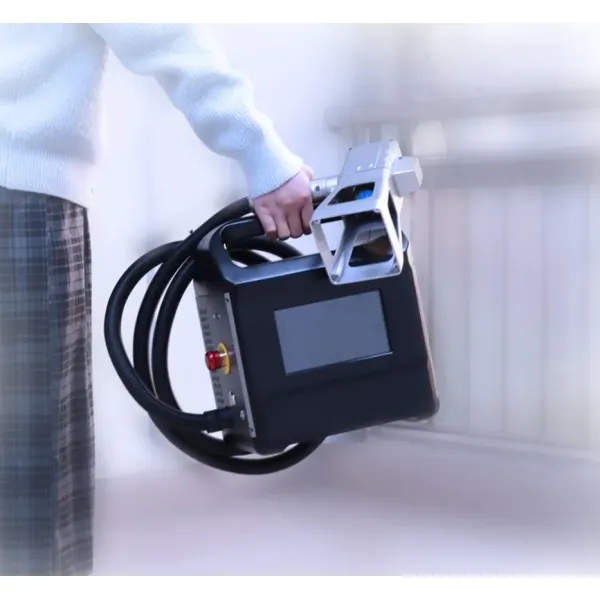

The whole machine is very light --6.5KG.The laser head is only 1.2kg

Portable Handheld Laser Marking Machine with Safe Cover

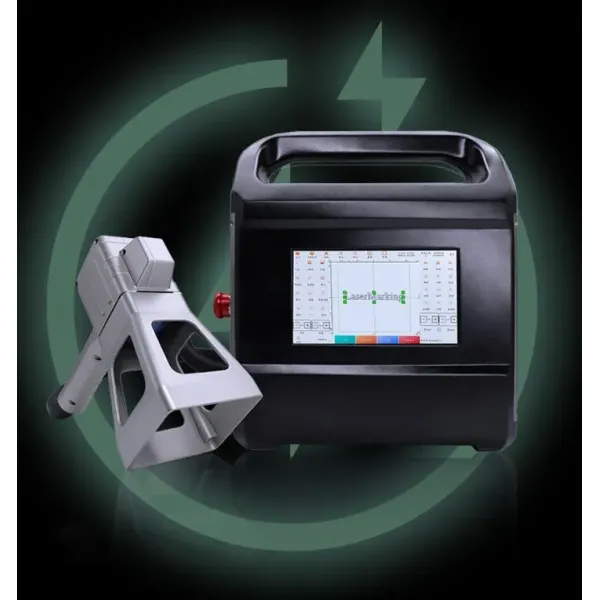

Charging/Plugging Optional

Portable Handheld Laser Marking Machine with Safe Cover

One-click Marking

Portable Handheld Laser Marking Machine with Safe CoverPortable Handheld Laser Marking Machine with Safe Cover

Portable Handheld Laser Marking Machine with Safe CoverPortable Handheld Laser Marking Machine with Safe CoverPortable Handheld Laser Marking Machine with Safe Cover

Technical Specification

Material of whole machine

Engineering Plastics

Laser Type

Fiber laser

Average power

20 watts

Marking Wavelength

1064nm

Maximum pulse energy

0.7mj

Laser Repetition Frequency

1-600 kHz

Marking Method

High Precision Double-circle scanning mode

Laser Power Lifetime

100,000 hours (Theoretical data)

Cooling System

Air Cooling

Fiber cable length

1.75m

Marking Speed

≤7000mm/s

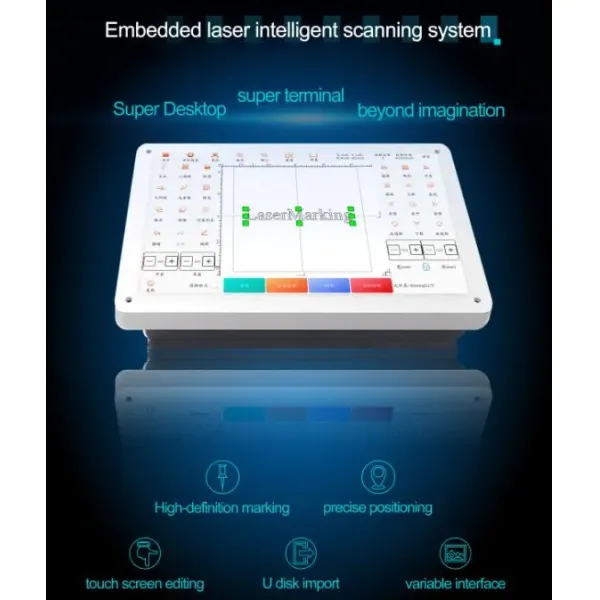

Operation Interface

Built-in 7-inch touchscreen, Linux operating system

Marking Area

100mm×100mm

Language

Simplified Chinese, English, Korean, German, etc

File Format

Png/jpg/bmp/dxf/plt/svg

Barcode/QR code

CODE25 CODE39,CODE49,CODE93 CODE126 CODE128 EAN13,EAN128 PDF417 CODBAR,UPCA,UPCA_CHK

UPCE_CHK,DataMatrix,QRCode

Power Supply

220V/110V

Maximum power consumption

250W

Machine Net Weight

Lithium battery mode machine weight:7.8kg

Power model machine weight:6.4kg

Full power Continuous working time

About 4 hours(Lithium battery mode)

Charging Time

1 and half hour (Lithium battery mode)

Adaptive Temperature

0-40ºC

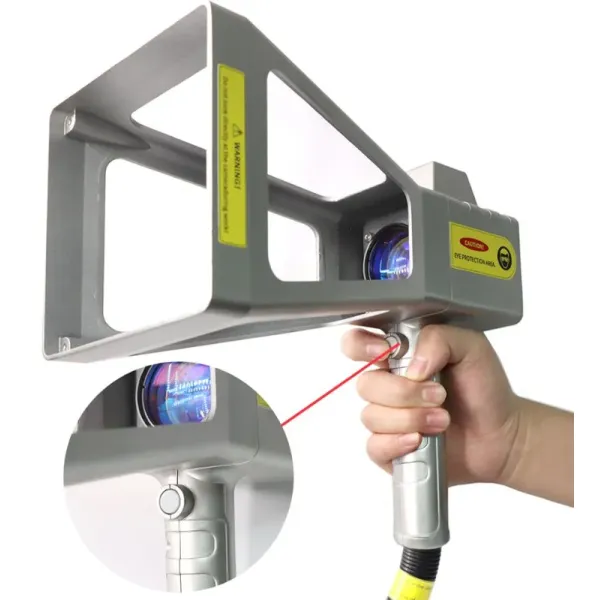

Red light positioning, no need to focus, easier operation, marking more clear

Portable Handheld Laser Marking Machine with Safe Cover

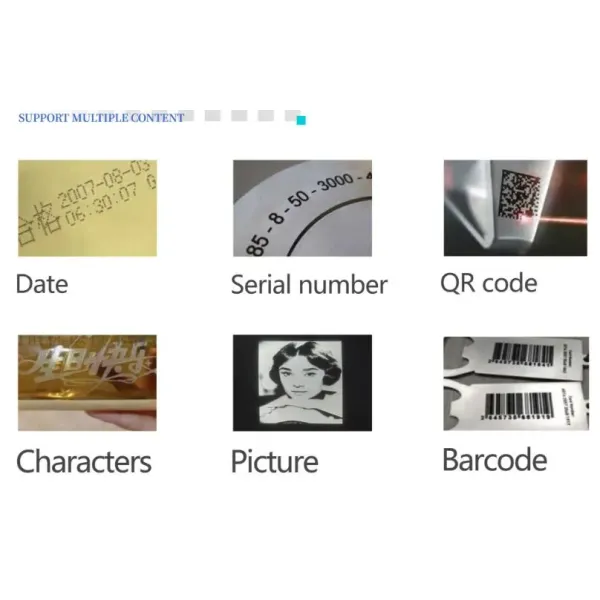

Supports a variety of content marking

Portable Handheld Laser Marking Machine with Safe CoverPortable Handheld Laser Marking Machine with Safe CoverPortable Handheld Laser Marking Machine with Safe CoverPortable Handheld Laser Marking Machine with Safe Cover

Certificate

Portable Handheld Laser Marking Machine with Safe Cover
