Specifications
Laser Classification :
Solid Laser
Specification :
1230X860X1820 mm
Transport Package :
Carton
Origin :
Beijing
Marking Method :
Scanning Marking
HS Code :
8456301090
Cooling System :
Air Cooling
MOQ :
1 Piece
Model NO. :
HBS-CO2-20F
Type :
Optical Fiber Laser Marking Machine
Production Capacity :
100/Month
Technical Class :
Pulse Laser
Laser Wavelength :
Fiber Laser
Trademark :
HBS
Price :
US $6,500-9,500 / P
Description
Technical Parameter
Laser Power 20W, 30W, 50W Laser Repetition Frequency ≤100KHz
Laser Wavelength 1060nm Marking Area 110mm x 110mm
Beam Quality <1.5 Making Depth ≤1.2mm (Adjustable with different materials)
Min. Line Width 0.01mm Marking Speed ≤12000mm/s
Min. Character Size 0.05mm Repetition Precision ±0.001mm
Power Consumption ≤500W Power Supply 220V/50Hz/10A
Product Description

Safety Cover: Comply with Germany laser safety regulations both inside and outside. There isn't any laser if the door isn't fully closed.

Warning Light: When the machine is ready to mark or the marking process is closed, the light will turn green. When the machine is working, the light turns yellow. When the door of the cover is not closed properly, or it is opened by someone, the light turns red.

Focus Finder System: two extra focus pointer will showing the exactly focus (when two red line cross into one point, that means the marking head is in right position), helps the operator to find the focus very easily, enhance the production efficiency.

Heavy-duty Bearing Wheels: the bearing wheels is with stop switch, which can support the weight up to 200kg.

Laser Generator Switch: the key is used to switch on/off the laser generator.

Emergency Stop: During the operation, if any emergency incidence happens, the machine can be stopped quickly by pushing the emergency stop button.

Safety Lock: the safety lock is used for avoiding opening the door by mistakes, avoid electricity hazards happened during mal-operation, the lock is with security key, that only can be open by special keys, in this way, the safety will be highly secured.

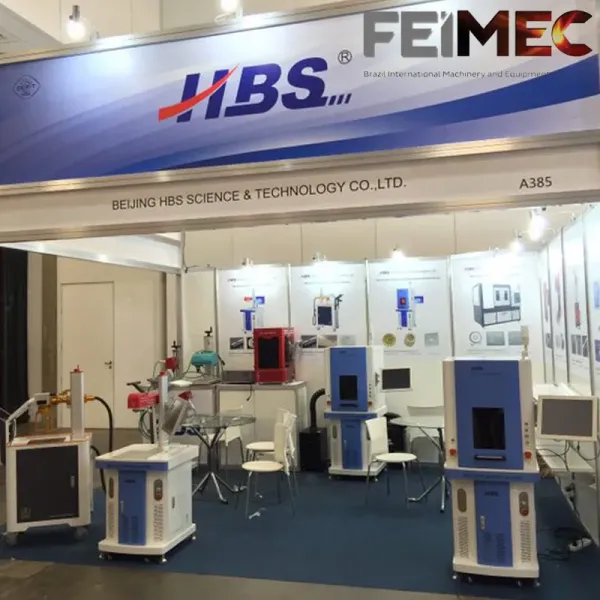

Exhibition
Our Company

Founded in 2001, HBS has 17 years experience in laser industry. Our support team will answer your questions within 24 hours.

HBS has acquired quality certifications of CE, BV, SGS, ISO9001, which ensures supreme quality.

HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment, with strong and sustainable traceability. Welcome to visit our factory!

Our Service
  • For all of HBS products, we ensures 12 months quality warranty against the delivery of the commodities to the customers;
  • For all of laser marking machine, HBS ensures our laser power can be used for at least 100,000 hours if proper operation;
  • HBS carry out 24 hours online free operation traing, trouble shoot and after sales services;
  • HBS have strong engineer teams for international door to door after sales services at any time;
  • HBS support to replace broken machine with brand new machine if the machine have vital defect;
  • HBS third-party technical support and international engineers is available in most of countries.
