Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Specifications
Laser Visibility :
Invisible
Model NO. :
HBS-GQ-30C
Cooling System :
Air Cooling
Marking Method :
Scanning Marking
Laser Classification :
Solid Laser
Trademark :
HBS
Production Capacity :
200/Mont
Price :
US $3,999-5,999 / P
Type :
Optical Fiber Laser Marking Machine
Specification :
880x1000x370mm
HS Code :
8456301090
Laser Wavelength :
Fiber Laser
Origin :
Beijing
Applicable Material :
Metal
Technical Class :
Pulse Laser
MOQ :
1 Piece
Transport Package :
Cartons
Description

Handheld laser marking machine with battery is suitable for metal as well as plastic workpiece which are heavy and large.

Technical Parameter:
Laser Power 20W, 30W, 50W Beam Quality <1.5
Laser Wavelength 1060nm Marking Area 110mm x 110mm
Laser Repetition Frequency ≤100KHz Making Depth ≤1.2mm (Adjustable with different materials)
Marking Speed ≤12000mm/s Min. Line Width 0.01mm
Min. Character Size 0.05mm Repetition Precision ±0.001mm
Power Consumption ≤500W Power Supply 220V/50Hz/10A
Product Features:
  • Low power consumption with no consumables.
  • Low product depreciation cost.
  • Long-time maintenance-free.
  • Long working time, over 100,000 hours.
  • Operate with batteries or supply from automobile ci-garette lighter in case of power failure.
  • The electro-optical conversion efficiency of fiber laser marking can reach to 90% or above.
Product Application:
  • Widely used in the marking of gold, silver diamond and other jewelries, sanitary tools,
  • food packaging, tobacco packaging, beer and beverage packaging, pharmaceutical packaging,
  • medical equipments, watches & glassware, automotive parts, plastic & paper material,
  • electronic hardware, gold bullion, and also in other areas such as aviation,
  • aircraft manufacturing, projectile body and explosion proof materials.
Exhibition:
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece

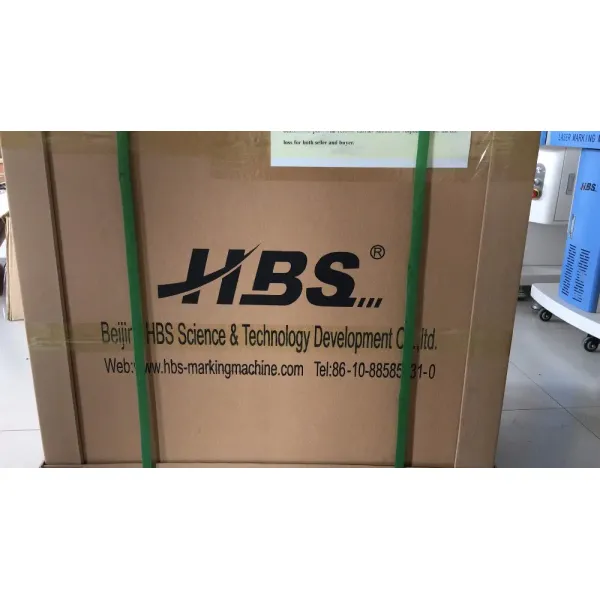

Packaging Details:
  • Package: 880x1000x370 mm
  • Machine head: 480x150x350 mm
  • Controller: 450x205x390 mm
  • Gross Weight: 34 kg
  • Net Weight: 25.7 kg
  • Machine head: 6.5 kg
  • Controller:19.2 kg
Air Cooling Barcode Laser Marking Machine For Large Heavy Steel Workpiece
Our Company:
  • Founded in 2001, HBS has 17 years experience in laser industry.
  • HBS has acquired quality certifications such as CE, BV, SGS, ISO9001, which ensures supreme quality.
  • HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment.
  • The price is not expensive considering it's factory price. Welcome to visit our factory!
