Model:

HBS-GQ-50

Laser Power:

10W 20W 30W, 50W

Laser Wavelength:

1060nm

Beam Quality:

<1.5

Laser Repetition Frequency:

≤100KHz

Marking Area:

110mm x 110mm

Making Depth:

≤1.2mm (Adjustable with different materials)

Marking Speed:

≤12000mm/s

Min. Line Width:

0.01mm

Min. Character Size:

0.05mm

Repetition Precision:

±0.001mm

Power Consumption:

≤500W

Power Supply:

220V/50Hz/10A

Cooling method:

Air cooled

Dimension(mm):

855X1000X1170 (Machine head: 530X220X660, table: 600X700X750)

Net Weight(kg):

70 (Machine head: 13.5, table: 56.5)

Gross Weight(kg):

140

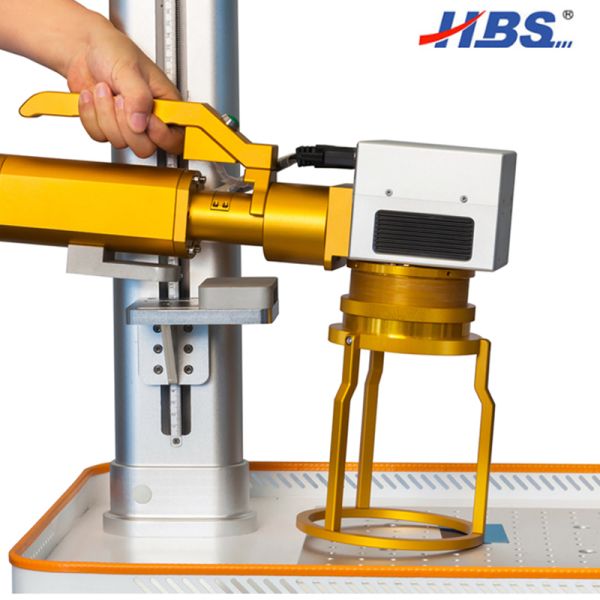

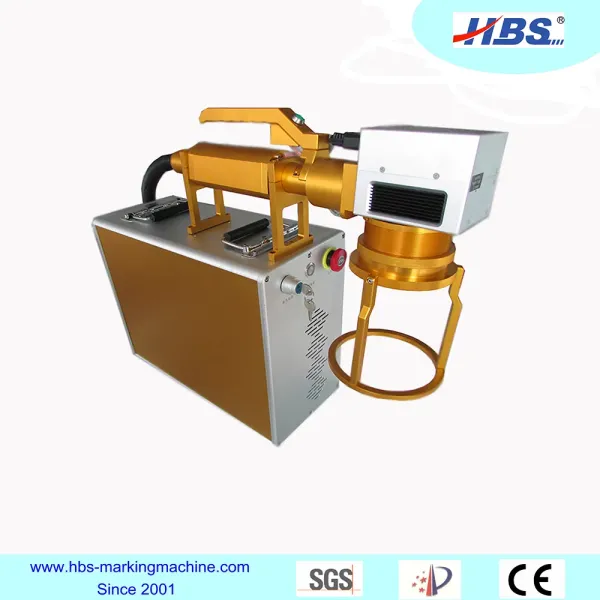

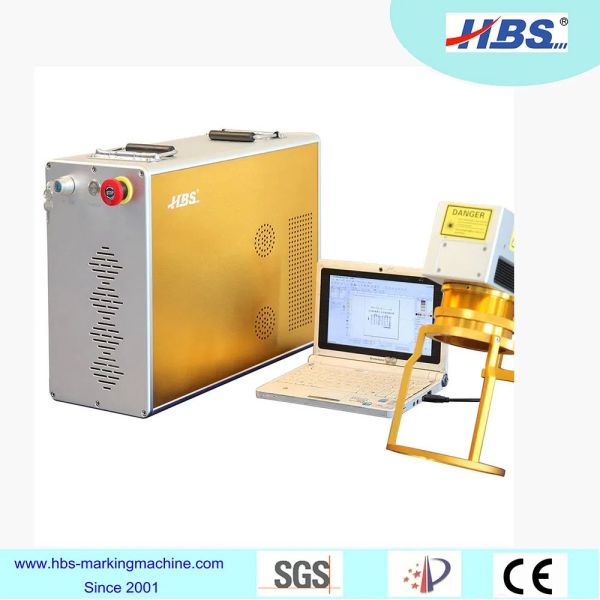

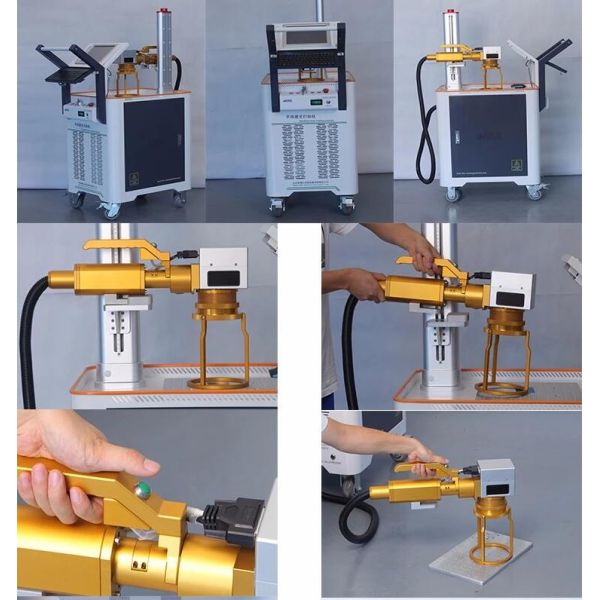

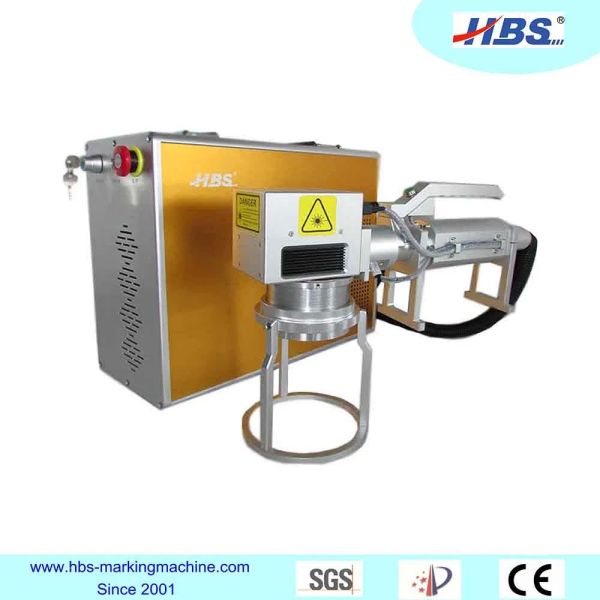

Fiber Laser Marking Machine is the latest generation of laser marking system, resulting from our own research using the world's most advanced laser technology.

Adoption of fiber laser system for outputting laser, and then achieve marking functions by high-speed scanning galvanometer mirror system.

The electro-optical conversion efficiency of fiber laser marking can reach to 90% or above, it has higher beam quality in comparison to semiconductor laser marking machine.

The machine is designed for long-time maintenance-free.

• Extremely fast, with high-speed galvanometer.
• Small volume, light weight.
• No consumables, low power consumption, less than 500W.
• Completely air cooled, do not need water chiller, lower power consumption.
• Robust under harsh environment and temperature change, can operate with batteries or supply from automobile ci-garette lighter in case of power failure.
• Low product depreciation cost. Ability to meet customers' mass and stable production.

The machine is assembled with fiber laser from Germany or Britain, or RAYCUS. The working time can reach 100,000 hours or above, competent in different work locations.

Fiber laser marking machines are used in a wide variety of applications such as in the marking of gold, silver diamond and other jewelries, sanitary tools, food packaging, tobacco packaging, beer and beverage packaging, pharmaceutical packaging, medical equipments, watches & glassware, automotive parts, plastic & paper material, electronic hardware, gold bullion, and also in other areas such as aviation, aircraft manufacturing, projectile body and explosion proof materials.
