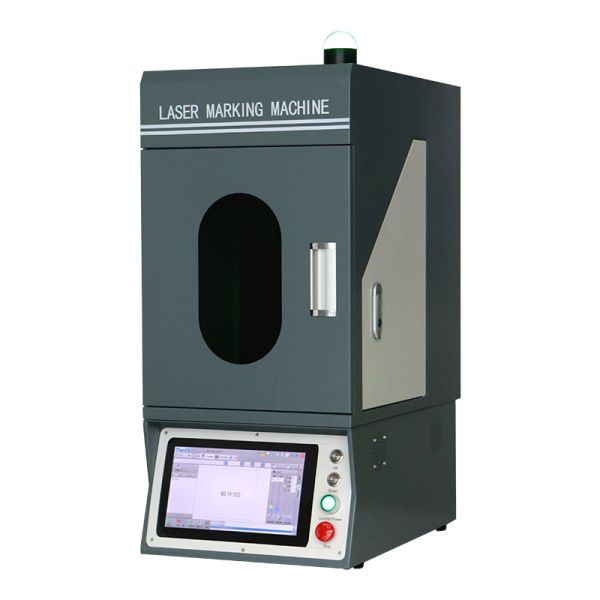

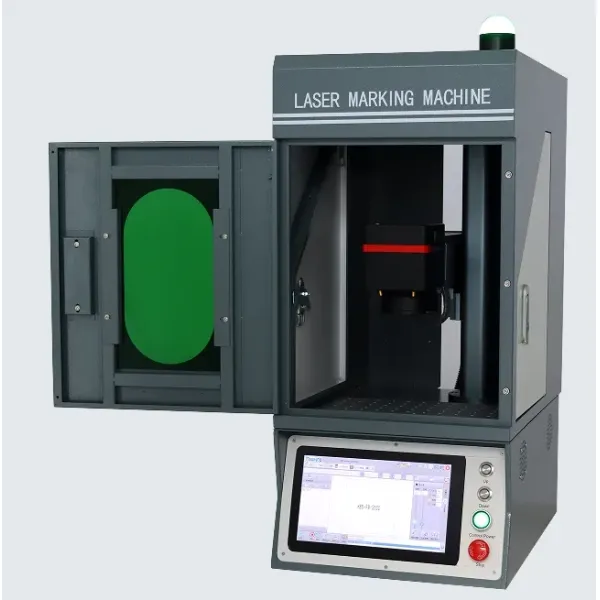

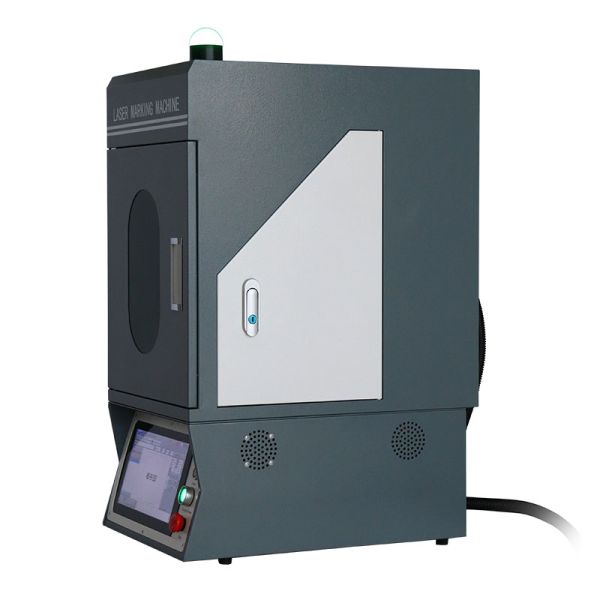

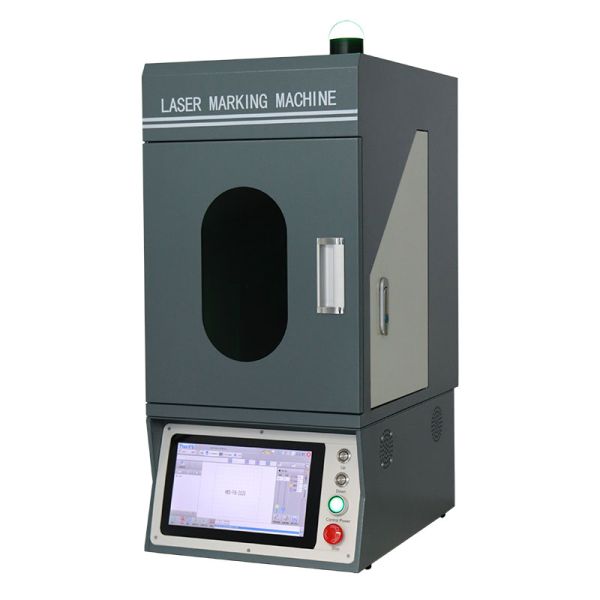

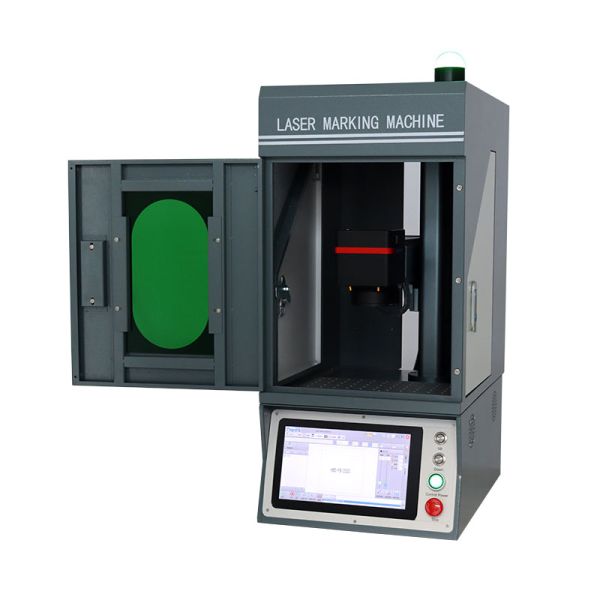

1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
Specifications
Laser Classification :
Solid Laser
Laser Power :
20W 30W 50W
Origin :
Beijing
Marking Method :
Scanning Marking
Connecting Port :
232, USB, Io, Mess System
Trademark :
HBS
Laser Brand :
Raycus
Wavelength :
1064nm
Cooling System :
Air Cooling
HS Code :
8456301090
Model NO. :
HBS-GQ-20 c
Production Capacity :
200/Months
Type :
Optical Fiber Laser Marking Machine
Transport Package :
Cartons
Marking Area :
110X110mm
Specification :
880x1000x370mm
MOQ :
1 Piece
Technical Class :
Pulse Laser
Price :
US $2,500-5,500 / P
Laser Wavelength :
Fiber Laser
Description
20W Fiber Laser Engraving Machine with Lift Table Automatic Lifter
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
I Product Introduction:

GQ 20B are design for marking small and delicate workpieces. For such a small size marking system, you can simply put it on your working table. With our powerful laser source, focus finder system, piolt laser, user-friendly software, motorized Z axis, you can turn your desktop into a small laser marking station. Your design and marking process will be simple and easy.

II Product Features:
  • Low power consumption with no consumables.
  • Low product depreciation cost.
  • Long-time maintenance-free.
  • Long working time, over 100,000 hours.
  • Operate with batteries or supply from automobile ci-garette lighter in case of power failure.
  • The electro-optical conversion efficiency of fiber laser marking can reach to 90% or above.
III Technical Parameter:
Beam Quality <1.5
Laser Repetition Frequency ≤100KHz
Marking Area 110mm x 110mm
Marking Speed ≤12000mm/s
Min. Line Width 0.01mm
Repetition Precision ±0.001mm
Power Consumption ≤500W
Power Supply 220V/50Hz/10A
IV Product Application:

For metal as well as plastic product.
Widely used in the marking of gold, silver diamond and other jewelries, sanitary tools, food packaging,
tobacco packaging, beer and beverage packaging, pharmaceutical packaging, medical equipments, watches
& glassware, automotive parts, plastic & paper material, electronic hardware, gold bullion, and also in
other areas suchs as aviation, aircraft manufacturing, projectile body and explosion proof materials.

1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
V Exhibition: METAV 2018
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter 1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
VI Packaging Details:
  • Package: 880x1000x370 mm
  • Machine head: 300x520x570 mm
  • Table: 460x450x180 mm
  • Gross Weight: 52 kg
  • Net Weight: 42.6 kg
  • Machine head: 27.2 kg
  • Controller:15.4 kg
1064nm 20W Fiber Laser Engraving Machine With Lift Table Automatic Lifter
VII Company Info:

Founded in 2001, HBS has 17 years experience in laser industry.
HBS has acquired quality certifications such as CE, BV, SGS, ISO9001, which ensures supreme quality. HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment.
The price is not expensive considering it's factory price. Welcome to visit our factory!
