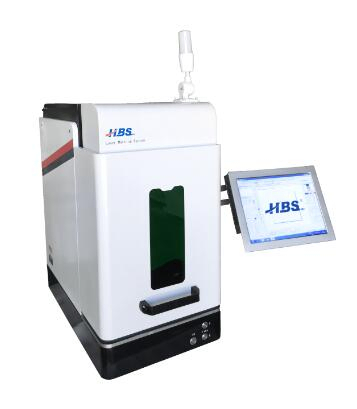

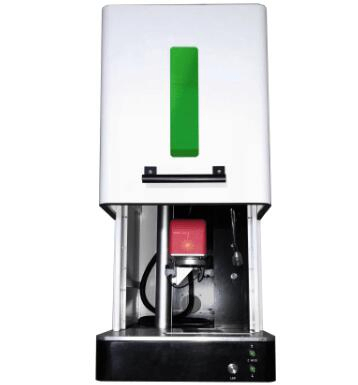

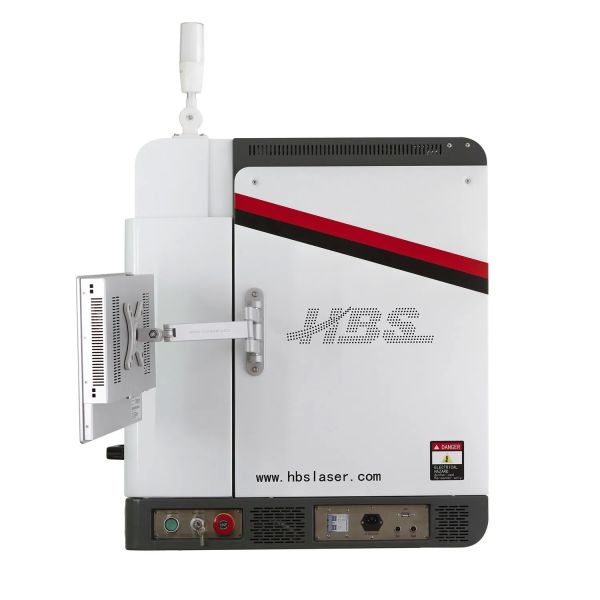

Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
Specifications
Technical Class :
Continuous Wave Laser
Marking Method :
Scanning Marking
Laser Type :
Fiber Laser
Certification :
CCC, Ce, ISO, SGS
Laser Classification :
Solid Laser
Marking Depth :
0-0.5mm (According)
Control Software :
Ezcad
Type :
Optical Fiber Laser Marking Machine
Power :
20W, 30W, 50W
Laser Visibility :
Visible
Graphic Format :
Ai, BMP, Dxf, Dxp, Las, Plt
Production Capacity :
50000 Pieces/Year
Model NO. :
HBS-GQ-20
Condition :
New
Price :
US $3,899-4,599 / P
MOQ :
1 Piece
Working Accuracy :
0.01
Trademark :
HBS
Origin :
Beijing
HS Code :
8456110090
Laser Wavelength :
Fiber Laser
Marking Speed :
0-12000mm/S
Transport Package :
Cartons
Applicable Material :
Metal
Cooling System :
Air Cooling
Specification :
880*1000*1200mm
Laser Source :
Raycus or Ipg
Description

Low Price Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine

Hot selling Table Design Fiber laser marking machine

One year guarantee and life-time after sales service

Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine

1.Despriction of the Fiber Laser marking machine HBS-GQ-20B

Fiber Laser Marking Machine is the latest generation of laser marking system, resulting from our own research using the world's most advanced laser technology.

Adoption of fiber laser system for outputting laser, and then achieve marking functions by high-speed scanning galvanometer mirror system.

The electro-optical conversion efficiency of fiber laser marking can reach 90% or above, it has higher beam quality in comparison to semiconductor laser marking machine.

The machine is designed for long-time maintenance-free.

2. Detailed Technical Information of fiber laser marking machine

Laser Wavelength

1060nm

Beam Quality

<1.5

Laser Repetition

≤100KHz

Standard Marking Area

110mm x 110mm; Max:300mmx300mm

Making Depth

≤1.5mm(Can be Adjustable)

Marking Speed

≤12000mm/s

Min. Line Width

0.01mm

Min. Character Size

0.05mm

Repetition Precision

±0.001mm

Power Consumption

≤500W

Cooling method

Air cooled

Power Supply

220V/50Hz/10A

Optional Lens

Lens Type

HBS-65

HBS-110

HBS-175

Focal Length

100mm

170mm

250mm

Marking Area

65mm*65mm

110mm*110mm

175mm*175mm

Note: Without special request, HBS will fix our standard lens Model: HBS-110

3.Product Features of the fiber laser marking machine

  • Extremely fast, with the high-speed galvanometer.
  • Small volume, lightweight.
  • No consumables, low power consumption, less than 500W.
  • Completely air cooled, do not need water chiller, lower power consumption.
  • Robust under harsh environment and temperature change can operate with batteries or supply from an automobile ci-garette lighter in case of power failure.
  • Low product depreciation cost. Ability to meet customers' mass and stable production.

4.Application of the fiber laser marking machine

The machine is assembled with fiber laser from Germany or Britain or RAYCUS. The working time can reach 100,000 hours or above, competent in different work locations.

Fiber laser marking machines are used in a wide variety of applications such as in the marking of gold, silver diamond and other jewelries, sanitary tools, food packaging, tobacco packaging, beer and beverage packaging, pharmaceutical packaging, medical equipments, watches & glassware, automotive parts, plastic & paper material, electronic hardware, gold bullion, and also in other areas such as aviation, aircraft manufacturing, projectile body and explosion proof materials.

5. Marking samples of Laser marking HBS-GQ-20

Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine

6. Our Company

Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine

Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine

Laser Marker 20W CNC Portable Mini Fiber Laser Marking Machine
