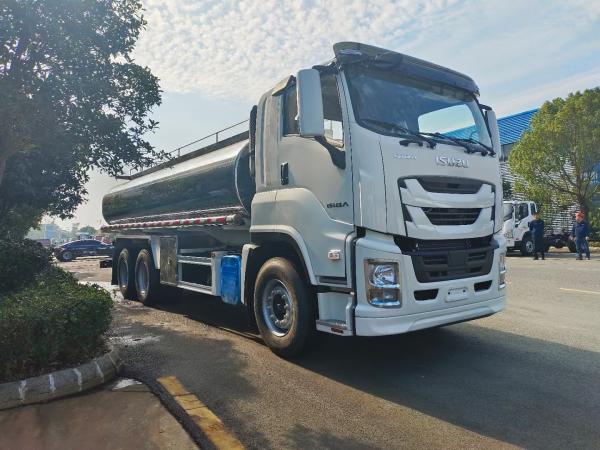

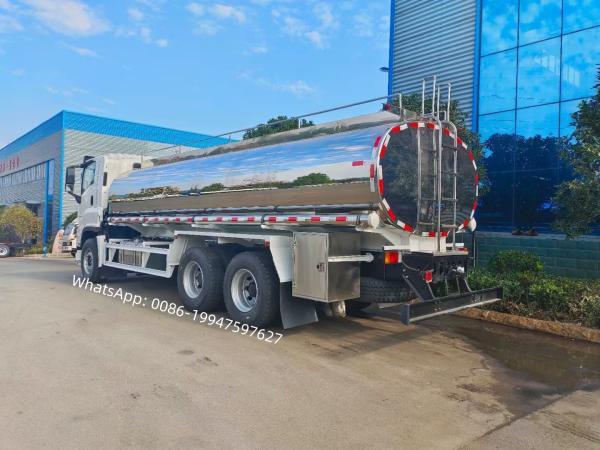

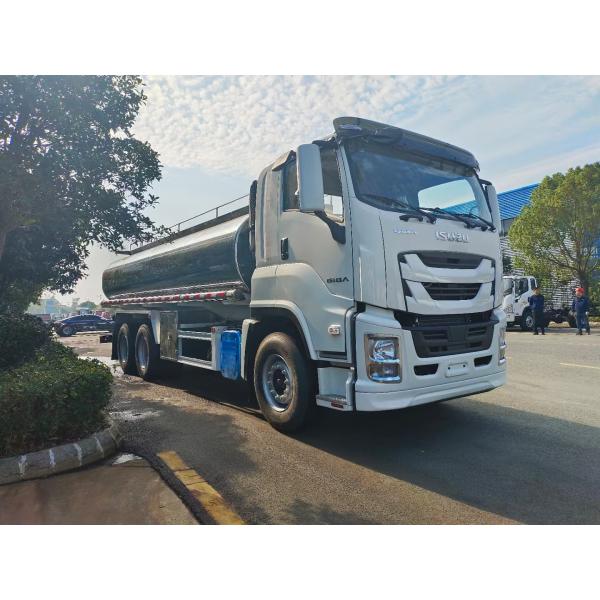

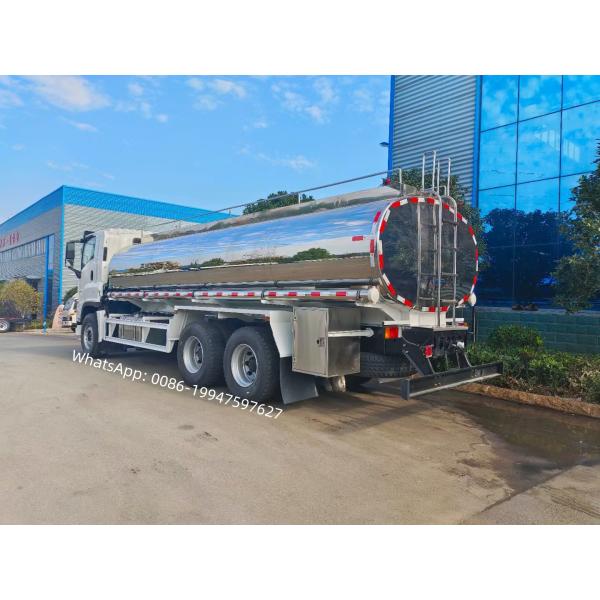

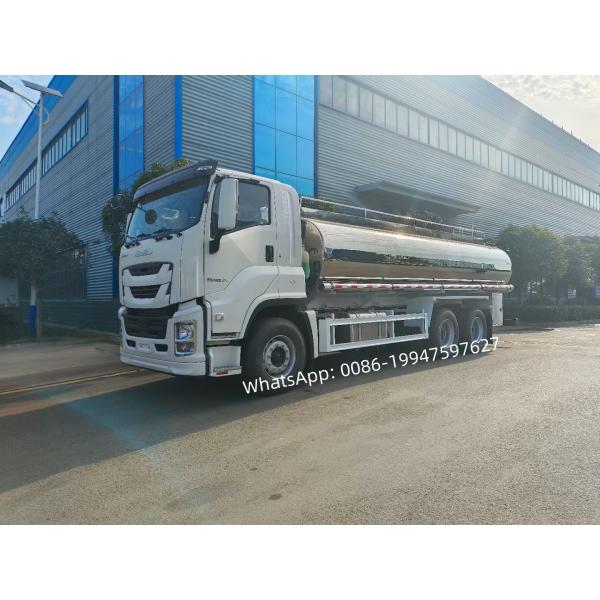

10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker
10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker
10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker
10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker
10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker
10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker
10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker
10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker
10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker
10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker
Specifications
Brand Name :
ISUZU
Model Number :
FVZ
Certification :
ISO
Place of Origin :
Hubei
MOQ :
1
Price :
$81300 per unit
Payment Terms :
T/T, L/C
Supply Ability :
50 units per month
Delivery Time :
45 days
Packaging Details :
nude with waxing
Product Name :
milk tanker truck
Volume :
20000 liters
Chassis model :
ISUZU, optional DFAC,HOWO,SHACMAN,FAW
Engine :
300HP
Wheelbase :
4650+1370 mm
Function :
transport fresh milk
Drive model :
6x4
Tire :
295/80R22.5
Transmission :
9-speed, manual
Emission standard :
Euro 6
water tank material :
carbon steel or stainless steel
Description

10 wheels 6X4 ISUZU truck with 20000 liter stainless steel milk tanker.

10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker

10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker

10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker

Main specification :

Complete Vehicle Parameter
Vehicle ISUZU milk tanker truck
Manufacturing year 2025 - the latest, brand new
Overall dimensions (mm) 10200 x 2500 x 3150
Milk tanker (L) 20000
Gross Vehicle Weight (kg) Appro × 31625
Net weight (kg) Appro × 11430
Loading (kg) Appro × 20000
Wheel base (mm) 4650 + 1370
Max speed (km/h) 90
ISUZU Truck Chassis Parameter
Cabin FVZ cabin, a sleeper, power steering, A/C,central lock, electric window, 3 passengers, left hand drive.
Traction system 6×4
Engine

Brand:ISUZU

Model: 6HK1-TCG60

Engine power : 300hp

Type: diesel, 6 cylinder, turbocharged,DPF.

Displacement: 7.8L

Emission standard : Euro 6
Transmission 9 forward , 1 reverse, manual operated
Tire model 295/80R22.5
No.of tires 10+1pcs
Milk Tanker Parameter
Standard configuration

1. Capacity: 20000 liters.

2. Inside material: food grade stainless steel 304-2B, thick 4mm.

3. Outside: stainless steel mirror finish, thick 2mm.

4. The insulation layer is 80mm thick polyurethane.

5. Divided into 4 compartments, each compartment has CIP cleaning and steam cleaning.

6. Equipped with stainless steel pump, to load and unload milk.

7. Finish: the interior of the milk tank is very smooth and high polished, so it have not any sharp angles.

8. Outlet: butterfly valve at the rear of milk tank.

9. Inlet: butterfly valve with a union end.

10. Manhole: with fixes deep stick to the manhole and 430 mm diameter.

11. Accessories: stainless steel ladder to the top of milk tank and anti slippery walkway .
Performance The heat preservation effect can keep <1 ºC in 24 hours.
