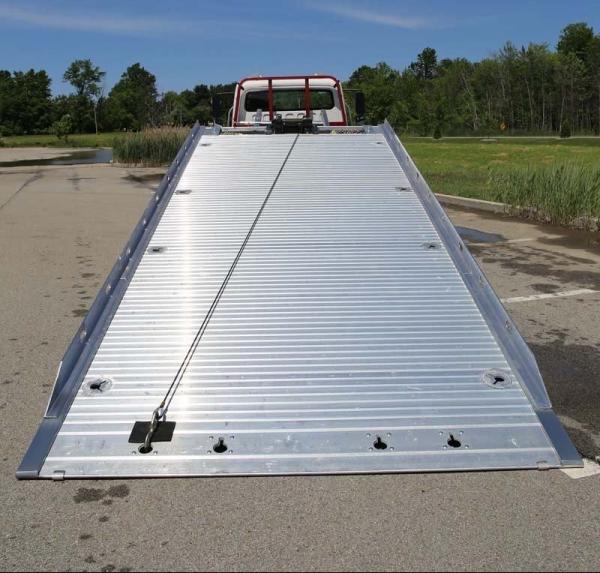

5 Tons Aluminum Platform Wrecker Bed Tow Truck Body Length 5 - 7m
5 Tons Aluminum Platform Wrecker Bed Tow Truck Body Length 5 - 7m
Specifications
Brand Name :
iTruck
Place of Origin :
Hubei, China
MOQ :
1
Price :
$14,000.00/units
Supply Ability :
10 sets per month
Delivery Time :
35 days
Packaging Details :
Nude, covered with film protection
Product name :
Rallback Truck Bed, Aluminum
Dimensions (L x W x H) (mm) :
Customs made
Condition :
New
WheelBase :
As required
Subframe :
Equipped
Main Winch :
5 tons
Underlift :
2 sections, 3 tons
Underlift Tow Rating :
6 Tons
Operation :
Both sides manual
Remote Control :
Optional
Warranty :
1 Year
Description
5 TONS ALUMINUM DECK CAR CARRIER TILT TRAY TOW TRUCK BODY ALUMINUM PLATFORM
Product Description

The rallback / slide and tilt truck bed / wrecker bed is available in aluminum, with multiple deck length and width configurations and different structural deck capacity for more strength and durability on the job.

Main Features
1. Bed Length 5 - 7 m. Capacity 5 Tons.
2. Optional Hitch Ball. Optional Remote Control.
3. Optional Slide Winch.
Specs
5 Tons Aluminum Wrecker Bed
General Settings Color Customizable
Winch Capacity 5 tons, sliding winch is extra USD1,000
Lift Capacity 5 tons
Extension Capacity 5 tons
Underlift Capacity 3 tons, optional and extra USD500
Platform Material Aluminum Alloy, 5mm thick
Platform Type Checkered
Platform Dimension 6500 x 2400 mm (customizable)
Wireless Remote Control Optional, extra USD500
Subframe Carbon steel Q235B, match to chassis
Lights Siren Long Lamp with Speaker 1 pcs
Sides Lights 8 pcs
Frame Lights with Lights Seat 6 pcs
Hydraulic System Bed Extension Cylinder with Seat 1 pcs
Bed Lift Cylinder with Seat 2 pcs
Underlift lift Cylinder 2 pcs (if underlift required)
Underlift Extension Cylinder 1 pcs (if underlift required)
Hydraulic Winch 1 pcs
Hydraulic Pump 1 pcs
Hydraulic Multi Way Valve 1 pcs
Hydraulic Balance Valve 1 pcs (1 for lift. And 1 for underlift if required)
Hydraulic Hose 1 set
Hydraulic Hose Containment 1 set
Hose Sleeve 1 pcs
Manual Control with Stainless Steel Seat 2 sets (on both sides)
Oil Tank 1 pcs
Accessories Auxiliary Wheels 2 pcs (if underlift required)
Straps 4 pcs
Toolbox 2 pcs
Wheel Grids 2 pcs (if underlift required)
L arms 2 pcs (if underlift required)
Fence 2 pcs
Mudflap 2 pcs
Lamp Frame Rack 1 pcs, carbon steel
Tow Chain 1 pcs
Frame and Lights Bolts 1 set
Toolbox and Fence Brackets Square Tube 1 set
