OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
Specifications
Price :
$260-280/pieces
application :
oil tank truck
port size :
4inch
warranty :
1 year
place of origin :
Hubei, China
model number :
HT.QDQ413F-16P
power :
Pneumatic
temperature of media :
Normal Temperature
brand name :
CHUANCHU
structure :
Shut off
media :
Oil
customized support :
OEM, ODM, OBM
Fuction :
Prevent leakage
Body material :
stainless steel
Connection :
Flange
Nominal diameter :
DN100
Nominal pressure :
0-0.6Mpa
Opening method :
Pneumatic
weight :
13.5kg
Design temperature :
-20°-+180°
Medium :
light fuel
Sealing material :
Nitrile rubber, fluorine rubber
Packaging Details :
Wooden box
Delivery Time :
7-30 days
Payment Terms :
T/T
MOQ :
1
Supply Ability :
Meet large-scale orders
Description

PRODUCT DESCRIBE

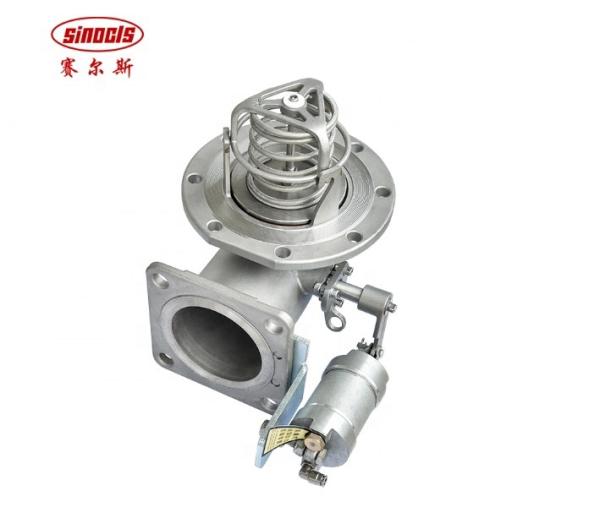

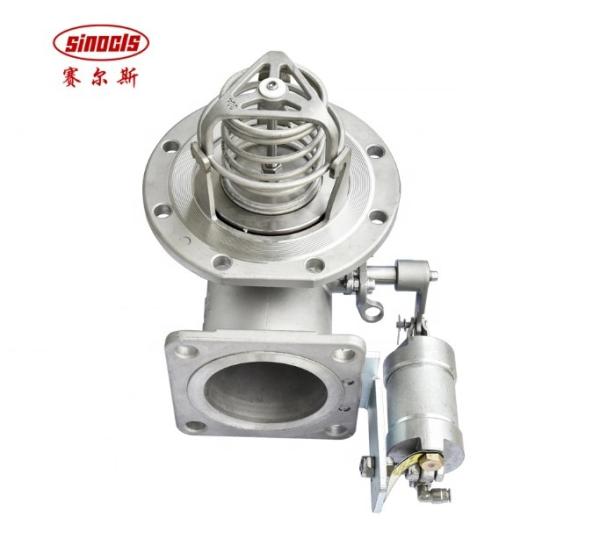

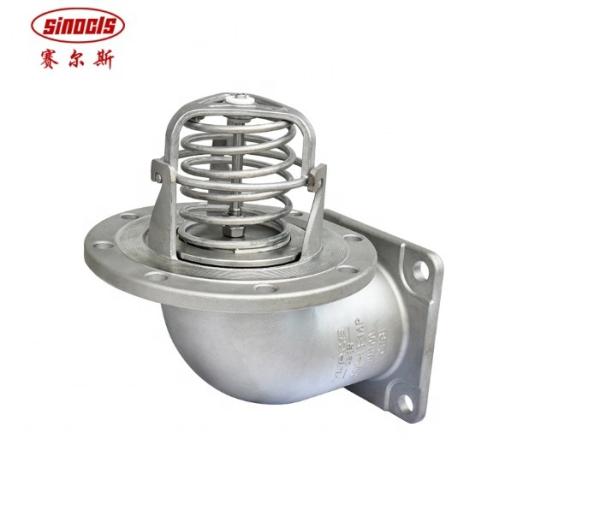

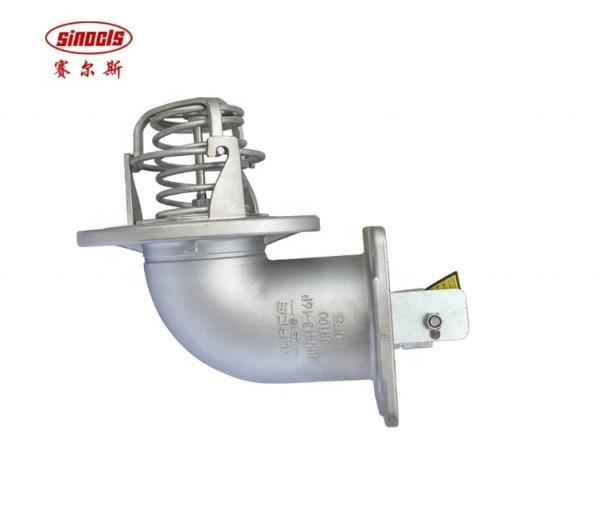

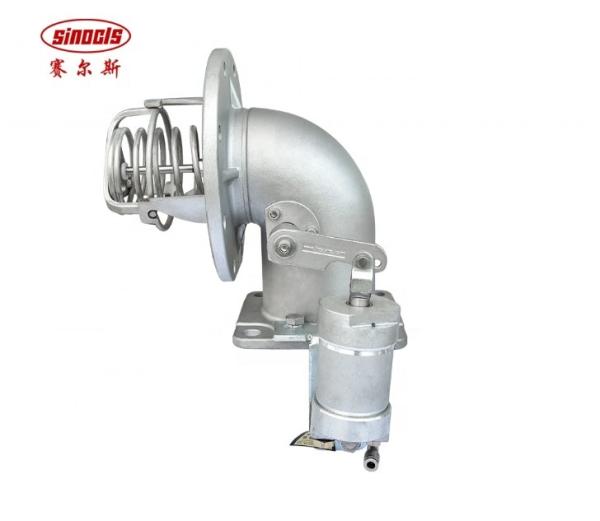

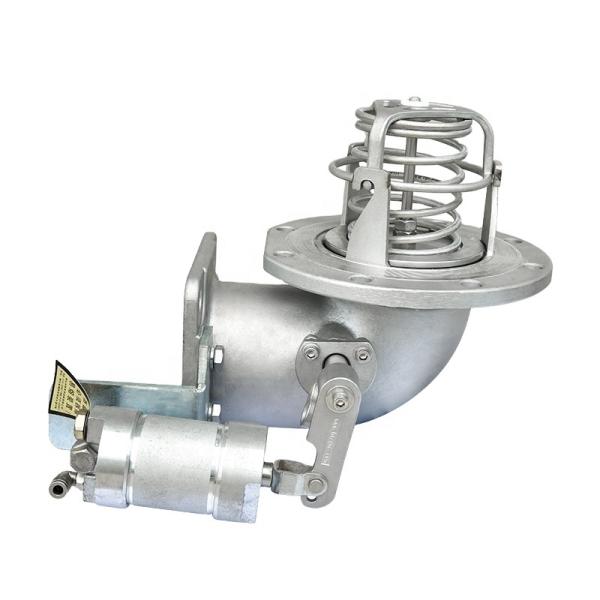

Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve

I. Product Introduction

The stainless steel emergency shut-off valve, also known as the underwater valve, is installed at the bottom of the tank car. The valve is sealed inside the tank, and there is no cut-off groove on the valve body. When subjected to strong collision, the valve body will break at the flange, separating the tank body and the bottom pipeline, becoming an independent sealed tank body to prevent liquid leakage and greatly improve transportation safety. It meets the relevant requirements of GB/T932-2018 standard and is a pipe fitting component for bottom loading and unloading of tank cars. It is suitable for transporting light fuel tanks and cannot be installed in highly corrosive liquids.

II.Product Parameters

Body material stainless steel 304/C4/316L
Nominal diameter DN100
Nominal pressure 0.6Mpa
weight 13.5kg
design tempresure -20°~+180°
appliable medium chemical material

III.Product Pictures

OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve CustomizedOBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve CustomizedOBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
Company profile

Hubei Huate special equipment Co., Ltd., founded in 2009, is located in Suizhou, the capital of special vehicles in China. It is a professional enterprise integrating R & D, casting, processing and sales of special auto parts and special vehicles. The products have high popularity and influence in petroleum, chemical, thermal, metallurgy, shipbuilding, medicine, food, transportation and other industries, and the products sell well in domestic and foreign markets. The company covers an area of 18000 square meters and a plant area of more than 9000 square meters. It has more than 200 sets of processing, production and testing equipment. At present, there are more than 90 employees and more than 30 technical backbone and R & D personnel. With an annual production of 35000 sets of special auto parts, it is a high-quality supporting supplier for domestic large-scale atmospheric dangerous goods tank truck and powder material transport vehicle enterprises.OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve CustomizedOBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve CustomizedOBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve CustomizedOBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve CustomizedOBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
