Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Specifications
Place of Origin :
Hubei, China
Brand Name :
CHUANCHU
Model Number :
HT_XYF806_100
MOQ :
1
Price :
$88/pieces >=2 pieces
Packaging Details :
Wooden box
Delivery Time :
7-30 days
Payment Terms :
T/T
Supply Ability :
Meet large-scale orders
pump :
/
Material :
Aluminum Alloy
Power :
/, Manual
Accuracy :
/
Nozzle :
/
ambient temperature :
/
Working Voltage :
/
Flow Rate :
/
Warranty :
1year
Certificate :
/
Type :
Oil unloading valve
Nominal diameter :
DN100
Nominal Pressure :
0.6Mpa
Main Material :
Aluminum Alloy
Applicable media :
light fuel oil
set tempreture :
-20~70
Weight :
6kg
Seal Material :
Nitrile rubber/Fluororubber
Open Method :
Manual
Use :
Oil removal
Description

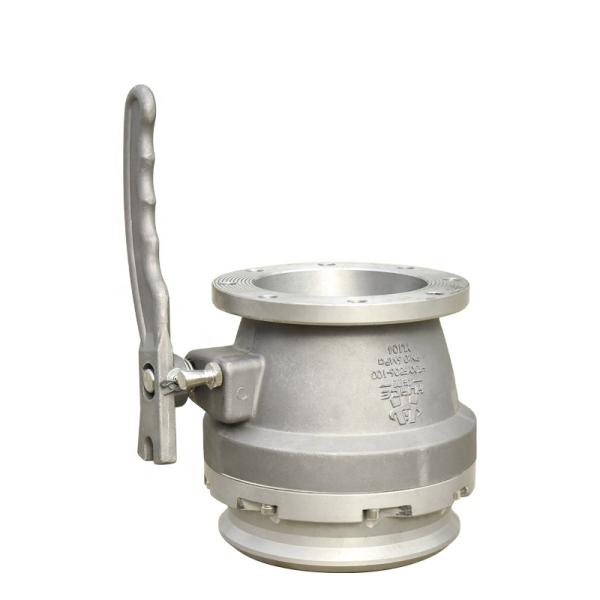

Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70°C Temperature Adjustment
Product Description
The oil unloading valve is installed at the bottom of the side of the tanker truck. It is a key component for achieving fast and leak-free bottom loading and unloading operations. This valve is specifically designed for handling light fuels including gasoline, kerosene, and diesel.
Constructed from lightweight aluminum alloy using low-pressure casting, this unloading valve offers exceptional durability. The surface oxidation treatment provides superior corrosion and wear resistance. Its optimized structural design ensures high flow capacity, while the anodized and hardened interface maintains reliability. The flat-bottom outlet structure prevents leakage during disconnection, minimizing environmental impact.
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Specifications
Item Value
Type Oil unloading valve
Material Aluminum Alloy
Place of Origin China, Hubei
Brand Name CHUANCHU
Model Number HT_XYF806_100
Warranty 1 year
Nominal diameter DN100
Nominal Pressure 0.6Mpa
Main Material Aluminum Alloy
Applicable media Light fuel oil
Temperature range -20~70°C
Weight 6kg
Seal Material Nitrile rubber/Fluororubber
Operation Method Manual
Power Manual
Use Oil removal
Manufacturer Information
Hubei Huate Special Equipment Co., Ltd. is a national high-tech enterprise specializing in the R&D, manufacturing, and sales of special truck components. Established in 2009 and headquartered in Suizhou, Hubei Province (China's special truck capital), the company holds multiple international certifications including ISO 9001, ISO 14001, and ISO 45001. Their product range includes dangerous goods tankers, chemical storage tanks, refrigerated trucks, and specialized vehicle components, exported to over 30 countries worldwide.
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Manufacturing Process
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Certifications
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Customer Applications
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Project Examples
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Packaging
Manual Fuel Tanker Truck Unloading Valve Aluminium Alloy API Adaptor Valve for -20-70C Temperature Adjustment
Frequently Asked Questions
Q1. What are your payment terms?
T/T: 30% deposit, 70% balance before delivery. L/C available at higher price. We provide photos and video of finished products before final payment.
Q2. What delivery terms do you offer?
We support EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP, with FOB, CIF, and DAF being our primary options.
Q3. What is your typical delivery time?
Standard delivery is 10-20 days after receiving deposit. Right-hand drive vehicles require longer lead time. Exact terms specified in contract.
Q4. What is your quality guarantee?
All products undergo strict quality control and 100% testing before shipment. We offer 12-month warranty with free spare parts during this period.
Q5. How can we verify your company reliability?
Our facility has passed BV factory audit. Customers may arrange third-party inspections. With 15+ years in the industry, we maintain an excellent track record.
Q6. Can we visit your factory?
Our factory is located in Suizhou City, Hubei Province. Visitors typically arrive in Wuhan (provincial capital), where we provide transportation. Invitation letters available upon request.
