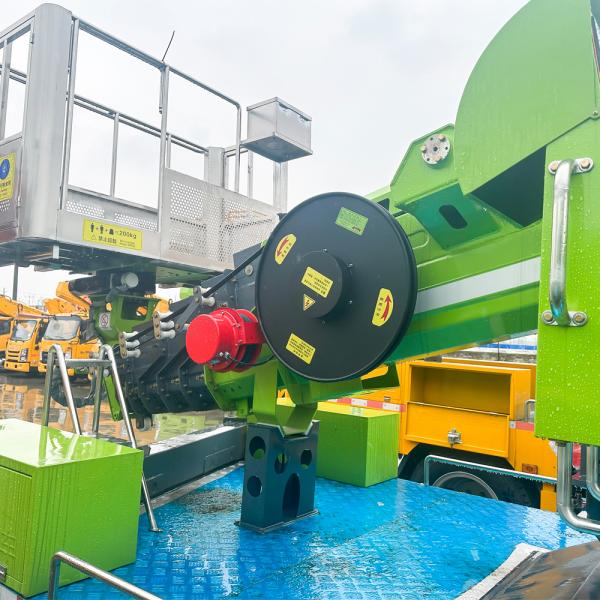

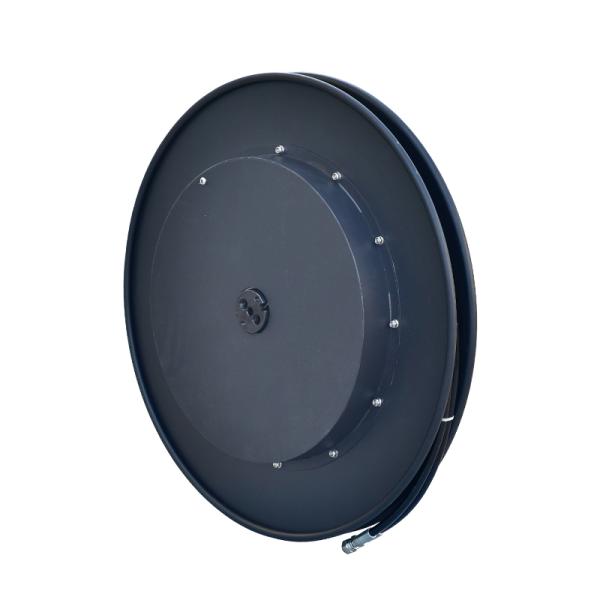

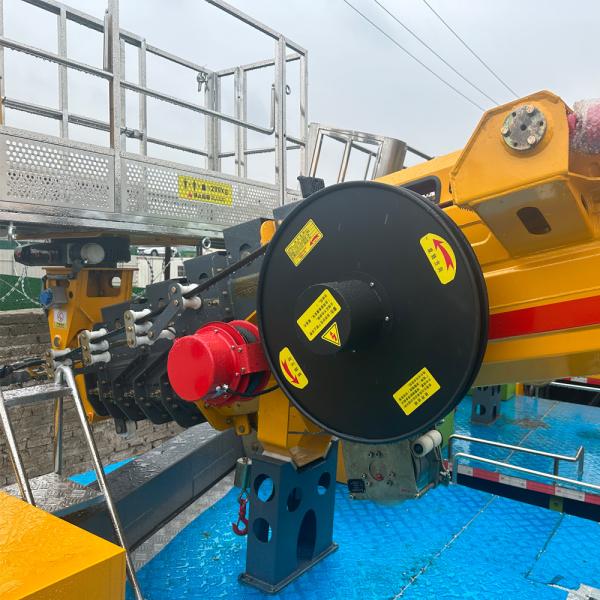

Max Pressure 30Mpa Spring Driven Hydraulic Hose Reel With 1/4 Dual Hose Auto Reacting Reel for Aerial Work Vehicle
Max Pressure 30Mpa Spring Driven Hydraulic Hose Reel With 1/4 Dual Hose Auto Reacting Reel for Aerial Work Vehicle
Max Pressure 30Mpa Spring Driven Hydraulic Hose Reel With 1/4 Dual Hose Auto Reacting Reel for Aerial Work Vehicle
Max Pressure 30Mpa Spring Driven Hydraulic Hose Reel With 1/4 Dual Hose Auto Reacting Reel for Aerial Work Vehicle
Max Pressure 30Mpa Spring Driven Hydraulic Hose Reel With 1/4 Dual Hose Auto Reacting Reel for Aerial Work Vehicle
Max Pressure 30Mpa Spring Driven Hydraulic Hose Reel With 1/4 Dual Hose Auto Reacting Reel for Aerial Work Vehicle
Max Pressure 30Mpa Spring Driven Hydraulic Hose Reel With 1/4 Dual Hose Auto Reacting Reel for Aerial Work Vehicle
Max Pressure 30Mpa Spring Driven Hydraulic Hose Reel With 1/4 Dual Hose Auto Reacting Reel for Aerial Work Vehicle
Max Pressure 30Mpa Spring Driven Hydraulic Hose Reel With 1/4 Dual Hose Auto Reacting Reel for Aerial Work Vehicle
Max Pressure 30Mpa Spring Driven Hydraulic Hose Reel With 1/4 Dual Hose Auto Reacting Reel for Aerial Work Vehicle
Specifications
Place of Origin :
Hubei, China
Brand Name :
HUATE
Model Number :
HT.GKC
Price :
$950/sets 1-9 sets
Packaging Details :
Wooden box
Delivery Time :
7-30 days
Payment Terms :
T/T
Working Voltage :
/
Flow Rate :
/
Warranty :
12 Months
Certificate :
/
Type :
Standard
Product Name :
Electric Dual Hydraulic Hose Reels High Pressure Spring Driven
Suit for :
Aerial Work Vehicle,Forklift,off-Road Vehicle
Material :
Carbon Steel
Max Pressure :
30Mpa
Driving method :
Spring Dirven
Oil Channel :
Dual
Oil pipe size :
1/4 inch
Package :
Carbon
Tube Retracting method :
Automatic retracting
Use :
Oil
Application :
Aerial Work Vehicle,Forklift,off-Road Vehicle
MOQ :
1
Supply Ability :
Meet large-scale orders
Description
Products Description
Hydraulic hose reels with factory-lubricated one-piece power spring makes installation safer and maintenance easier. Ideal for kinds of Cranes and forklifts. Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization. ● Heavy duty. All-steel construction. ● For two single hoses with bigger diameter and bigger usable hose length, with additional middle flange ● Available in Left or Right version ● Fixation by mounting flange ● Self winding by permanent spring force ● Full flow shaft swivels. ● Superior performance：Swivel and reel ball bearings reduce torque load on power spring for smooth retraction and durability. ● Corrosion resistant: Sealed bearings prevent contamination and minimize maintenance. ● Easy installation and maintenance：Factory lubricated one-piece power spring cassette make installation safer and maintenance easier. ● Adjustable and Versatile：Guide arm adjust to wall,floor,vehicle, overhead positions. Narrow design allows for maximum use of available space.
Weight
41 kg-49kg
Hose I.D.
1/4"
Hose O.D.
1/2"
Hose Length
15.5-25M Customized
Pressure
30 Mpa
Hose End
3/8" NPT(M)
Inlet
3/8" NPT(M)
Reel Outlet
M14 x 1.5 H NPT(M)
Hose Included
Yes
Operate Temperature
-40 to 80 Degree Celsius
