Specifications
Price :
$120/sets 1-9 sets
Packaging Details :
Wooden box
Delivery Time :
7-30 days
Payment Terms :
T/T
application :
General
port size :
3 Inch
warranty :
12 Months
place of origin :
Hubei, China
model number :
HT.XYF806-5
power :
Manual
temperature of media :
-20 to 70 Degree Celsius
brand name :
HUATE
structure :
BALL
media :
Oil
customized support :
OEM, ODM, OBM
Product Name :
3 Inch API Adapter Valve
Material :
Aluminum Alloy
Usage :
Oil Drain
Seal Material :
Aluminum Alloy
Working Pressure :
0.6 Mpa
Working Medium :
Gasoline and diesel, and up to E20 and B100 biofuels
Working Temperature :
Standard: -20 C~70 C
MOQ :
1
MOQ :
1
Supply Ability :
Meet large-scale orders
Description

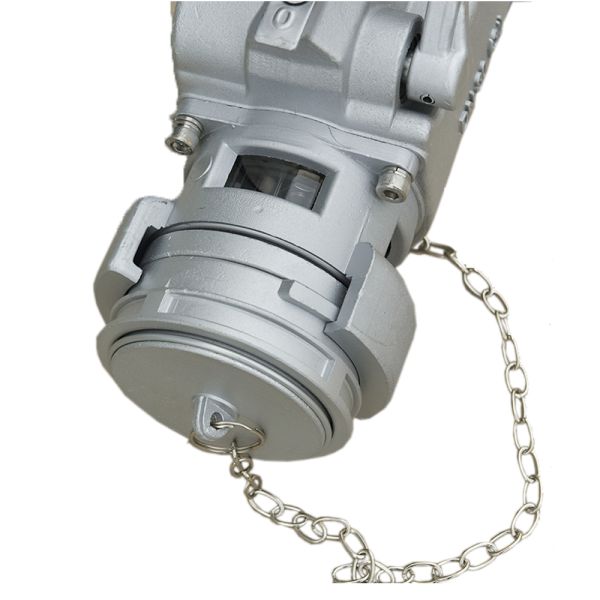

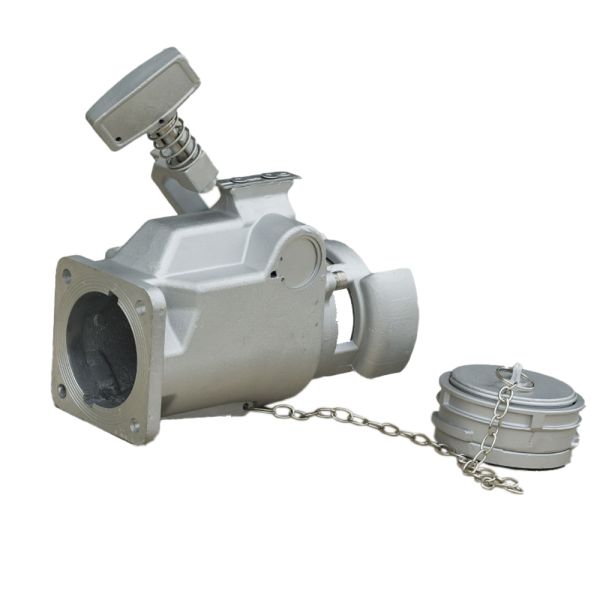

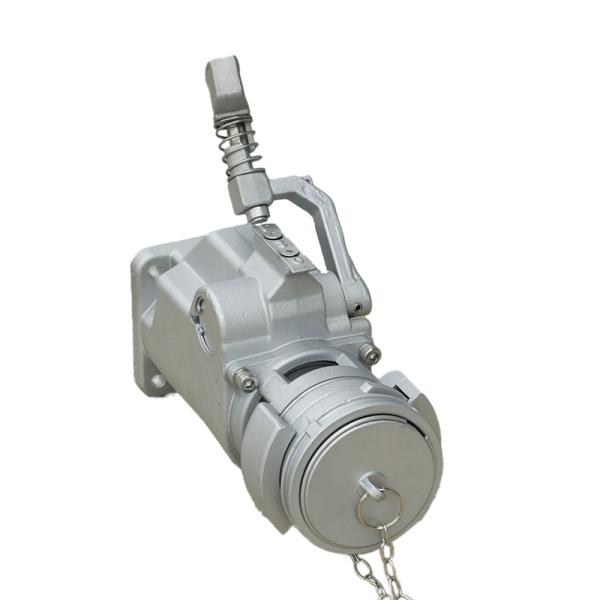

3 Inch Aluminium French Discharge Valve for Fuel Tank Truck
API Valve Unloading Valve Standard -20°C to 70°C
The French Style API Adapters are designed for bottom loading and unloading of petroleum tankers. These load/unload valves enable both terminal loading and fuel unloading through a single valve system. Engineered for maximum safety, high flow rates, and low-pressure drop, these valves offer easy maintenance and extended service life.
Key Features
  • French Style API Discharge Valve design
  • Unique fluid flow sight level indicator
  • Ergonomically curved handle operates on a short 62° stroke
  • Simplified maintenance - can be completely rebuilt without removing from tanker
  • Ideal for oil companies and petroleum product transporters
Technical Specifications
Name French Style API Discharge Valve
Model HY.XYF806
Diameter DN80 (3 inch)
Material Aluminum Alloy
Pressure Rating 0.6 Mpa
Control Mode Manual
Fuel Compatibility Gasoline, diesel, and up to E20 and B100 biofuels
Operating Temperature -20°C to 70°C
Product Gallery
