Specifications
Place of Origin :
Hubei, China
Brand Name :
CHUANCHU
Model Number :
HT.QDQ411F-16P
Price :
$168/pieces 1-9 pieces
Packaging Details :
Wooden box
Delivery Time :
7-30 days
Payment Terms :
T/T
Working Voltage :
/
Flow Rate :
/
Warranty :
12 Months
Certificate :
/
Type :
Valve
Product Name :
Emergency Bottom Valve for Asphalt/Crude
Material :
Carbon steel
Nominal Pressure :
0.6MPa
Medium :
Asphalt,Oil
Seal material :
Fluoro rubber
Package :
Carton
Customized Support :
ODM,OEM,OBM
Use :
Chemical
Application :
Tanker Truck
MOQ :
1
Supply Ability :
Meet large-scale orders
Description
Product Description

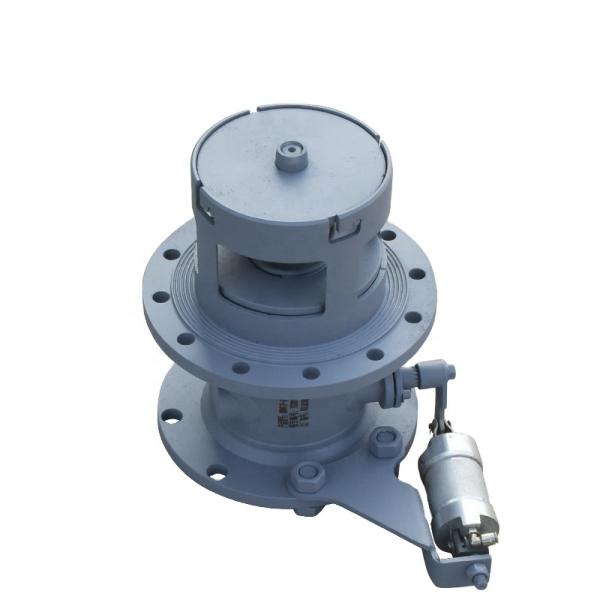

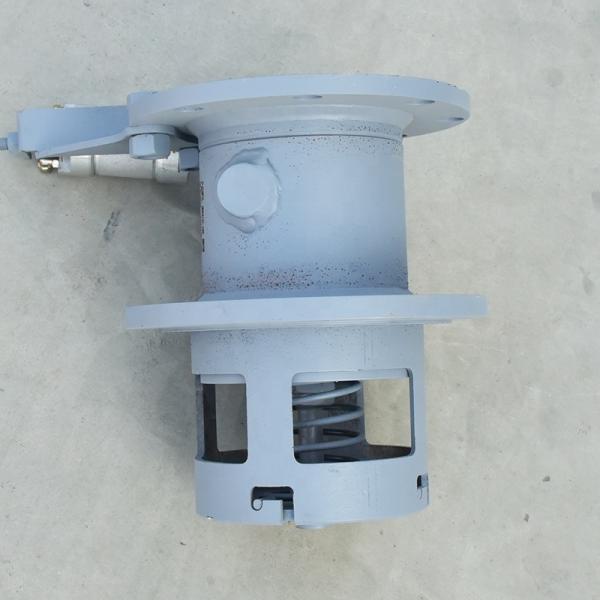

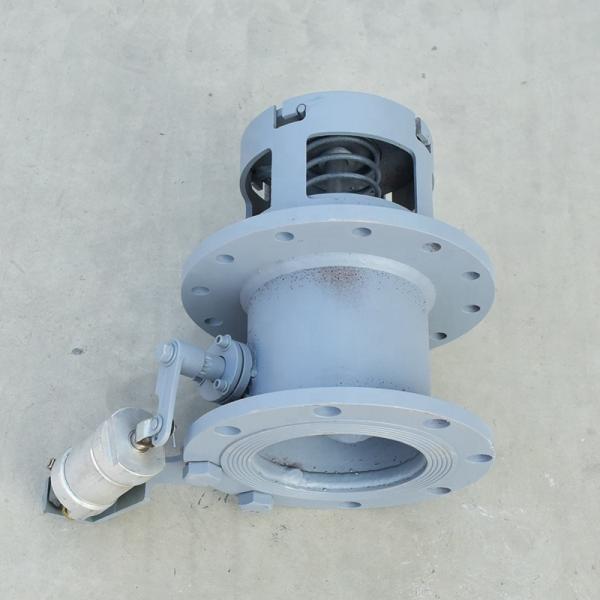

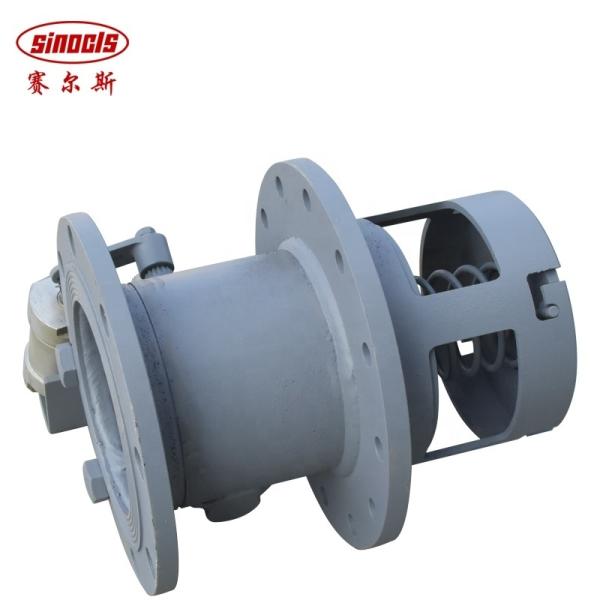

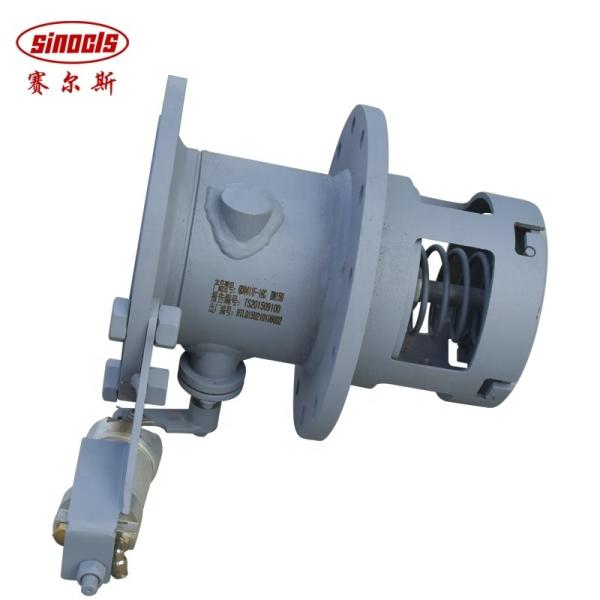

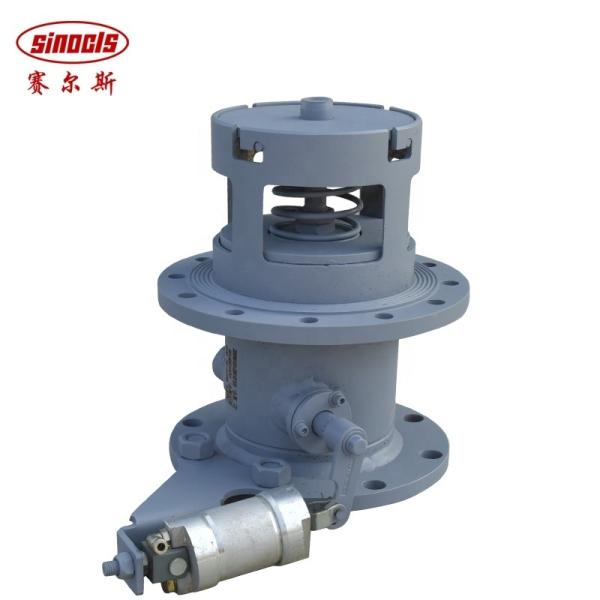

Pneumatic Emergency Bottom Valve for Asphalt/Crude

Emergency cut-off valve also named bottom loading valve.It's installed at the bottomof the tank.The main of the valve was installed inside of the tank.When the pipeline or valve is accidentally broken or damaged,the tank can still be sealed.So this valve can improve the safety and reliability of transportation.The main material is carbon steel formed by welding.Its structure is simple,durable and easy to maintain.This emergency cut-off valve is suitable for tankers transporting asphalt/oil.

Feature:

1.The automatic limit function is turned on,and the unloading is efficient,and the maximum flow rate is 4000L/min.

2.It has independent air cylinder and pneumatic control.Use the soft axis controller to operate in manual mode.

3.When the bottom of the tanker is hit,the emergency cut-off groove automatically breaks to separate the tank from the bottom and become an independent closed tank to prevent liquid leakage.

Product name Pneumatic Emergency Bottom Valve for Asphalt/Crude
Main Meterial Carbon steel
Nominal diameter DN150
Nominal pressure 0.6MPa
Design temperature -20ºC~+180ºC
Weight 25kg
Medium Asphalt,Oil
Seal material PTFE

Offer Carbon Steel Fuel Oil Tank Mechanical Pneumatic Emergency Bottom Valve For Asphalt / CrudeOffer Carbon Steel Fuel Oil Tank Mechanical Pneumatic Emergency Bottom Valve For Asphalt / CrudeOffer Carbon Steel Fuel Oil Tank Mechanical Pneumatic Emergency Bottom Valve For Asphalt / Crude

Company Information

Offer Carbon Steel Fuel Oil Tank Mechanical Pneumatic Emergency Bottom Valve For Asphalt / CrudeOffer Carbon Steel Fuel Oil Tank Mechanical Pneumatic Emergency Bottom Valve For Asphalt / CrudeOffer Carbon Steel Fuel Oil Tank Mechanical Pneumatic Emergency Bottom Valve For Asphalt / CrudeOffer Carbon Steel Fuel Oil Tank Mechanical Pneumatic Emergency Bottom Valve For Asphalt / Crude

Certifications

Offer Carbon Steel Fuel Oil Tank Mechanical Pneumatic Emergency Bottom Valve For Asphalt / Crude

Packaging & Shipping

Offer Carbon Steel Fuel Oil Tank Mechanical Pneumatic Emergency Bottom Valve For Asphalt / CrudeOffer Carbon Steel Fuel Oil Tank Mechanical Pneumatic Emergency Bottom Valve For Asphalt / Crude

FAQ

Q: Are you trading company or manufacturer? A: We are factory.

Q:Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost
Q: :How long have you worked in this field?
A: Over 15 years. Q:What's the delivery time? A: Standard products will be arranged to ship in 7-10 days after full payment received. Q: Can your factory produce products according to our drawings or samples? A: Yes, of course we can.
