MachineU > China Products

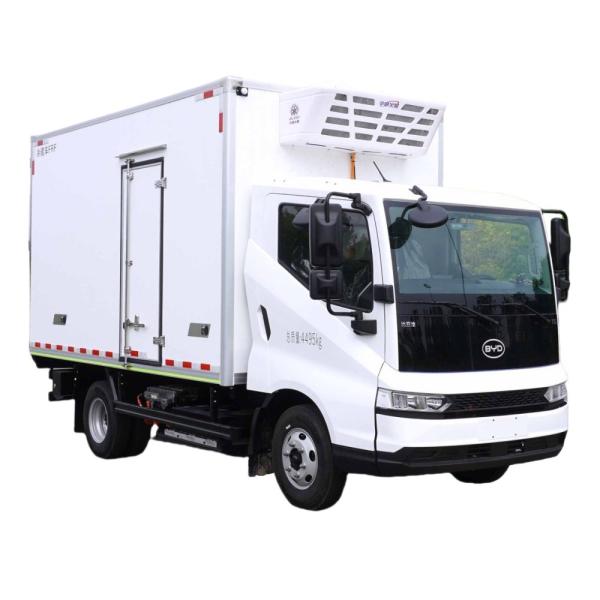

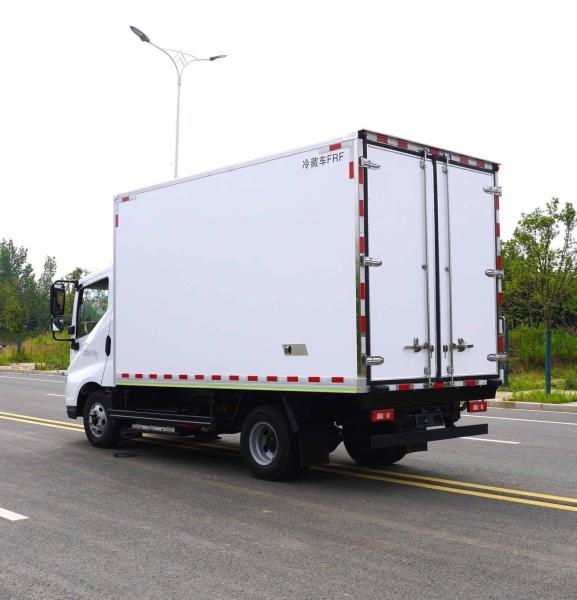

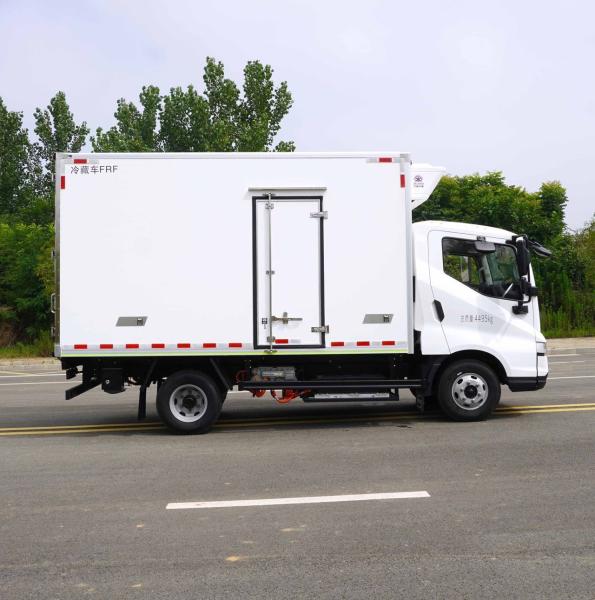

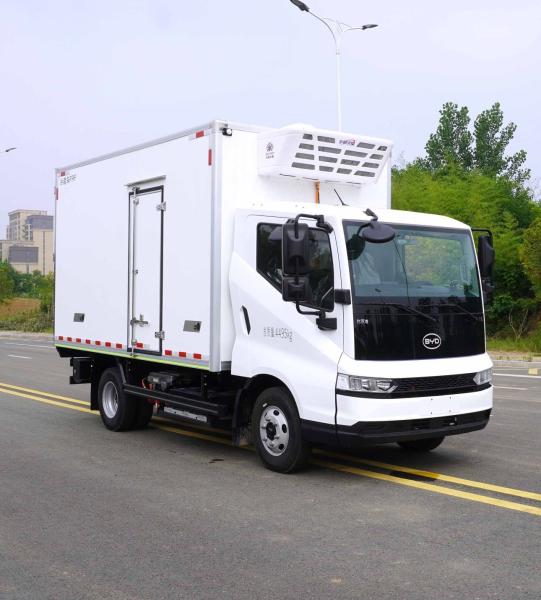

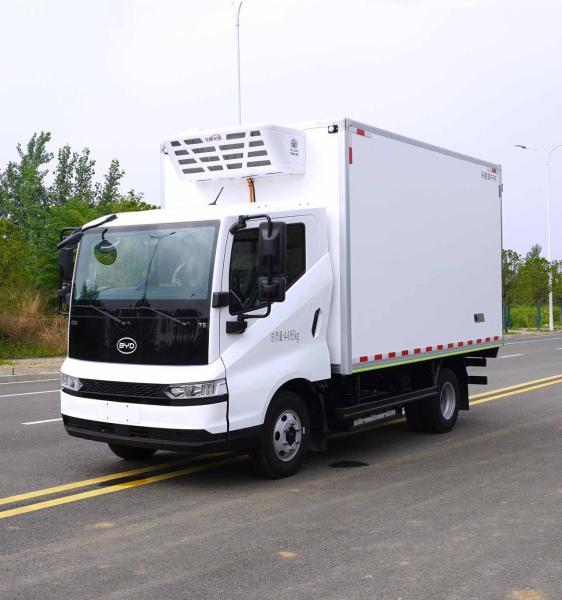

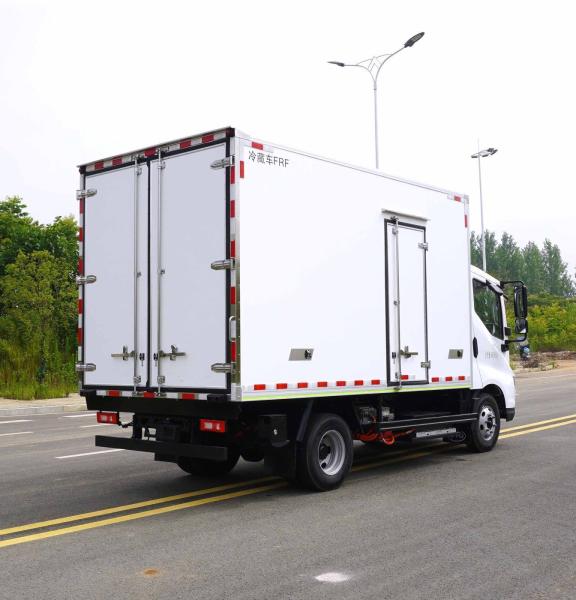

2024 BYD Design Pure Electric Hybrid Electric Vehicle 4.5T 4.03M EV Truck T5 Gasoline Dimensions L x W x H Energy Vehicle

Specifications

Condition :

New

Horsepower :

< 150hp

Emission Standard :

Euro 4

Fuel Type :

Gasoline

Dimensions (L x W x H) (mm) :

5998 * 2260 * 3380

Gross Vehicle Weight :

≤5T

After-sales Service Provided :

Onsite Installation, Video technical support, Online support

Maximum Torque(Nm) :

≤500Nm

Capacity (Load) :

1-10T

Engine Capacity :

< 4L

Color :

Custom's Requirement

Price :

$22,000/units 1-9 units

MOQ :

Packaging Details :

Wooden box

Delivery Time :

7-30 days

Payment Terms :

T/T

Supply Ability :

Meet large-scale orders

Description

Products Description

Product Paramenters

Vehicle technical parameters
Product na me	Pure electric refrigerat ed truck	Product Model	Type HTT5040XLCBEV
Total mass (Kg)	4495	Production add ress	Suizhou City, Hubei Province
Rated load weight (K g)	1050	Overall dimens ions (mm)	5998 * 2260 * 3380
Quality of preparati on (Kg)	3250	Axle Load	2020/2475
Number of people in the cab (p eople)	3	Number of shaf ts	2
Approach A ngle/depar ture Angle (。)	18/15	Front overhang /rear overhang (mm)	1135/1503
Wheelbase	3360	Maximum speed (Km/h)	100
Chassis technical parameters
Chassis mo del number	BYD1041A3BEVC2	Chassis brand	Truck chassis
Number of shafts	2	Number of tire s	6
Tire Speci fications	7.00R16LT 10PR
Number of leaf sprin g pieces	3/5 + 6, 3/5 + 7, 4/5 + 6, 4, 5 + 7, 5/5 + 6, 5/5 + 7
Front whee l base (m m)	1690	Rear wheel bas e (mm)	1570
Type of fu el	Pure electric	Anti-lock brak ing system	There are
Chassis wh eelbase	3360
Emission standards
Engine model		Displacement (ml)	Power (Kw)
TZ200XSY		0	150
After-sales service: If there is a after-sales problem, contact our customer service s taff in time, we will contact the staff to solve it for you

Company Profile

Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D and manufacturing and sales and import & export trading of special truck and truck accessories. It is a “ national high-tech “ enterprise and “ SRDI” enterprise. Our company was founded in February 2009 , located in Suizhou Hubei province which is the hometown of Yan Emperor and ancient music of chimes, and it is the capital of special trucks in China. Huate main products: dangerous goods tank truck series, tank container series, chemical storage tank series, dangerous goods van series, refrigerated truck series, testing vehicle series, emergency rescue vehicle series, engineering vehicle series ,sanitation vehicle series, special vehicle parts series, used truck trading and other subdivision products. We have professional technical team, strong and experienced management team, efficient domestic and overseas sales team . Huate products not only lead the domestic advanced level, but also towards the international market, forming a diversified and serialized product pattern. Huate is driven by innovation , market-oriented and brand-led . It constantly improve product quality and management level, our company has fully passed the GB/T19001-2016 idt ISO9001:2015 quality system certificate and GB/T24001-2016 idt ISO14001:2015 environmental system certificate and GB/T45001-2020 idt ISO45001:2018 occupation health safety system certificate .Our products has passed international 3C compulsory certificate and tank container CCS certificate , with a number of invention patents . We have participated in the drafting of various national standards and industry standards. The company adheres to the business philosophy of "Create industry quality products. Strive to be an industry pioneer" , based on the design and manufacturing of intelligent and digital core components, we provide clients with intelligent solutions. With its differentiation and cost-effective advantages, we provide users with superior and mutually beneficial and win-win cooperation platform. Currently our products have been exported to Africa Middle East Southeast Asia America Europe more than 30 countries , well received by domestic and foreign users with favorable comments .

Manufacturing Technique

Certifications

Customer Photos

Project Show

Product packaging

FAQ

Q1. Payment term.
T/T ,30% as despite ,and 70% before delivery from factory.
L/C, L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.

Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF ,FCA ,DDU.DAP etc .
We mainly do FOB,CIF,DAF

Q3. Delivery time
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
(if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to
contract .)

Q4. Quality and warranty
We have Rich experience workers and engineer to control quality before and on production , we strictly follo STATE special trucks
technical specification and safety production specification . we 100% test trucks before delivery.
Our Warranty :12 months
We will provide the spare parts for free in one year.

Q5. How to trust us ?
Our company pass BV factory audit,And you also can arrange a third party inspect our factory.
We have been in this line for over 15 years, dealing with all kinds of trucks.

Q6.Visit our factory
Our factory are in suizhou city,hubei province, china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province,near our factory) .and our driver
will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
