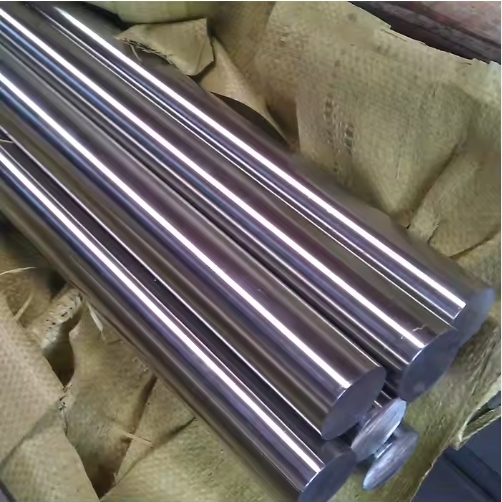

UNS N06601 Inconel 601 AWS 011 W.NR 2.4851 ASTM B166 Round Bar
UNS N06601 Inconel 601 AWS 011 W.NR 2.4851 ASTM B166 Round Bar
Specifications
Standard :
ASTM B166 / ASME SB166 AMS 5715 / DIN 17752
Surface :
Turned / Ground / Polished Peeled / Pickled / Bright
Place of Origin :
China
Delivery Time :
10–30 Working Days
Dia (mm) :
5 – 500
Grade :
UNS N06601 / W.Nr. 2.4851
Packaging Details :
Waterproof polybag + Export wooden pallet / wooden case
MOQ :
1 Piece / Small trial order acceptable
Brand Name :
HA Steel
Payment Terms :
T/T,L/C AT SIGHT
Length (mm) :
1000 – 6000
Description
Product Highlights
  • Aluminum-containing nickel-chromium heat-resistant alloy Inconel 601 (UNS N06601, EN standard 2.4851)
  • Forms dense self-repairing Al₂O₃ film for ultra-high anti-oxidation performance up to 1200°C
  • Excellent resistance to thermal cycling, anti-scaling & anti-spalling under repeated heating & cooling
  • Outstanding anti-carburization & anti-nitriding capacity for heat treatment furnace equipment
  • Balanced room & high-temperature mechanical strength, stable creep resistance at elevated temperature
  • Good ductility and reliable weldability without sensitization after long-time thermal exposure
  • Custom hot forging, hot rolling and full CNC precision machining per customer CAD drawings
  • Manufactured strictly complying with ASTM B166 international alloy bar standard
  • Long service life for industrial furnace, automotive exhaust and nitric acid equipment parts
Product Overview

This series of Inconel 601 round bars are hot forged & hot rolled solid nickel-chromium-aluminum alloy rods. After complete solution annealing and stress relief heat treatment, the material obtains uniform single-phase austenite grain structure, stable dimensional tolerance and excellent high-temperature comprehensive performance.

Inconel 601 is specially optimized for high-temperature oxidation service. The added aluminum element generates compact alumina protective layer, which solves the peeling problem of pure chromium oxide film under thermal cycles. It far surpasses Inconel 600 in furnace radiant tubes, heat treatment fixtures and high-temperature exhaust components, and maintains stable performance in nitric acid and mild corrosive environments.

Material Grade Characteristics – Inconel 601 (UNS N06601 / 2.4851)
  • Ni-Cr-Al solid solution strengthened heat-resistant alloy with controlled aluminum content
  • Superior cyclic oxidation resistance, no oxide layer peeling under frequent temperature fluctuation
  • Strong resistance to carburizing, nitriding and sulfur-containing high-temperature atmospheres
  • Retain stable tensile & creep strength at 900–1200°C continuous working temperature
  • Good cold & hot forming performance, easy for stamping, bending and complex machining
  • Low carbon design avoids intergranular carbide precipitation after welding & heating cycles
Chemical Composition (Weight %)
Grade EN Standard No. C ≤ Si ≤ Mn ≤ P ≤ S ≤ Cr Ni Al Cu ≤ Fe
Inconel 601 2.4851 0.10 0.50 1.00 0.03 0.015 21.0–25.0 58.0–63.0 1.0–1.7 1.0 Balance
Mechanical Properties (Solution Annealed, ASTM B166)
Property Inconel 601 Solution Annealed
Delivery Condition Solution Annealed, Stress‑Relieved, Pickled
Minimum Tensile Strength ≥550 MPa (80 ksi)
Minimum 0.2% Yield Strength ≥205 MPa (30 ksi)
Minimum Elongation (50mm gauge) ≥30 %
Maximum Brinell Hardness ≤210 HB
Related Material Grades
  • Inconel Series: 600, 601, 625, 690, 718, X-750, HX
  • Incoloy Series: 800, 800H, 800HT, 825, 925, G-3
  • Hastelloy Series: C4, C22, C276, C2000, B2, B3, G35
  • Monel & Pure Nickel: Monel 400 / K-500, Nickel 200 / 201
  • Duplex / Austenitic Stainless Steel: 2205, 2507, 304, 316L, 904L
  • PH Stainless Steel: 17-4PH, 15-5PH, 17-7PH
  • Alloy & Carbon Steel: 4140, 4340, F22, F91, A105, A516 Gr.70
Key Advantages
1. Superior Cyclic Oxidation Resistance

Aluminum element forms adherent Al₂O₃ protective film, effectively prevent oxide peeling under repeated heating & cooling, far better than Inconel 600 for furnace service.

2. Anti-Carburization & Anti-Nitriding Performance

Resist carbon/nitrogen infiltration in heat treatment furnaces, extend service life of trays, radiant tubes and retorts greatly.

3. Stable High-Temperature Creep Strength

Maintain reliable load-bearing capacity under long-term high-temperature continuous operation, not easy to deform or creep.

4. Excellent Fabrication & Weldability

High ductility supports all forming processes; no sensitization risk after welding without extra post heat treatment.

5. Moderate Aqueous Corrosion Resistance

Stable in atmospheric, freshwater and nitric acid mediums, fit chemical heating equipment components.

Typical Applications
  • Industrial furnace radiant tubes, muffles, heat treatment trays and fixtures
  • Carburizing / nitriding furnace liners, conveyor mesh and roller blanks
  • Automotive high-temperature exhaust pipes, EGR system components
  • Nitric acid production heating coils and high-temperature reactor parts
  • Thermocouple protection tubes, burner nozzles and flame shields
  • Waste incineration and power plant high-temperature furnace hardware
  • Aerospace high-temperature duct and heat shielding structural blanks
Processing Service

We provide integrated hot rolling, hot forging and full precision machining services, and can produce finished components strictly according to customer CAD/PDF drawings:

  • Custom fixed-length cutting, surface peeling, grinding and mirror polishing
  • CNC Turning, Milling, Planing, Drilling, Boring, Threading
  • Solution annealing & stress relief heat treatment customization
  • Gear cutting, special irregular profile forming & passivation treatment

We supply alloy shafts, hollow bars, furnace fixtures, fasteners and valve parts to furnace, chemical and automotive industrial clients worldwide.

Quality Assurance
  • UT Ultrasonic Testing to detect internal rolling & forging crack defects
  • Tensile & hardness tester for full mechanical property inspection
  • High-precision dimensional measuring instrument for tight tolerance control
  • Spectrometer full spectrum chemical composition analysis per batch
  • Metallographic microscope grain microstructure observation

Mill Test Certificate EN 10204 3.1 can be provided together with shipment documents before delivery.

Packing & Delivery
Packing

Inner packaging: waterproof anti-rust polybag for moisture, dust and scratch protection

Outer packaging: reinforced fumigated wooden case / wooden pallet for long-distance sea transportation

Custom special packaging solutions available upon customer request

Lead Time

Normally 10 – 45 days after receipt of advance payment. Exact delivery time depends on order quantity, bar diameter, length and customized machining & heat treatment requirements.
