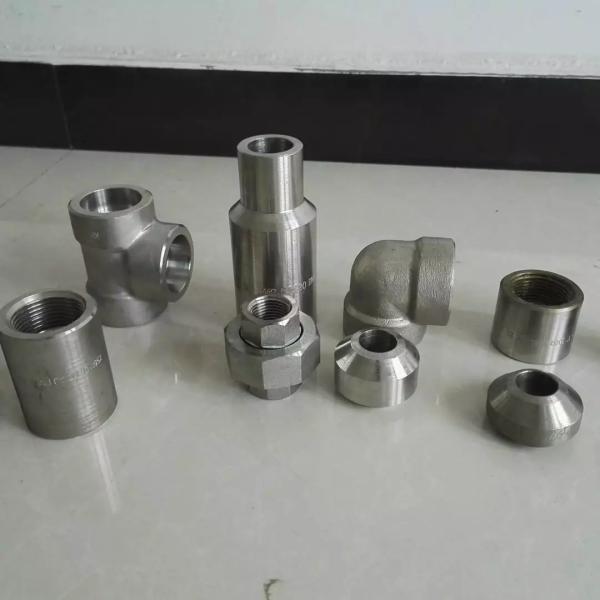

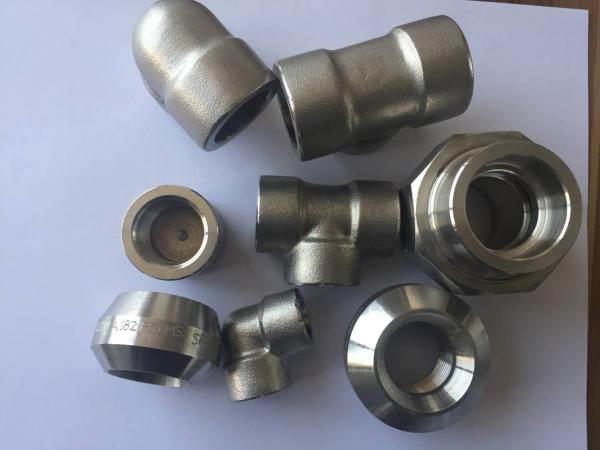

ISO Duplex Stainless Steel Pipe Fittings MSS SP79 83 95 97 Plywood Case Packing
ISO Duplex Stainless Steel Pipe Fittings MSS SP79 83 95 97 Plywood Case Packing
ISO Duplex Stainless Steel Pipe Fittings MSS SP79 83 95 97 Plywood Case Packing
ISO Duplex Stainless Steel Pipe Fittings MSS SP79 83 95 97 Plywood Case Packing
Specifications
Brand Name :
HT
Model Number :
Duplex Stainless Steel N08904 904L A182 F904L
Certification :
ISO,TUV,SGS,API,etc.
Place of Origin :
China
MOQ :
1PC
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal,etc.
Supply Ability :
100000pcs per day
Delivery Time :
2~30days
Packaging Details :
Plywood Case,Carton,Woven bag,etc.
Material :
Duplex Stainless Steel N08904 904L A182 F904L
Standard :
MSS SP79 83 95 97 BS3799
Size :
1/8''~36'' or larger
Class Rating :
2000 3000 6000 9000 LB
Ends :
Socket-welding/Threaded/BW
Type :
pipe fittings
Processing :
Forged
Packing :
Plywood case
Description

Duplex Stainless Steel N08904 904L A182 F904L MSS SP79 83 95 97 pipe fittings

1. Standard Specification For Stainless Steel ASTM A182 B649 904L Forged Pipe Fittings

Specifications : ASTM A182 & ASME SA182

Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)

Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Type : Socketweld Fittings, Screwed-Threaded Fittings

2. ASTM A182 B649 904L Stainless Steel Forged Fittings

Threaded and Socket Weld Pipe Fittings

Products Size
ASTM B649 904L Forged Cross ASTM B649 904L Inserts Sizes 1/8″– 4″
Pressure Ratings –
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
ASTM B649 904L Bushings ASTM B649 904L Pipe Nipple
ASTM B649 904L Forged Tees ASTM B649 904L Unions
ASTM B649 904L 90° Elbows ASTM B649 904L 45° Elbows
ASTM B649 904L Forged Plug ASTM B649 904L Street Elbows
ASTM B649 904L Forged Caps ASTM B649 904L Couplings
ASTM B649 904L Square head solid plug ASTM B649 904L Reducing Couplings
ASTM B649 904L Socket-Weld-Coupling ASTM B649 904L Socket Weld Inserts
ASTM B649 904L Bull Plug ASTM B649 904L Hex Head Bushing
ASTM B649 904L Hex Nipple ASTM B649 904L Threaded union (male x female)

3. B649 904L Forged Fittings Manufacturing Standards :

ASTM B649- ASME B649 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.11 Socket Welding and Threaded Forged Fittings
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95 Swage(d) Nipples and Bull Plugs
BS3799 Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry


4. Mechanical Properties of ASTM B649 904L Forged Pipe Fittings

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.95g/cm3 1350 °C (2460 °F) Psi – 71000 , MPa – 515 Psi – 32000 , MPa – 205 35 %

Chemical Composition of Grade B649 904L Stainless Steel High Pressure Fittings

Grade C Mn Si P S Cr Mo Ni Cu
SS 904L 0.020max 2.00max 1.00 max 0.040 max 0.030 max 19.00 – 23.00 4.00 – 5.00 max 23.00 – 28.00 1.00 – 2.00

ASME B649 904L Stainless Steel Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS Ks AFNOR EN
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5L Z2 NCDU 25-20 X1NiCrMoCu25-20-5

5. ASTM B649 904L Stainless Steel Forged Fittings (Our Specialization)

Stainless Steel 904L Forged Pipe Fittings Stainless Steel 904L High Pressure Forged Fittings
Stainless Steel 904L Socket Weld Fittings Stainless Steel 904L Threaded Fittings
Stainless Steel UNS S32100 Socket Weld 90 Deg Elbow Stainless Steel 904L Threaded 90 Deg Elbow
904L Socket Weld 45 Degree Elbow Suppliers ANSI 904L Stainless Steel Screwed 45 Degree Elbow
904L Forged Tee Dealer 904L Threaded Tee Exporter
904L Socket Weld Cross Stockholder Steel 904L Threaded / Screwed Cross Distributors
Stainless Steel SUS 904L Socket Weld Half Coupling 904L Threaded Half Coupling Manufacturer
Stainless Steel DIN 1.4301 Full Coupling Stainless Steel BS 321S31 Coupling Trader
Stainless Steel 904L Socket Weld Cap Stainless 904L Screwed Cap
ANSI B16.11 904L Socket Weld Union 904L Threaded / Screwed Union Stockist
ASTM B649 904L Screwed Hex Plug ASME B649 904L Square Plug
Stainless Steel 904L Reducing Tee 904L Threaded / Screwed Bushing
B649 904L Hex Nipples ASME B649 904L Swage Nipple
Steel 904L Threaded Street Elbow 904L Threaded / Screwed Pipe Nipple
Stainless Steel 904L Socket weld Unequal Tee 904L ASME B16.11 Threaded Unequal Tee

ISO Duplex Stainless Steel Pipe Fittings MSS SP79 83 95 97 Plywood Case Packing
