Forged Rings Disc Duplex Stainless Steel Flanges ASTM A182 347H DN10 - DN1500
Forged Rings Disc Duplex Stainless Steel Flanges ASTM A182 347H DN10 - DN1500
Forged Rings Disc Duplex Stainless Steel Flanges ASTM A182 347H DN10 - DN1500
Forged Rings Disc Duplex Stainless Steel Flanges ASTM A182 347H DN10 - DN1500
Specifications
Brand Name :
HT
Model Number :
Stainless Steel 347H
Certification :
ISO SGS BV TUV CE,etc.
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
1~15days
Packaging Details :
wooden case, wooden pallet
Type :
SO BL SW TH LJ WN Flange
Standard :
DIN,ANSI,ASME,JIS,GB
Material :
Stainless Steel 347H
Size :
DN 10-DN 1500
Description

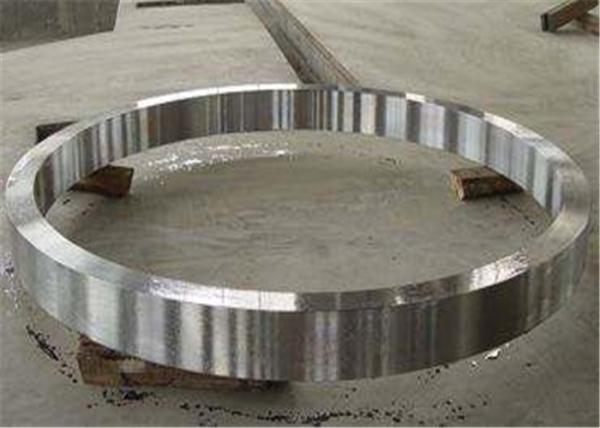

ASTM A182 347H Stainless Steel Forged rings disc Duplex Stainless Steel Flanges

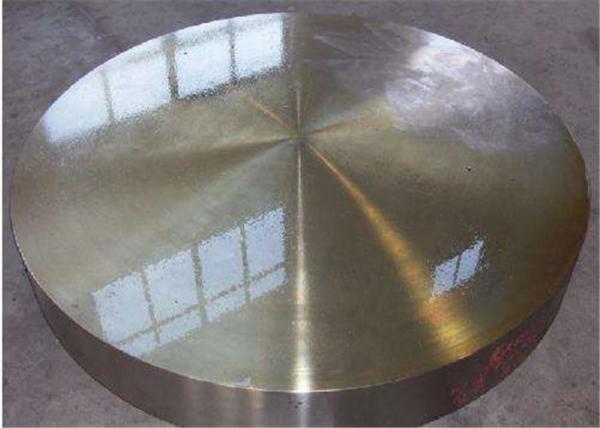

1.What is Forged disc

Forged discs, also known as pancake forgings, are used for a variety of general industrial equipment and machinery used by the steel, power generation and power transmission industries. Forged discs are also used in valves, fittings, high pressure and oil field applications.

2.AISI 347H Stainless Steel Flanges Specification

Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Standards : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges etc.
Specifications : ASTM A182 / A240, ASME SA182 / SA240
Size : 1 / 2" (15 NB) to 48" (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

3.ASTM A182 Stainless Steel 347H Flanges Equivalent Grades

STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
SS 347H1.4961S34709SUS 347H---X7CrNiNb18-10



4.347H Stainless Steel Flanges Chemical Composition

GradeCMnSiPSCrMoNiNCo + Ta
SS 347H0.04 – 0.102 max0.75 max0.045 max0.030 max17 – 193 – 49 – 13-8xC min
1.00 max



5.347H Stainless Steel Pipe Flanges Mechanical & Physical Properties

DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
8.0 g/cm31454 °C (2650 °F)Psi – 75000 , MPa – 515Psi – 30000 , MPa – 20535 %


6.Material Testing

PMI Testing, Ultrasonic Test, Mechanical Testing, Spectro Tests for Chemical Analysis of the grade, Flaring Test, IGC, etc.

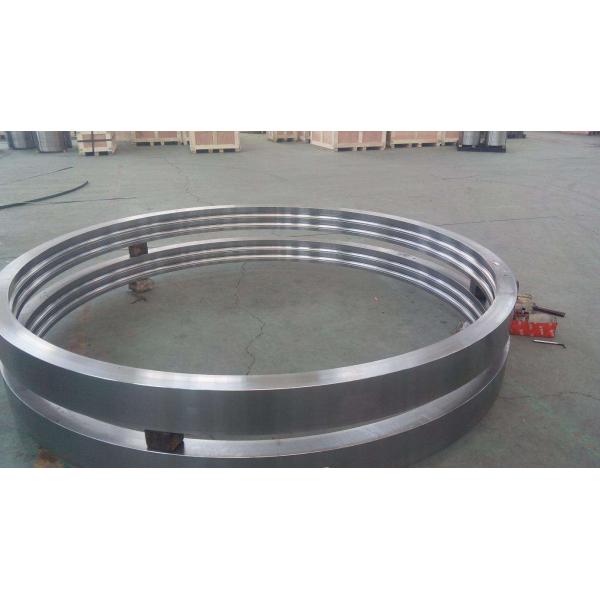

Forged Rings Disc Duplex Stainless Steel Flanges ASTM A182 347H DN10 - DN1500
