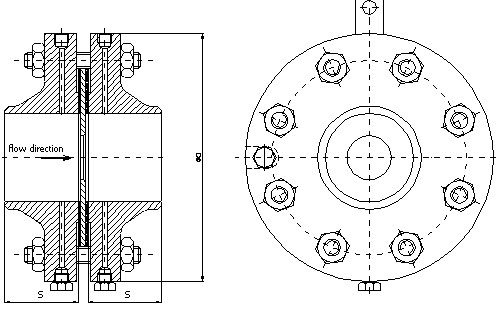

ASME B16.36 Forged Orifice Flange ASTM A182 F316 F316L F316Ti Stainless Steel Flange
ASME B16.36 Forged Orifice Flange ASTM A182 F316 F316L F316Ti Stainless Steel Flange
ASME B16.36 Forged Orifice Flange ASTM A182 F316 F316L F316Ti Stainless Steel Flange
ASME B16.36 Forged Orifice Flange ASTM A182 F316 F316L F316Ti Stainless Steel Flange
Specifications
Brand Name :
HT
Model Number :
Stainless Steel 316 316L 316Ti
Certification :
ISO SGS BV TUV CE,etc.
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000000pcs per month
Delivery Time :
1~15days
Packaging Details :
plywood case,pallet,etc.
Type :
Orifice Flange
Standard :
DIN,ANSI,ASME,JIS,GB
Material :
Stainless Steel 316 316L 316Ti
Size :
1/2"-48"
Pressure :
150#-2500#
Process :
CNC Processing,Casting,forged
Application :
Power generation,gas and oil pip,Pipe Tube Connection,Chemical and petrochemical,Industry
Sample :
For free,Avaliable,but you need to pay for the freight charge for the samples
Description

ASME B16.36 Forged Orifice Flange ASTM A182 F316 F316L F316Ti Stainless Steel Flange

1. Information about 316 316L 316Ti

Specifications – Stainless Steel 316 / 316L / 316Ti

STANDARD 316 316L 316TI
UNS S31600 S31603 S31635
WERKSTOFF NR. 1.4401 1.4404 1.4571

Physical Properties – SS 316 / SS 316L / SS 316Ti

DENSITY 7.99 g/cm 3 / 0.29 lb/in 3
MELTING POINT 1371 – 1399 (°C) / 2500 – 2550 (°F)
ANNEALED 1040 (°C) / 1900 (°F)
QUENCH Rapid Air/Water

Chemical Composition – 316L / 316Ti / 316 Stainless Steel

ELEMENT 316 316L 316TI
NI 11.0 – 14.0 10.0 – 14.0 10.0 – 14.0
C 0.08 max 0.035 max 0.08 max
MN 2.0 max 2.0 max 2.0 max
P 0.045 max 0.045 max 0.045 max
S 0.30 max 0.30 max 0.30 max
SI 1.0 max 1.0 max 0.75 max
CR 16.0 – 18.0 16.0 – 18.0 16.0 – 18.0
MO 2.0 – 3.0 2.0 – 3.0 2.0 – 3.0
TI 5x(C+N) – 0.70
N 0.10 max

2. ANSI B16.36 Orifice Flanges Manufacturers, Exporters & Suppliers in China.
ASME B16.36 Forged Orifice Flange ASTM A182 F316 F316L F316Ti Stainless Steel Flange

Material:
1. Stainless Steel ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M,
CF3M, DIN1.4301, DIN1.4306, DIN1.4401, DIN1.4404, DIN1.4308, DIN1.4408, DIN1.4306, DIN1.4409
2. Carbon Steel ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN1.0402, DIN1.0460, DIN1.0619

Dimension: ANSI/ASME B16.36

Size: 1/2"-24"

Pressure: Class 300, Class 600, Class 900, Class1500, Class 2500

Face Type: Raise Face (RF), Ring Joint (RJT)

Coating: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized


3. OTHER TYPES OF FLANGES

» Plate Flanges » 300Lbs Flanges
» Ring Type Joint Flanges » 600Lbs Flanges
» Drawing Flanges » 900Lbs Flanges
» Square Flanges » 1500Lbs Flanges
» Nipo Flanges » 2500Lbs Flanges
» Reducing Flanges » DIN Flanges PN6-PN40
» Forged Flanges
» ANSI B16.5 Flanges
» ASME B16.47 Series A Flanges
» ASME B16.47 Series B Flanges
» ANSI B16.36 Orifice Flanges
» 150Lbs Flanges

4. ORIFICE FLANGE STANDARDS

ASME STANDARDS

ASME B16.36 - Orifice Flanges

Slip-on Flange: Class 300, Class 400, Class 600, Class 900, Class 1500

Threaded Flange: Class 300, Class 400, Class 600, Class 900, Class 1500

Weld Neck Flange: Class 300, Class 400, Class 600, Class 900, Class 1500, Class 2500

5. SS Flanges Application Industries

Off-Shore Oil Drilling Companies

Power Generation

Petrochemicals

Gas Processing

Specialty Chemicals

Pharmaceuticals

Pharmaceutical Equipment

Chemical Equipment

Sea Water Equipment

Heat Exchangers

Condensers

Pulp and Paper Industry

ASME B16.36 Forged Orifice Flange ASTM A182 F316 F316L F316Ti Stainless Steel Flange
