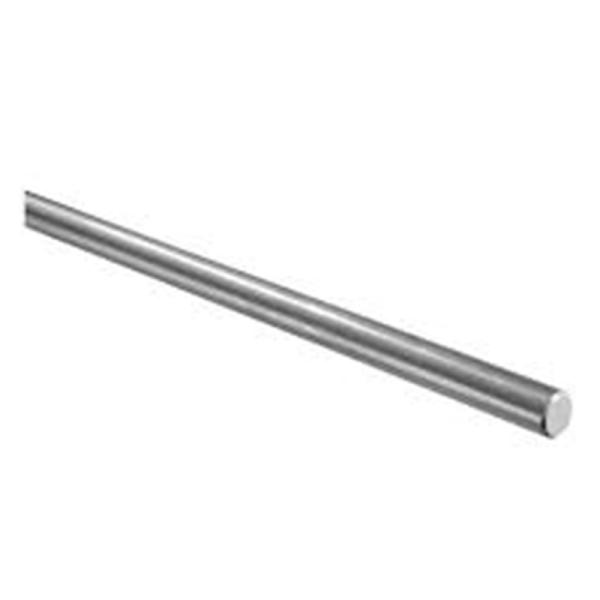

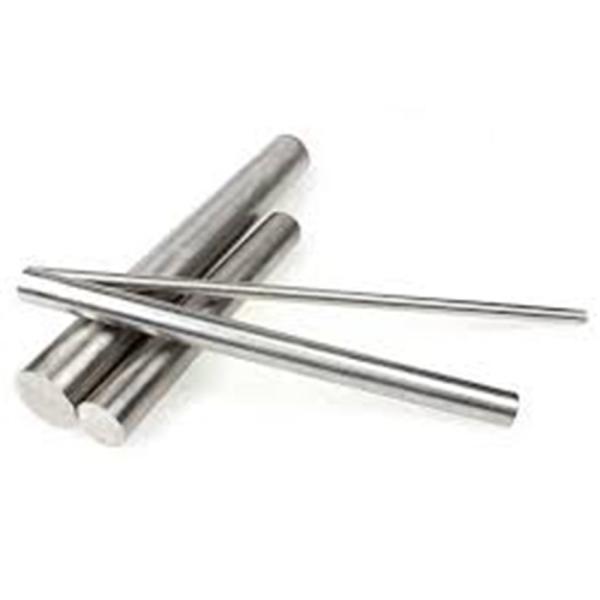

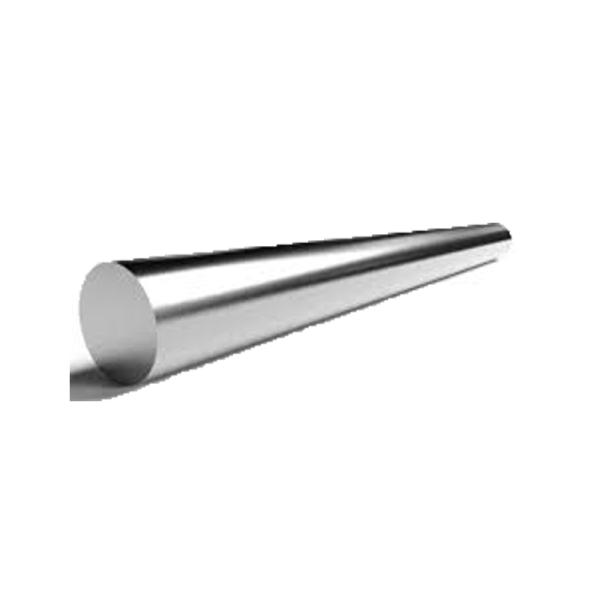

1.4438 ASTM A276 F317L F317 round bar stainless steel bar rod
1.4438 ASTM A276 F317L F317 round bar stainless steel bar rod
1.4438 ASTM A276 F317L F317 round bar stainless steel bar rod
1.4438 ASTM A276 F317L F317 round bar stainless steel bar rod
Specifications
Brand Name :
HT
Model Number :
1.4438 ASTM A276 F317L F317 round bar stainless steel bar rod1.4438 ASTM A276 F317L F317 round bar stainless steel bar rod
Certification :
ISO SGS BV TUV,ETC.
Place of Origin :
China
MOQ :
1KG
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000kgs per month
Delivery Time :
5~60days
Packaging Details :
Plywood case,pallet,carton,etc.as per your requirements.
Product Name :
1.4438 ASTM A276 F317L F317 round bar stainless steel bar rod
Standard :
ASTM B166 / ASTM SB166
Type :
Plate,Sheet,Strip Coil
Length :
0~12mm or As Per Client's Requirements
Width :
0~2500mm or As Per Client's Requirements
Thickness :
0.3~1200mm or As Per Client's Requirements
Surface :
No.1 No.2D No.2B BA No.3 No.4 No.6 No.7
Process :
Hot/Cold Rolled
Description

1.4438 ASTM A276 F317L F317 round bar stainless steel bar rod

SS 317/317L Application:

Most commonly used in Paper and pulp handling equipment, Chemical and petrochemical processing equipment, Condensers in fossil and nuclear fueled power generation stations, Food processing equipment, Textile equipment.

Specification:

STANDARD WERKSTOFF NR. UNS JIS EN
SS 317L 1.4438 S31703 SUS 317L X2CrNiMo18-15-4

Standard 317 / 1.4449
317L / 1.4438
Designation ASTM, ASME, AISI A 276 , SA 276, A 479, SA 479
Range 3 MM TO 350 MM DIA
Finish Bright, Polish & Black
Form Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Application Paper and pulp handling equipment, Chemical and petrochemical processing equipment, Condensers in fossil and nuclear fueled power generation stations, Food processing equipment, Textile equipment.

Chemical Composition :

Grade C Mn Si P S Cr Mo Ni N
317 0.08 max 2 max 1 max 0.040 max 0.03 max 18 – 20 3 – 4 11 – 14 -
317L 0.035 max 2 max 1 max 0.040 max 0.03 max 18 – 20 3 – 4 11 – 15 -

Mechanical Properties :

Density 8.0 g/cm3
Melting Point 1454 °C (2650 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35 %

Physical Properties :

Physical Properties (Room Temperature)
Specific Heat (0-100°C)
500
J.kg-1.°K-1
Thermal Conductivity
14.6
W.m -1.°K-1
Thermal Expansion
16.5
mm/m/°C
Modulus Elasticity
193
GPa
Electrical Resistivity
7.4
μohm/cm
Density
7.99
g/cm3

1.4438 ASTM A276 F317L F317 round bar stainless steel bar rod

Types of 317L Stainless Steel Bars & Rods

Stainless Steel 317L Round Bars Stainless Steel 317L Forged Bars SS 317L Forged Round Rods
Stainless Steel 317L Cold Drawn Bars SS 317L Polished Round Bars Stainless Steel 317L Hot Rolled Bars
SS 317L Cold Rolled Bars Stainless Steel 317L Black Rods SS 317L Rod
Stainless Steel 317L Bright Bar SS 317L Hex Bar Stainless Steel 317L Square Rods
SS 317L Rectangular Bar Stainless Steel 317L Flat Bars SS 317L Polished Rods
Stainless Steel 317L Threaded Bar SS 317L Hexagonal Bar Stainless Steel 317L Oval Rods
SS 317L Flats Stainless Steel 317L Bar SS 317L Square Bars
Stainless Steel 317L Hexagonal Rod SS 317L Hex Rod Stainless Steel 317L Filler Wire
SS 317L Wire Stainless Steel 317L Angle SS 317L Wire Rods
