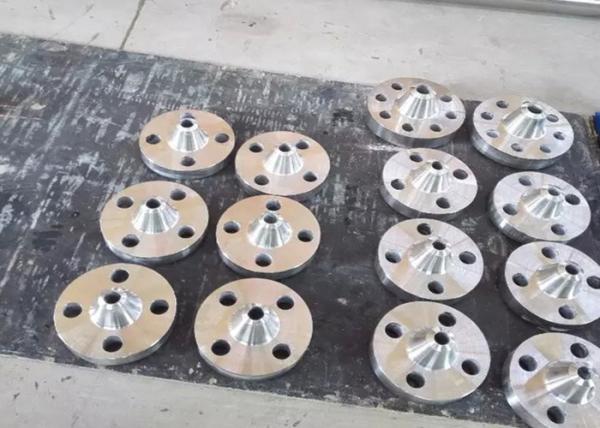

Alloy 625 Wn Bl Duplex Stainless Steel Flanges 5000psi 10000psi 15000psi Api 6a Type 6b 6bx Astm B564
Alloy 625 Wn Bl Duplex Stainless Steel Flanges 5000psi 10000psi 15000psi Api 6a Type 6b 6bx Astm B564
Alloy 625 Wn Bl Duplex Stainless Steel Flanges 5000psi 10000psi 15000psi Api 6a Type 6b 6bx Astm B564
Alloy 625 Wn Bl Duplex Stainless Steel Flanges 5000psi 10000psi 15000psi Api 6a Type 6b 6bx Astm B564
Specifications
Brand Name :
HT
Model Number :
5000PSI 10000PSI 15000PSI API 6A TYPE6B 6BX ASTM B564 Alloy 625 WN BL flange
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
30-35 working days
Packaging Details :
wooden case, wooden pallet
Product Type :
Flange, Disc, Foring, Shaft Sleeves
Name :
5000PSI 10000PSI 15000PSI API 6A TYPE6B 6BX ASTM B564 Alloy 625 WN BL flange
Size :
1/2"-24" DN10-DN1000
Class :
150#-2500#, PN6-PN100
Surface :
oil rusted, yellow
Material :
Nickel alloy/stainless steel/duplex stainless
Description

5000PSI 10000PSI 15000PSI API 6A TYPE6B 6BX ASTM B564 Alloy 625 WN BL flange

1. Inconel 625 WN SO SW BL flange useful information

Component Wt. %
Al Max 0.4
C Max 0.1
Co Max 1
Cr 20 – 23
Fe Max 5
Mn Max 0.5
Mo 8 – 10
Nb 3.15 – 4.15
Ni Min 58
P Max 0.015
S Max 0.015
Si Max 0.5
Ti Max 0.4

Physical Properties Metric English Comments
Density 8.44 g/cc 0.305 lb/in³


Mechanical Properties
Tensile Strength, Ultimate 880 MPa 128000 psi Annealed. Value at room temperature. Value at 650°C is 760 MPa.
Tensile Strength, Yield 460 MPa 66700 psi Annealed. Value at room temperature; 0.2% offset. Value at 650°C is 290 MPa.
Elongation at Break 50 % 50 % Annealed. Value at room temperature. Value at 650°C is 55%.
Electrical Properties
Electrical Resistivity 0.000129 ohm-cm 0.000129 ohm-cm
Magnetic Permeability 1.0006 1.0006 at 200 oersted (15.9 kA/m)
Curie Temperature Max -196 °C Max -321 °F

2. ASTM B564 Alloy 625 description

Flange Facing Flat face FF, raised face RF, Ring type joint RTJ
Design: ASMI B16.5, ASME B16.47 Series A ( MSS SP 44), Series B (API 605)
Working Pressure: Class 150, 300,400, 600, 900, 1500, 2500.
Size: 1/2’-24’
Material Class Group 3.1-3.19
Alloy Material to make Bar Ni-Cr-Fe alloy: alloy 020
Ni-Cr alloy: alloy 718, X-750, 80A.
Ni-Cr-Mo alloy: alloy 625, 686, C-22, C-2000, G-30, G-35.
Ni-Fe-Cr alloy: alloy 925.
Ni-Mo alloy: alloy B-2, B-3.
Ni-Mo-Cr alloy: alloy C-276.
Industry served:

Oil and gas, Chemical and petrochemical, Power generation, Marine, Aerospace, Defence.

3. Alloy 625 nickel alloy flange tests we do:

1. Raw material test

2. PMI test

3. Dimension test

4. Visual test

5. Penetrant test

6. Ultrasonic test

7. IGC test and so on.
