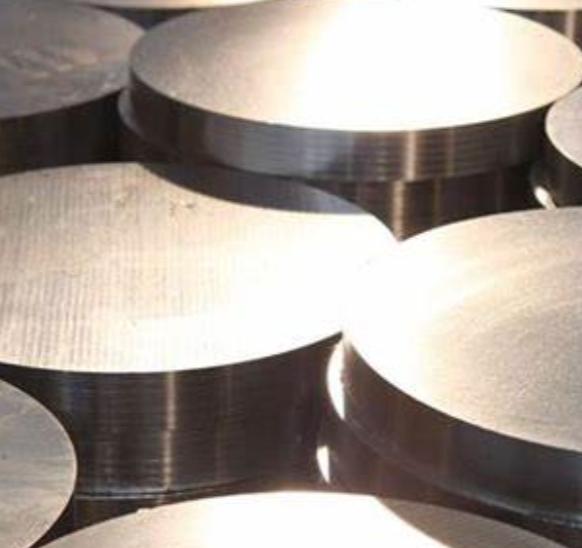

Inconel 625 Alloy ASTM Standard Nickel Chromium Molybdenum Alloy
Inconel 625 Alloy ASTM Standard Nickel Chromium Molybdenum Alloy
Inconel 625 Alloy ASTM Standard Nickel Chromium Molybdenum Alloy
Inconel 625 Alloy ASTM Standard Nickel Chromium Molybdenum Alloy
Specifications
Brand Name :
Zhonggong Special Metallurgy
Model Number :
Inconel625 Alloy
Place of Origin :
China
MOQ :
100KG
Price :
Price is negotiated based on the required specifications and quantity
Payment Terms :
Payment Terms: Mainly T/T.. L/C, D/A, D/P,
Supply Ability :
5000 tons per month
Delivery Time :
5-8 working days, depending on the parameters required for negotiation
Packaging Details :
Standard export packaging, or packaging as required
Name :
Inconel 625 Alloy
Chemical Composition :
Ni (58.0-63.0%), Cr (20.0-23.0%), Mo (8.0-10.0%), Fe (5.0% max), Co (1.0% max), Nb+Ta (3.15-4.15%), Mn (0.5% max), Si (0.5% max), C (0.1% max), S (0.015% max), P (0.015% max)
Density :
8.44 g/cm³
Melting Point :
1290-1350°C
Tensile Strength :
965 MPa (140 ksi)
Yield Strength :
690 MPa (100 ksi)
Elongation :
35% (minimum)
Modulus of Elasticity :
210 GPa
Thermal Conductivity :
11.7 W/m·K
Specific Heat Capacity :
0.43 J/g·K
Corrosion Resistance :
Excellent resistance to oxidation, carburization, and pitting
Certification :
ISO Certificate
Description

Inconel 625: High-Strength Nickel-Chromium-Molybdenum Alloy With Excellent Resistance To Oxidation And Corrosion

Inconel 625 Alloy

Inconel 625 is a high-performance nickel-chromium-molybdenum alloy renowned for its exceptional resistance to oxidation, corrosion, and high-temperature environments. This alloy combines outstanding mechanical properties with excellent weldability, making it ideal for demanding applications in harsh conditions.

Key Features:

  • Superior Corrosion Resistance: Inconel 625 excels in resisting oxidation, carburization, and pitting, even in aggressive environments such as marine and chemical processing.
  • High Temperature Stability: The alloy maintains its strength and integrity at temperatures up to 1800°F (982°C), making it suitable for high-temperature applications.
  • Mechanical Properties: Offers high tensile strength (up to 965 MPa or 140 ksi) and yield strength (690 MPa or 100 ksi), along with good elongation (minimum 35%), ensuring durability and flexibility in various applications.
  • Thermal Conductivity: With a thermal conductivity of approximately 11.7 W/m·K, Inconel 625 provides effective heat distribution and resistance to thermal cycling.
  • Fabrication Versatility: Available in various forms including sheets, plates, bars, pipes, and welding wire, accommodating a wide range of industrial and engineering needs.

Applications:

  • Aerospace: Used in turbine engines, exhaust systems, and other components exposed to extreme temperatures and corrosive environments.
  • Chemical Processing: Ideal for reactors, heat exchangers, and other equipment that encounters harsh chemicals and high temperatures.
  • Marine Environments: Suitable for applications in seawater and other corrosive environments where resistance to saltwater is crucial.

Standard Specifications:

  • ASTM B443
  • ASTM B444
  • ASTM B446

Inconel 625 provides a robust combination of high strength, excellent oxidation resistance, and superb weldability, making it a preferred choice for critical applications in extreme conditions.

Here is a detailed composition table for Inconel 625 Alloy:

Element Range Typical Value
Nickel (Ni) 58.0 - 63.0% 60.0%
Chromium (Cr) 20.0 - 23.0% 21.0%
Molybdenum (Mo) 8.0 - 10.0% 9.0%
Iron (Fe) ≤5.0% 4.5%
Niobium (Nb) + Tantalum (Ta) 3.15 - 4.15% 3.7%
Cobalt (Co) ≤1.0% 0.5%
Manganese (Mn) ≤0.5% 0.4%
Silicon (Si) ≤0.5% 0.3%
Carbon (C) ≤0.1% 0.05%
Sulfur (S) ≤0.015% 0.01%
Phosphorus (P) ≤0.015% 0.01%

This composition ensures that Inconel 625 provides excellent resistance to oxidation, carburization, and corrosion while maintaining high strength and durability.
