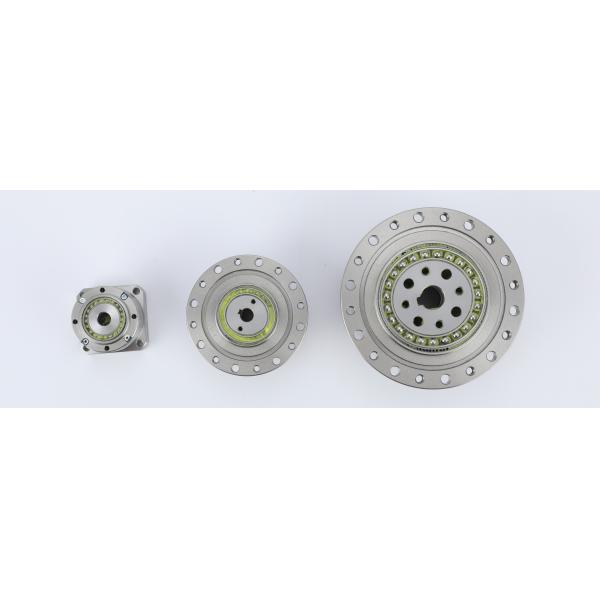

Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units
Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units
Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units
Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units
Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units
Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units
Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units
Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units
Specifications
Brand Name :
HONPINE
Model Number :
LSN-25-XX-U-I
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
To Be Negotiated
Payment Terms :
T/T
Supply Ability :
20000 Sets per Month
Delivery Time :
3-4 Weeks
Packaging Details :
Carton Box
Product :
Model 25 Harmonic Reducer
Material :
Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants
Reduction Ratio :
50:1, 80:1, 100:1, 120:1
Backlash :
≤20 Arc Sec
Average Input Speed :
3500 r/min
Maximum Input Speed :
5600 r/min
Design Life :
15000 hours
Model :
25
Weight :
1.14kg
Application :
Robot, Metal Machine Tools, Paper Machinery, Energy
Warranty :
1 Year
Features :
Flexibility in Design and Ease of Integration
Description

Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units

Key Features

• 1.46kg

• High Precision and Repeatability

• Smooth Motion and Low Noise
• Durability and Long Service Life

• Reduction ratios: 50:1, 80:1, 100:1, 120:1

Specifications

Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units

Rated parameters table of LSN-25-XX-U-I series

Model
 Reduction ratio Rated torque at 2000r/min input Permissible peak torque at start and stop Permissible maximum value for average load torque Permissible maximum momentary torque Permissible maximum input rotational speed Permissible average input rotational speed Backlash Weight Design life
Grease Grease
Nm kgfm Nm kgfm Nm kgfm Nm kgfm r/min r/min Arc Sec kg Hour
25 50 39 4 98 10 55 5.6 186 19 5600 3500 ≤20 LSN-I:1.14 10000
80 63 6.4 137 14 87 8.9 255 26 15000
100 67 6.8 157 16 108 11 284 29 15000
120 67 6.8 167 17 108 11 304 31 15000

Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units

Key Attributes of LSN-25-XX-U-I Strain Wave Reducer
Product Model 25 Strain Wave Reducer
Material
 Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants
Reduction Ratio
 50:1, 80:1, 100:1, 120:1
Backlash
 Less than 20 Arc Sec
Average Input Speed
 3500 r/min
Max Input Speed
 5600 r/min
Design Life
 15000 hours
Model
 25
Weight
 1.14 kg
Warranty 1 year
Application Paper Machinery, Energy, Aerospace, Robots

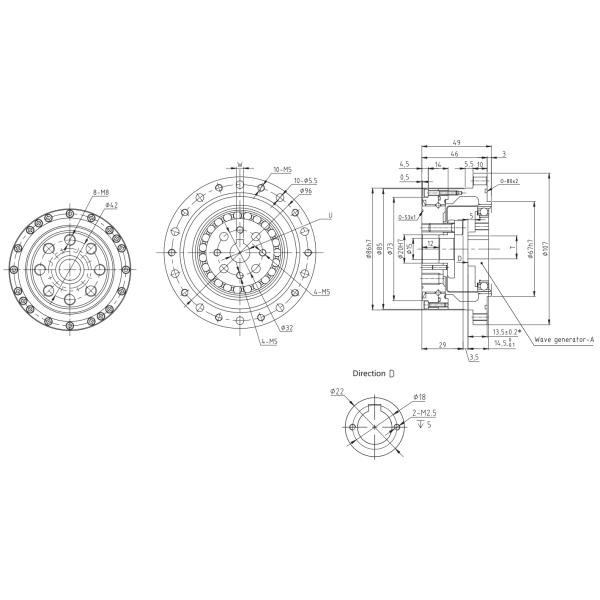

PDF Drawings Download

LSN-25-XX-U-I.pdf
