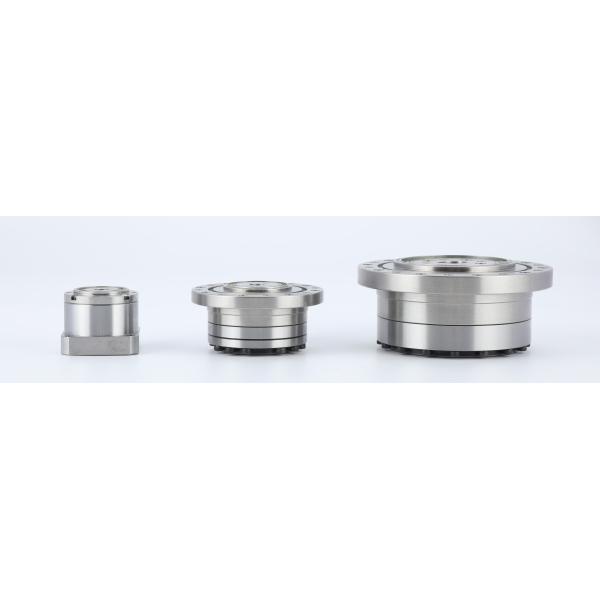

Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units
Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units
Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units
Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units
Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units
Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units
Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units
Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units
Specifications
Brand Name :
HONPINE
Model Number :
LSN-32-XX-U-I
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
To Be Negotiated
Payment Terms :
T/T
Supply Ability :
20000 Sets per Month
Delivery Time :
3-4 Weeks
Packaging Details :
Carton Box
Product :
Model 32 Harmonic Reducer
Material :
Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants
Reduction Ratio :
50:1, 80:1, 100:1, 120:1
Backlash :
≤20 Arc Sec
Average Input Speed :
3500 r/min
Maximum Momentary Torque :
686 Nm
Design Life :
15000 hours
Model :
32
Weight :
2.47kg
Application :
Metal Machine Tools, Paper Machinery, Energy, Industrial Robots
Warranty :
1 Year
Description

Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units

Key Features

• Weight: 2.47kg

• Less than 20 Arc Sec backlash

• Maximum Momentary Torque: 686Nm
• 15000 hours service life

• Reduction ratios: 50:1, 80:1, 100:1, 120:1

Specifications

Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units

Rated parameters table of LSN-32-XX-U-I series

Model
 Reduction ratio Rated torque at 2000r/min input Permissible peak torque at start and stop Permissible maximum value for average load torque Permissible maximum momentary torque Permissible maximum input rotational speed Permissible average input rotational speed Backlash Weight Design life
Grease Grease
Nm kgfm Nm kgfm Nm kgfm Nm kgfm r/min r/min Arc Sec kg Hour
32 50 76 7.8 216 22 108 11 382 39 4800 3500 ≤20 LSN-I:2.47 10000
80 118 12 304 31 167 17 568 58 15000
100 137 14 333 34 216 22 647 66 15000
120 137 14 353 36 216 22 686 70 15000

Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units

Key Attributes of LSN-32-XX-U-I Strain Wave Reducer
Product Model 32 Strain Wave Reducer
Material
 Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants
Reduction Ratio
 50, 80, 100, 120
Backlash
 Less than 20 Arc Sec
Average Input Speed
 3500 r/min
Max Input Speed
 4800 r/min
Design Life
 15000 hours
Model
 32
Weight
 2.47 kg
Warranty 1 year
Application Medical Equipment, Energy, Aerospace, Industrial Robots

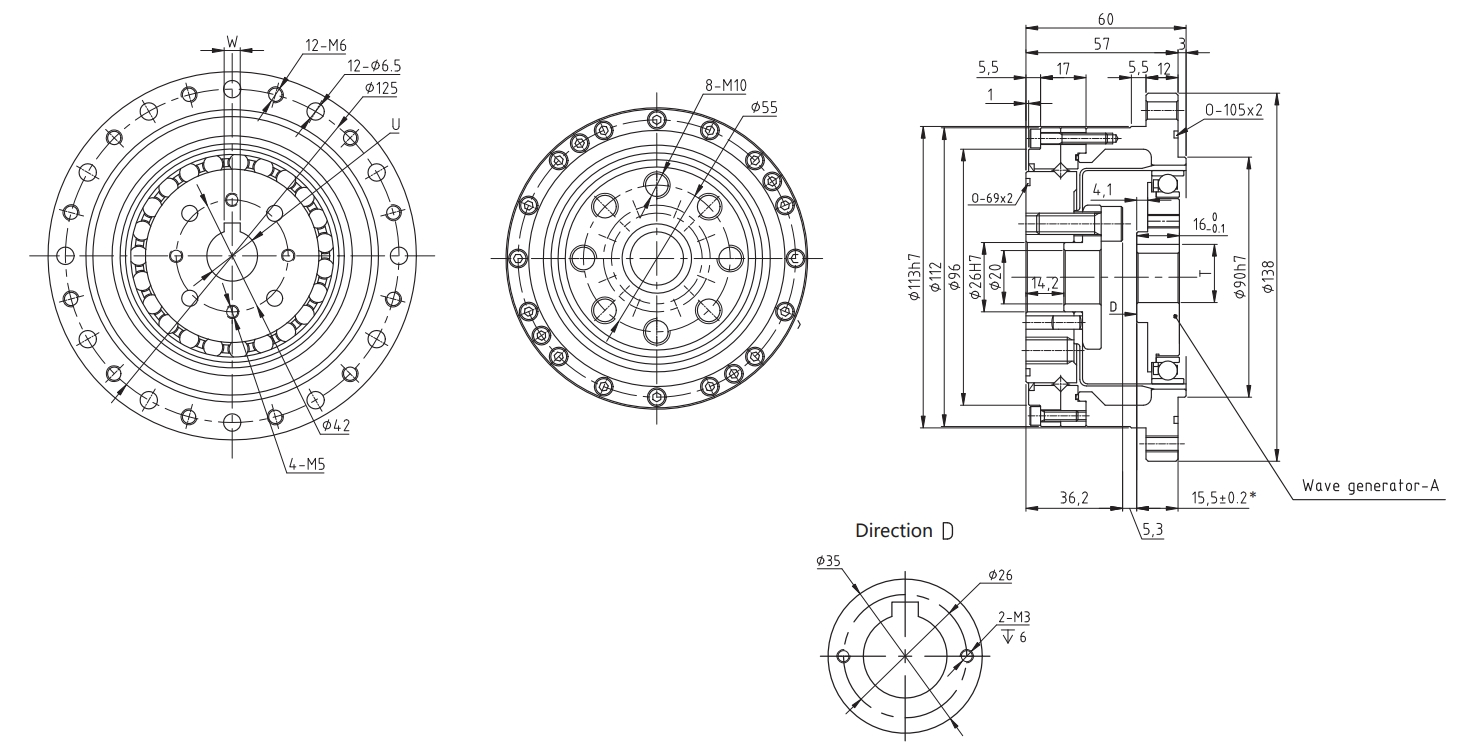

PDF Drawings Download

LSN-32-XX-U-I.pdf

Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units
