Robotic Harmonic Drive Strain Wave Gears Reducer Cross Slider Type
Robotic Harmonic Drive Strain Wave Gears Reducer Cross Slider Type
Robotic Harmonic Drive Strain Wave Gears Reducer Cross Slider Type
Robotic Harmonic Drive Strain Wave Gears Reducer Cross Slider Type
Robotic Harmonic Drive Strain Wave Gears Reducer Cross Slider Type
Robotic Harmonic Drive Strain Wave Gears Reducer Cross Slider Type
Robotic Harmonic Drive Strain Wave Gears Reducer Cross Slider Type
Robotic Harmonic Drive Strain Wave Gears Reducer Cross Slider Type
Specifications
Brand Name :
HONPINE
Model Number :
LSS-17-XX-U-II
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
To Be Negotiated
Payment Terms :
T/T
Supply Ability :
20000 Sets per Month
Delivery Time :
3-4 Weeks
Packaging Details :
Carton Box
Model :
17
Product :
Model 17 Strain Wave Reducer
Components :
Wave Generator, Flexspline, Circular Spline
Reduction Ratio :
50:1, 80:1, 100:1, 120:1
Backlash :
≤20 Arc Sec
Maximum Input Speed :
7300 r/min
Design Life :
15000 hours
Advantages :
High Torque Capacity, High Precision and Low Backlash
Weight :
0.67kg
Application :
Robotics, Aerospace, Medical Equipment, Industrial Machinery, Telecommunications, Renewable Energy
Warranty :
1 Year
Description

Robotic Harmonic Drive Strain Wave Gears Reducer Cross Slider Type

Robotic Harmonic Drive Strain Wave Gears Reducer Cross Slider Type

Application

Robotics

  • Industrial Robots: For precise movement and control in robotic arms, enabling accurate positioning and manipulation of objects in manufacturing and assembly lines.
  • Service Robots: Used in robots designed for tasks like cleaning, delivery, and personal assistance, where precise and reliable motion is essential.
  • Surgical Robots: In medical applications, such as robotic surgery, where extremely precise and smooth movements are crucial for successful outcomes.

Aerospace

  • Satellite Positioning: Used in the positioning and control of satellite components, where precision and reliability are critical.
  • Aircraft Control Systems: Employed in various control systems within aircraft to ensure precise movement and adjustments.

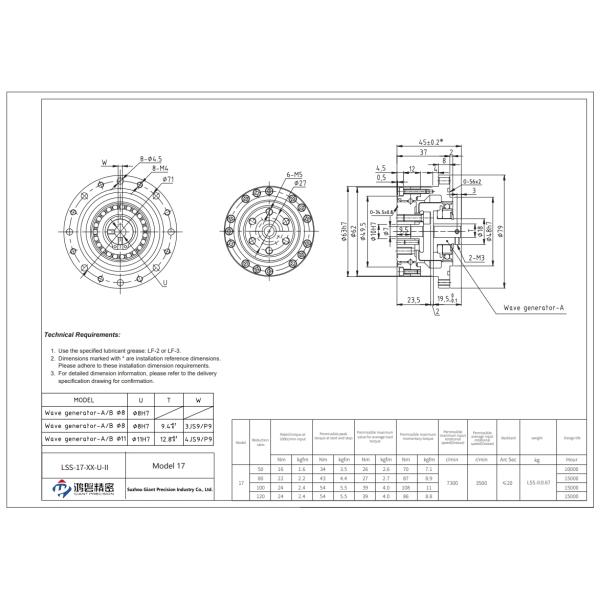

Model 17
Reduction ratio 50 80 100 120
Rated torque at 2000r/min input Nm 16 22 24 24
kgfm 1.6 2.2 2.4 2.4
Permissible peak torque at start and stop Nm 34 43 54 54
kgfm 3.5 4.4 5.5 5.5
Permissible maximum value for average load torque Nm 26 27 39 39
kgfm 2.6 2.7 4 4
Permissible maximum momentary torque Nm 70 87 108 86
kgfm 7.1 8.9 11 8.8

Permissible maximum input rotational speed

(Grease)

 r/min 7300

Permissible average input rotational speed

(Grease)

 r/min 3500
Backlash Arc Sec ≤20
Weight kg 0.67
Design life Hour 10000 15000 15000 15000

Robotic Harmonic Drive Strain Wave Gears Reducer Cross Slider Type

Robotic Harmonic Drive Strain Wave Gears Reducer Cross Slider Type Key Attributes of LSS - II Model 17 Harmonic Gear Units
Product Model 17 Harmonic Drive
Components
 Wave Generator, Flexspline, Circular Spline
Reduction Ratio
 50:1, 80:1, 100:1, 120:1
Backlash
 Less than 20 Arc Sec
Average Input Speed
 7300 r/min
Max Input Speed
 3500 r/min
Design Life
 15000 hours
Model
 17
Weight
 0.67 kg
Warranty 1 Year
