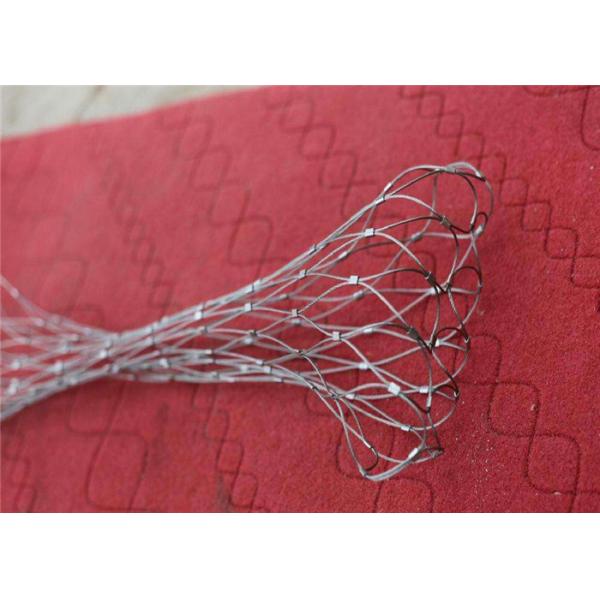

Small Zoo Chain Wire Mesh Fence , 60 * 60 Mesh Opening Wire Rope Net For Handrail 2m Width
Small Zoo Chain Wire Mesh Fence , 60 * 60 Mesh Opening Wire Rope Net For Handrail 2m Width
Specifications
Brand Name :
SS
Certification :
SGS
Place of Origin :
CHINA
MOQ :
100m2
Price :
US $12.5-35.65 / Square Meters
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000m2/day
Delivery Time :
10-15days after confirming the order
Packaging Details :
(1)bundles or as request (2)Inside the roll with "paper tube" to reduce the pressure while loading. Then wrapped with "plastic film" as well as the "woven bag" on the finished roll. Final loaded in the strong wooden case or as customers' requirement. (3)Th
material :
304 ,316 ,316L
cable type :
7*7 or 7*9
wire dia :
1.5mm,2.0mm,3.0mm
type :
weave
certificated :
SGS
mesh hole :
50*50mm
width :
1-3m
length :
50m or 100m/roll
weight :
1kgs/m2
sample :
free
Description

zoo mesh factory offer small steel rope wire net mesh/2m width 60*60 mesh opening wire rope net for handrail

Stainless Steel Ferrule Cable Nets is also called X Tend Cable Mesh, Flexible Cable Mesh Netting. Stainless Steel Ferrule Cable Nets is produced with high quality stainless steel wire cable and metal ferrule. Finished color nature and black.
The stainless steel wire cable grade includes AISI304, AISI304L, AISI316, AISI316L and there are 2 kinds of strand structure.
Flexible stainless steel rope mesh is the charateristic leading product of Mesh which has been manufacturing the product .

Small Zoo Chain Wire Mesh Fence , 60 * 60 Mesh Opening Wire Rope Net For Handrail 2m Width

Specifications:

Rope Diameter Mesh size Breaking load
inch mm inch mm lbs.
1/8 3.2 4.75 x 4.75 120 x 120 1,600
1/8 3.2 4 x 4 102 x 102 1,600
1/8 3.2 3.55 x 3.55 90 x 90 1,600
1/8 3.2 3 x 3 76 x 76 1,600
1/8 3.2 2 x 2 51 x 51 1,600
3/32 2.4 4 x 4 102 x 102 920
3/32 2.4 3.55 x 3.55 90 x 90 920
3/32 2.4 3 x 3 76 x 76 920
3/32 2.4 2.4 x 2.4 60 x 60 920
3/32 2.4 2 x 2 51 x 51 920
5/64 2.0 3 x 3 76 x 76 676
5/64 2.0 2.4 x 2.4 60 x 60 676
5/64 2.0 2 x 2 51 x 51 676
5/64 2.0 1-1/2 x 1-1/2 38 x 38 676
1/16 1.6 3 x 3 76 x 76 480
1/16 1.6 2 x 2 51 x 51 480
1/16 1.6 1-1/2 x 1-1/2 38 x 38 480
1/16 1.6 1.2 x 1.2 30 x 30 480
1/16 1.6 1 x 1 25.4 x 25.4 480
3/64 1.2 1-1/2 x 1-1/2 38 x 38 270
3/64 1.2 1.2 x 1.2 30 x 30 270
3/64 1.2 1 x 1 25.4 x 25.4 270
3/64 1.2 4/5 X 4/5 20 x 20 270
Application

The applications for this stainless steel mesh are accordingly verydiverse, both indoors and outdoors. Amongst other applications,it is used for balustrade in-fills, horizontal or vertical fall protection,dividers, façade cladding, green walls and versatile design elements.Complex zoolutions, such as lightweight, three-dimensional free-flight aviaries or big cat enclosures.

Rope material: high quality stainless steel 304, 316, 304L and 316L.

Rope diameter: 1.2mm to 3.2mm, and other rope diameters are also available.

Rope construction: 7 × 7 and 7 × 19 are the main used, and 1 × 7 and 1 × 19 are also supplied.

Cable diameter Mesh opening size Nominal break
inch mm inch mm lbs.
1/8 3.2 4x4 102x102 1600
1/8 3.2 3x3 76x76 1600
1/8 3.2 2x2 51x51 1600
3/32 2.4 4x4 102x102 920
3/32 2.4 3x3 76x76 920
3/32 2.4 2x2 51x51 920
5/64 2.0 3x3 76x76 676
5/64 2.0 2x2 51x51 676
5/64 2.0 1-1/2x 1-1/2 38x38 676
1/16 1.6 3x3 76x76 480
1/16 1.6 2x2 51x51 480
1/16 1.6 1-1/2x 1-1/2 38x38 480
1/16 1.6 1x1 25.4x25.4 480
3/64 1.2 1-1/2x 1-1/2 38x38 270
3/64 1.2 1x1 25.4x25.4 270
3/64 1.2 4/5x4/5 20x20

270

Small Zoo Chain Wire Mesh Fence , 60 * 60 Mesh Opening Wire Rope Net For Handrail 2m Width

Small Zoo Chain Wire Mesh Fence , 60 * 60 Mesh Opening Wire Rope Net For Handrail 2m Width

Our Delivering and Packing

1.About the DELIVERY: shipment to be made within 3-19 days after receiving your order

confirmation and payment.

2.As PACKING: we package the goods with plastic foam for inner packing and wooden cases

for outer packing.

3.If your order more than 50 square meters, we can offer you a good discount, but we also accept small order and trial order.
