Specifications
Brand Name :
VDL
Model Number :
CTSM615
Certification :
ISO 9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union , Paypal
Supply Ability :
1000, 000 pcs per month
Delivery Time :
30 days
Packaging Details :
5000 pcs each carton with dimension 20 X 22 X 20 cm , 500 cartons to a20 ft container
Material :
Carbon Steel
Hardness :
HV 250
Diameter :
M6
Length :
15
Drive :
Hex
Head :
Truss
Finish :
Zinc
Color :
Black
Description

Black ASME Hex Soket Button Head Screw Fastener 5/16 Standard Harden Screws

Truss head screws with hex socket , full fine machine threads and flat point , used for securing metal or wooden pieces , either work separately or combined with nuts .

Typical Features

Bright appearance

Corrosive resistance

Eco-friendly

No any burrs

Strict dimensions

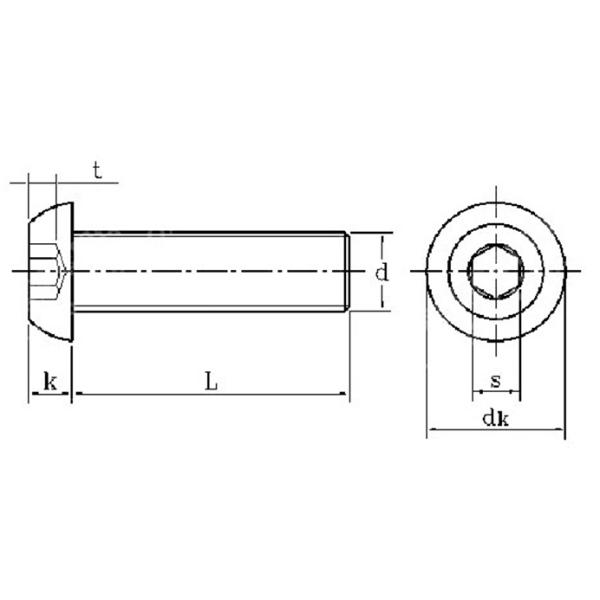

Black ASME Hex Soket Button Head Screw Fastener 5/16 Standard Harden Screws

Thread diameter d 6
Thread length L 15
Head height k 3.5
Head diameter dk 13.5
Hex socket depth t 2
Hex socket width s 4.05

Note : all dimensions are millimeters

M6 X 15 Truss head screw is made of carbon steel with black zinc finishing , property class 4.8 .

Material : SWRCH 1010

Density : 7.8

Hardness : HRC 15

Tensile strength : Mpa 410

Chemical elements

C Si Mn S P Alt
0.09 0.03 0.3 0.008 0.013 0.029

Truss head screw is plated in zinc for corrosion resistance and improve brightness.

Finishing Blac zinc
Standard RoHS ( 2002/95-EC )
Thickness 3 um
Color Black

Installation

Normally , truss head screw is installed by a wrench and it needs threaded hole that dimension is same as the screw’s and do not need nut to lock it from another end , but for some secure conditions , can be used with nuts to lock parts , eg ., a nut screwed onto screw from another side to secure a thin metal sheet on object .

Applied fields

Truss head screws are used to many fields in industry for various parts as a role of joint or collection for both or more parts .

We can provide more specifications for truss head screws , you can contact us via email group1@vedali.com for getting more information .
