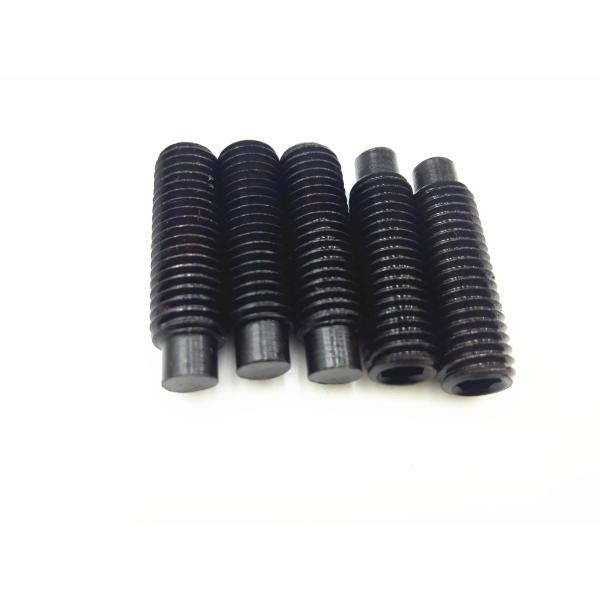

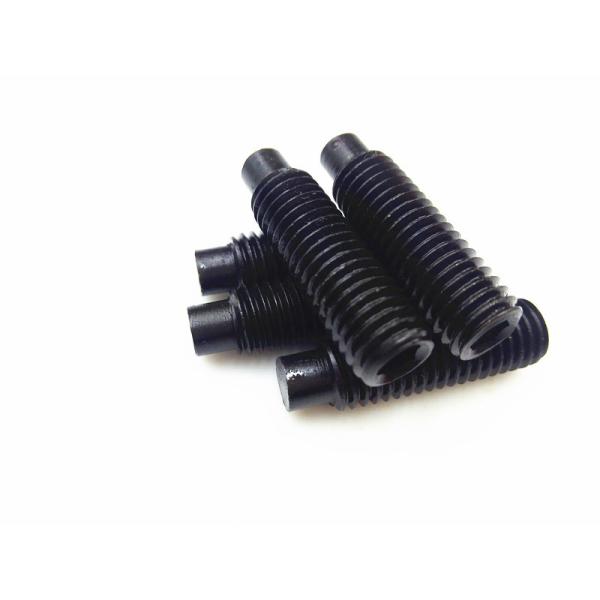

ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws
ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws
ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws
ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws
ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws
ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws
Specifications
Brand Name :
Runtai
Model Number :
Set Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability :
5 Ton/ days
Delivery Time :
15-20 working days
Packaging Details :
PP bag+Carton box+ Wooden Pallet
Size :
M1-M30 for choose
Material :
Steel, Stainless Steel, Brass, Aluminum Alloy
Grade :
4.8 8.8 10.9 12.9 for choose
Surface treatment :
zinc plated, nickel plated, black phosphates for choose
Standard :
DIN ISO JIS ANSI
Products Name :
ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws
Description

ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws

Products Description

Also known as half dog-point set screws, these set screws have a protruding tip that locks within a mating hole or slot to keep parts aligned.Length listed is the overall length.

Products Specification

Material Alloy Steel
Thread Size M10
Thread Pitch 1.5 mm
Length 50 mm
Tip, mm
Diameter 7
Diameter Tolerance -0.36 to 0
Length 5.3
Length Tolerance -0.3 to 0
Drive Size 5
Hardness Rockwell C45
Specifications Met DIN 915, ISO 4028
Thread Type Metric
Thread Spacing Coarse
Thread Fit Class 6g
Thread Direction Right Hand
Drive Style Hex
Tip Type Extended
Head Type Headless
System of Measurement Metric
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.

More Products Pictures

ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless ScrewsISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws
