Stainless Steel Chicago Binding Barrels and Screws Big Truss Head Slotted Drive Butt Screws
Stainless Steel Chicago Binding Barrels and Screws Big Truss Head Slotted Drive Butt Screws
Stainless Steel Chicago Binding Barrels and Screws Big Truss Head Slotted Drive Butt Screws
Stainless Steel Chicago Binding Barrels and Screws Big Truss Head Slotted Drive Butt Screws
Stainless Steel Chicago Binding Barrels and Screws Big Truss Head Slotted Drive Butt Screws
Stainless Steel Chicago Binding Barrels and Screws Big Truss Head Slotted Drive Butt Screws
Specifications
Brand Name :
Runtai
Model Number :
Chicago Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 Tons/day
Delivery Time :
15-20 working
Packaging Details :
PP bag+Carton box+ Wooden Pallet
Products Name :
Big Truss Head Slotted Drive Butt Screws
Grade :
4.8,8.8,10.9,12.9
Surface treatment :
Zinc plated, nickel plated, black phosphates for choose
Size :
M1-M60 For Choose
standard :
DIN, ASME,JIS,BS,FR and GB,Nonstandard bolt(according to your order),
Material :
Stainless Steel Brass Copper Aluminum Alloy Steel
Description

Stainless Steel Chicago Binding Barrels and Screws Big Truss Head Slotted Drive Butt Screws

Products Descriptions

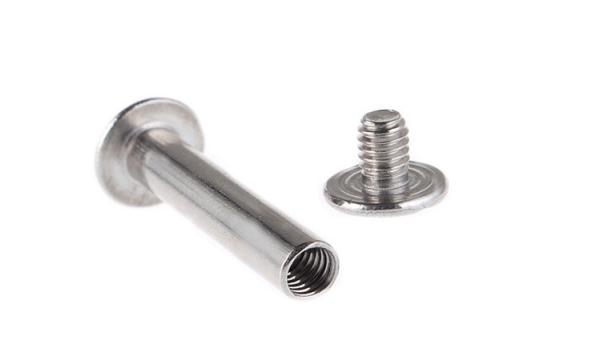

These include a barrel and a screw with an extra-wide (truss) head. Made from 18-8 stainless steel,they’re chemical resistant and may be mildly magnetic. Barrel length and screw length are measured from under the head.

Products Specifications

Material 18-8 Stainless Steel
Thread Size 10-24
For Material Thickness 2" to 2 1/8"
Barrel
Length 2"
Diameter 1/4"
Head Diameter 7/16"
Head Height 1/8"
Thread Depth 3/8"
Drive Style Slotted/Phillips
Screw
Length 5/16"
Head Diameter 7/16"
Head Height 1/8"
Drive Style Slotted/Phillips
Threading Fully Threaded
Tensile Strength Not Rated
Hardness Rockwell B80
Screw Size Decimal Equivalent 0.190"
Thread Type UNC
Thread Spacing Coarse
Thread Direction Right Hand
Head Type Rounded
Rounded Head Profile Wide
Rounded Head Style Truss
System of Measurement Inch
Includes Barrel, Screw
RoHS Compliant

Note: Material, Size, Surface Treatment for choose

Packaging Details

Stainless Steel Chicago Binding Barrels and Screws Big Truss Head Slotted Drive Butt Screws

More Products Pictures

Stainless Steel Chicago Binding Barrels and Screws Big Truss Head Slotted Drive Butt ScrewsStainless Steel Chicago Binding Barrels and Screws Big Truss Head Slotted Drive Butt Screws
