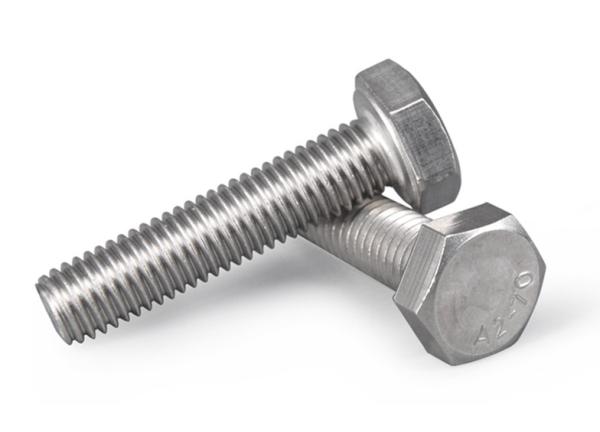

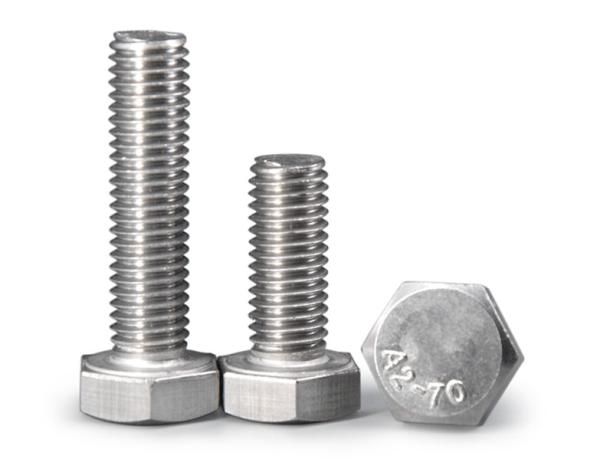

A2-70 Stainless Steel Hex Head Screws Stainless Steel Hex Bolts Stainless Steel Hexagon Screws
Products Descriptions
Made from A2-70 stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head.
Inch screws are also known as 18-8 stainless steel screws.
Black-oxide screws have a black appearance.
Match the thread spacing of mating components. Coarse threads are the industry standard; choose these screws if you don’t know the pitch or threads per inch. Fine and extra-fine threads are closely spaced to prevent loosening from vibration; the finer the thread, the better the resistance.
Screws that meet ASME or ISO (formerly DIN) specifications comply with these dimensional standards.
Products Specifications
| Head Type | Hex |
| Drive Style | External Hex |
| System of Measurement | Metric |
| Thread Direction | Right Hand |
| Thread Size | M8 |
| Thread Pitch | 1.25 mm |
| Thread Type | Metric |
| Thread Fit | Class 6g |
| Length | 55mm |
| Threading | Fully Threaded |
| Thread Spacing | Coarse |
| Head | |
| Width | 13mm |
| Height | 5.3mm |
| Material | 18-8 Stainless Steel |
| Tensile Strength | 100,000 psi |
| Hardness | Not Rated |
| Specifications Met | ISO 4017, DIN 933 |
Note: Material, Size and Surface Treatment for choose.
More Products Pictures
