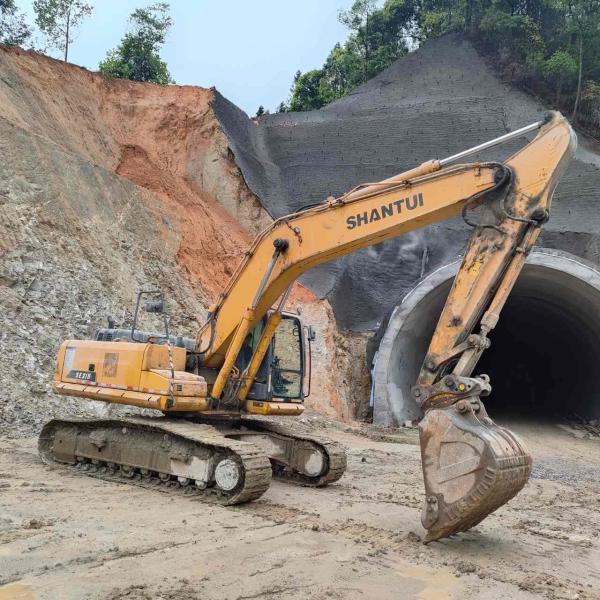

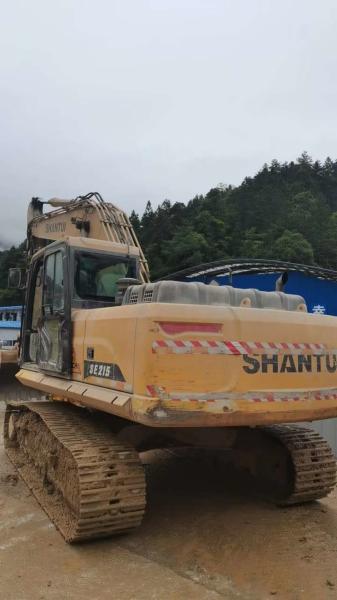

2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
Specifications
Brand Name :
Shantui
Model Number :
SE215
Certification :
SGS
Place of Origin :
Hunan, China
MOQ :
1
Price :
$45000-$50000
Payment Terms :
L/C, D/A, D/P
Supply Ability :
negotiable
Delivery Time :
8 work days
Packaging Details :
bare bones
Showroom Location :
None, China
Machine Weight :
21000 KG
Bucket capacity :
0.5~1.0m³
Hydraulic Cylinder Brand :
Top Brand
Hydraulic Pump Brand :
Top Brand
Hydraulic Valve Brand :
Top Brand
Power :
113 / 1900 kw/rpm
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Year :
2022
Working hours :
3000 hours
Product name :
Shantui SE215
Moving Type :
Crawler Excavator
Description
2022 Year Shantui 20800kg 0.9m3 Crawler Excavator Se215 with Powerful Engine
Model SE135 (Standard version) SE135W(Weichai engine version) SE150 (Standard version) SE215 (Standard version)
Overall dimensions
Overall length (mm) 7860 7860 7860 9625
Ground length (During transport) (mm) 4320 4320 4390 4915
Overall height (To the top of boom) (mm) 2800 2800 2860 3075
Overall width (mm) 2500 2500 2645 2800
Overall height (To top of cab) (mm) 2855 2855 2855 3055
Ground clearance of counterweight (mm) 915 915 915 1075
Minimum ground clearance (mm) 425 425 425 470
Tail turning radius (mm) 2380 2380 2380 2925
Track length (mm) 3645 3645 3645 4140
Track gauge (mm) 2000 2000 2000 2200
Track width (mm) 2500 2500 2500 2800
Standard track shoe width (mm) 500 500 500 600
Turntable width (mm) 2490 2490 2645 2725
Distance from slewing center to tail (mm) 2375 2375 2375 2920
Working range
Maximum digging height (mm) 8495 8495 8670 10095
Maximum dumping height (mm) 6060 6060 6210 7190
Maximum digging depth (mm) 5490 5490 5490 6490
Maximum vertical digging depth (mm) 4625 4625 4625 5915
Maximum digging distance (mm) 8300 8300 8325 9860
Maximum digging distance at ground level (mm) 8175 8175 8195 9675
Working device minimum turning radius (mm) 2445 2445 2395 2970
Maximum lifting height of bulldozer blade (mm) - - - -
Maximum digging depth of bulldozer blade (mm) - - - -

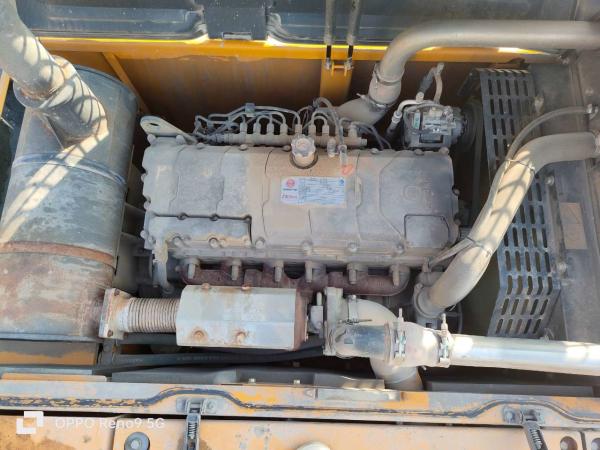

Engine
Model QSF3.8T(China III) WP4.1(China III) QSF3.8T (China-III) QSB7 (China-III)
Type 4-cylinder inline and water-cooled
and turbocharged		 Inline 4-cylinder, high pressure common rail,
and water-cooled and turbocharged		 4-cylinder, high pressure common rail,
and water-cooled and turbocharged		 6-cylinder, high pressure common rail,
and water-cooled and turbocharged
Displacement (L) 3.76 3.76 3.76 6.7
Rated power (kW/rpm) 86/2200 92/2200 86/2200 124/2050
Hydraulic system
Type of hydraulic pump Variable displacement duplex plunger pump Variable displacement duplex plunger pump Variable displacement duplex plunger pump Variable displacement duplex plunger pump
Rated working flow (L/min) 2x130 2x130 2x130 2x213
Bucket
Bucket capacity (m³) 0.4~0.65(0.55) 0.4~0.65(0.55) 0.65 0.9
Swing system
Maximum swing speed (r/min) 11.3 11.3 11.3 11
Brake type Mechanically applied and pressure released Mechanically applied and pressure released Mechanically applied and pressure released Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN) 70 70 70 135/146
Bucket digging force (KN) 97 97 97 99/107
Operating weight and ground pressure
Operating weight (kg) 13500 13500 14500 20800
Ground pressure (kPa) 41.5 41.5 43.8 47.5
Traveling system
Traveling motor Axial variable displacement plunger motor Axial variable displacement plunger motor Axial variable displacement plunger motor Axial variable displacement plunger motor
Traveling speed (km/h) 3.25/5.2 3.25/5.3 3.25/5.2 3.15/5.15
Traction force (KN) 118 118 118 214
Gradeability 70%(35°) 70%(35°) 70%(35°) 70%(35°)
Tank capacity
Fuel tank capacity (L) 220 245 220 330
Cooling system (L) 20 20 20 28
Engine oil capacity (L) 12 12 12 22
Hydraulic oil tank/system capacity (L) 177/205L 177/205L 177/205 270/400
