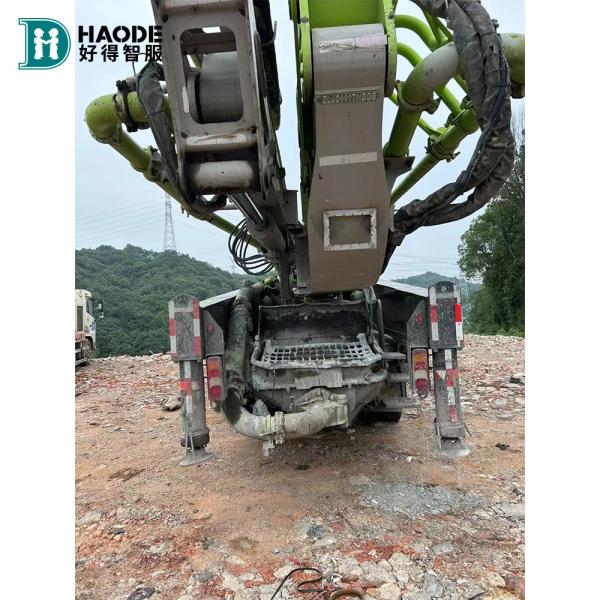

Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Specifications
Place of Origin :
China
Model Number :
zoomlion 5441HPT
Packaging Details :
Standard packing
Supply Ability :
10000 Piece/Pieces per Month
Price :
$130,000.00/sets 1-4 sets
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location :
None
Power Type :
Other, Diesel
Power :
298KM
Weight :
35000 KG
Max. vertical conveying distance :
59M
Max. horizontal conveying distance :
34M
Productivity :
180/120m3/h
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Year :
2020
Working hours :
6001-8000
Product name :
Concrete Pump Truck
Brand :
zoomlion
Weight: :
35000 KG
Max. horizontal conveying distance: :
180M
Power: :
300KW
Concrete delivery Max: :
180M3/h
Year: :
2020
Core Components: :
Engine
Number of bridges :
3
Port :
Zhejiang,Guangzhou
MOQ :
1pc
Description
Zoomlion 5351THB 59m Hydraulic Truck Mounted Concrete Line Pump
Complete vehicle parameters
Overall length
12280mm
Overall width
2530mm
Overall height
4000mm
Total weight
35000kg
Pumping system parameters
Theoretical concrete displacement low pressure
180m³/h
Theoretical concrete displacement high pressure
120m³/h
Theoretical pumping pressure low pressure
8.3Mpa
Theoretical pumping pressure high pressure
13Mpa
Theoretical pumping times low pressure
29
Theoretical pumping times high pressure
20
Inner diameter of conveying cylinder
260mm
Stroke of conveying cylinder
1900mm
Hydraulic system
open
System oil pressure
32Mpa
Oil tank volume
400L
Water tank volume
700L
Conveying pipe diameter
125mm
Length of hose at end
3m
End hose diameter
125mm
Chassis parameters
Chassis brand
zoomlion
Chassis model
ZLJ5351THBKF
Engine model
D12C5-490E0
Maximum net engine power
348kW/1900rpm
Emission standard
National VI
Fuel tank volume
600L
Displacement
12.12L
Max speech
90km/h
Key parameters
Number of bridges
4
Chassis
zoomlion
Vertical height of boom
59.1m
