Specifications
Operating System :
Contact Brush Type
Model NO. :
FGH40K-2000G-90G/20P
Package :
Encoder Assembly
Brand :
Hubner
Installation Form :
Axle Sleeve Type
Signal Output :
Voltage Output
MOQ :
1
Price :
180
Axle Sleeve Type :
Large Diameter Type
Description

Heavy Duty Hollow Shaft Encoder FGH40K-2000G-90G/20P Replacement for HUBNER, 2000PPR

Product Description

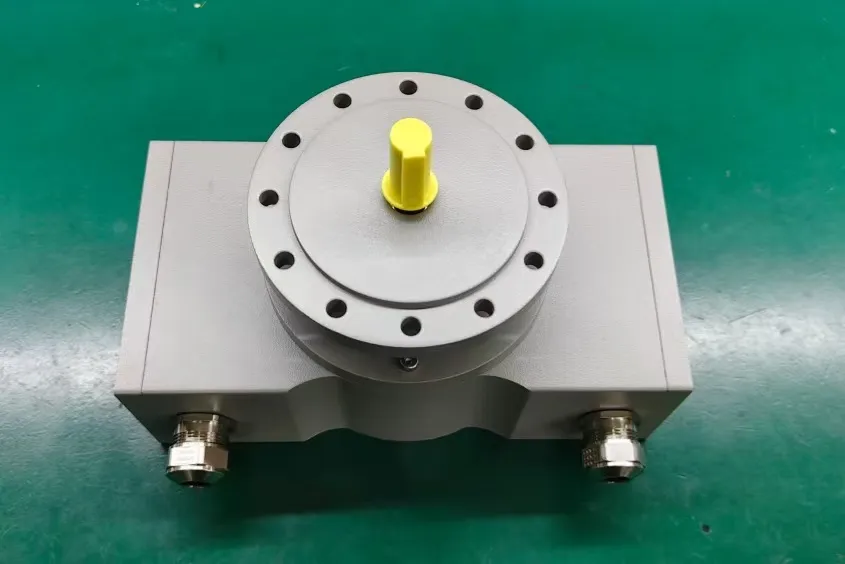

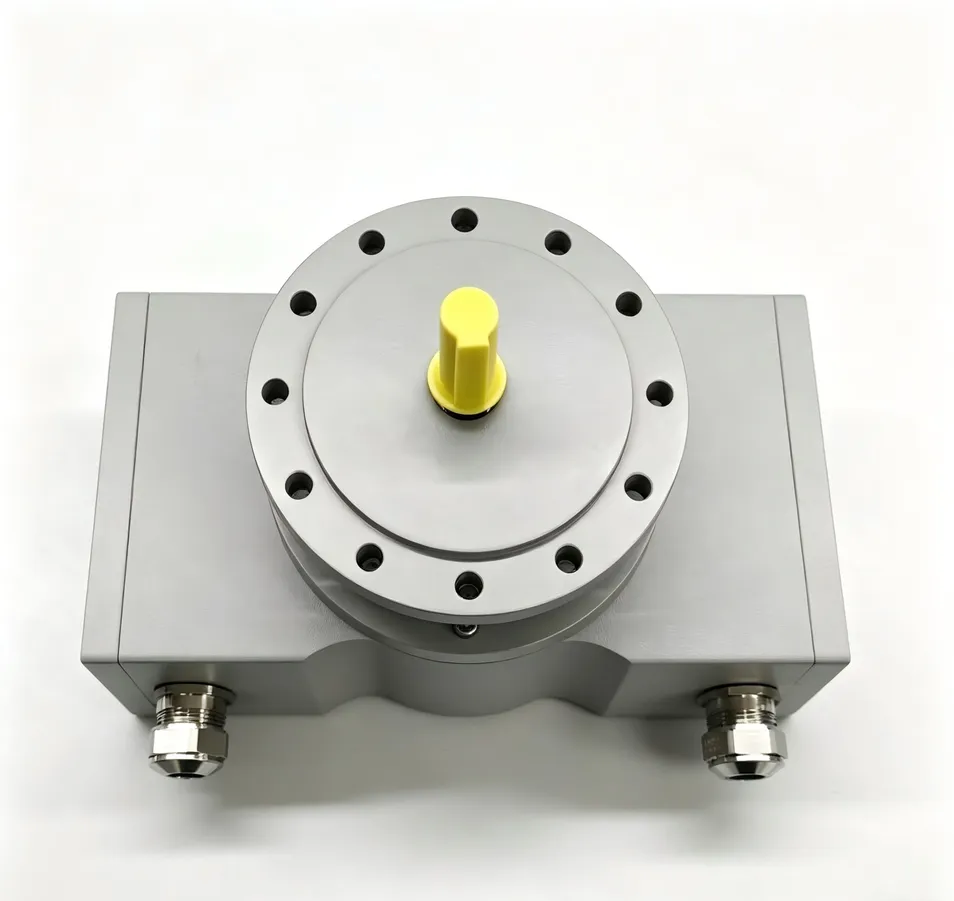

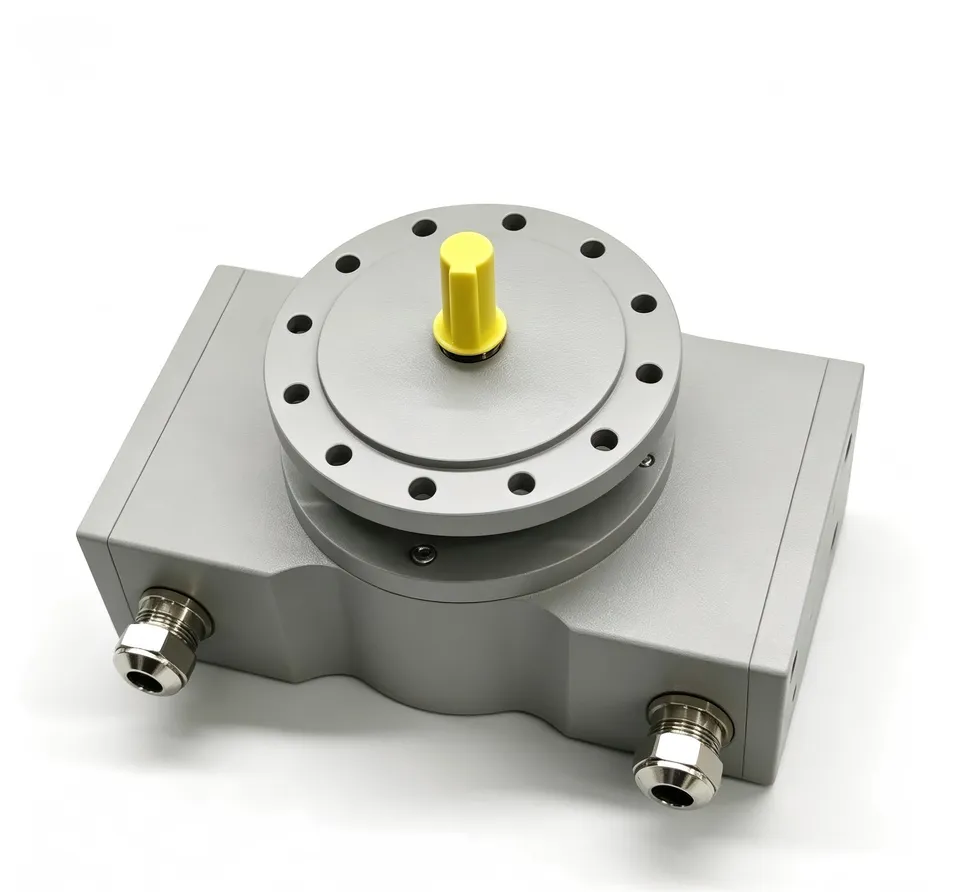

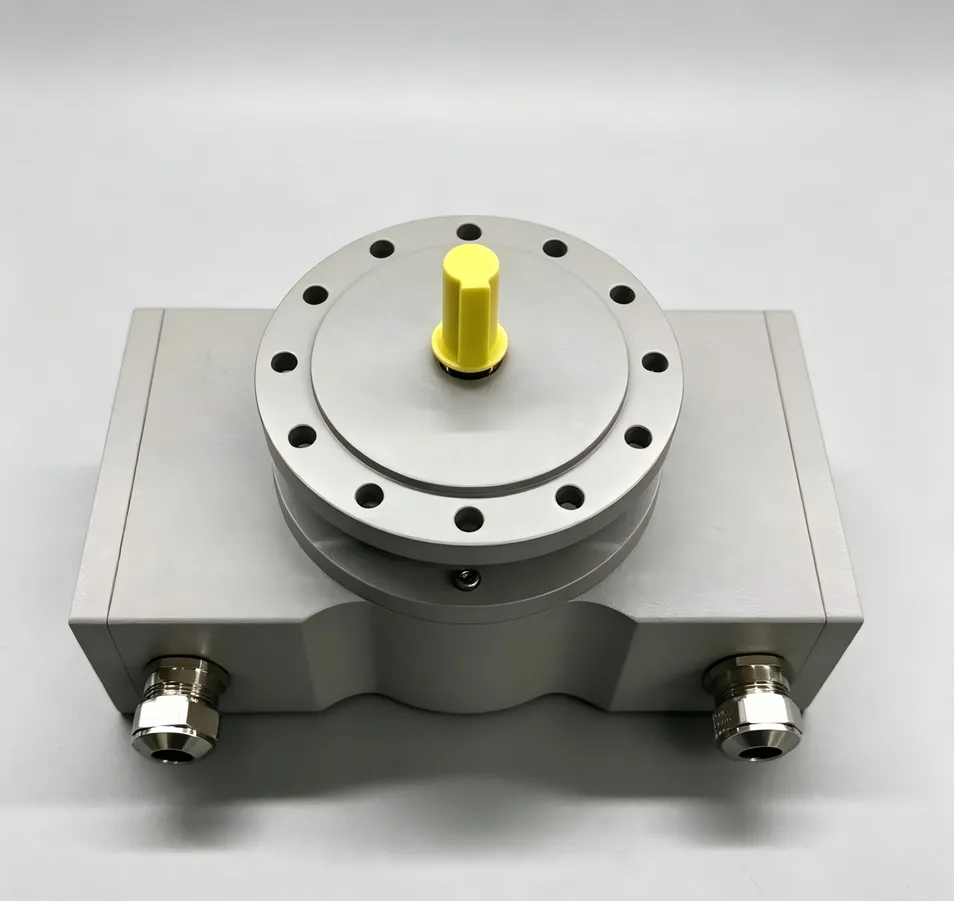

Heavy-duty incremental hollow shaft encoder FGH40K-2000G-90G/20P, direct replacement for German HUBNER encoder. Fully compatible with original unit on mechanical dimension, hollow shaft size, wiring definition and electrical parameters. Ideal for harsh industrial conditions with strong anti-vibration and anti-interference performance for speed and position feedback.

Heavy Duty Hollow Shaft Encoder Fgh40K-2000g-90g/20p Replacement for Hubner, 2000PPR
Heavy Duty Hollow Shaft Encoder Fgh40K-2000g-90g/20p Replacement for Hubner, 2000PPR
Specifications

Model: FGH40K-2000G-90G/20P
Resolution: 2000 PPR
Shaft: Hollow shaft Ø20 mm
Power Supply: 12–30 VDC
Signal: A/B/Z phase, HTL push-pull output
Protection Class: IP65
Operating Temperature: -40℃ ~ +85℃
Housing: High-strength aluminum alloy, heavy-duty bearing structure

Advantages
  • 1:1 mounting dimension, direct plug-and-play replacement without equipment modification
  • Identical wiring definition and signal level as original HUBNER encoder
  • Heavy-duty anti-vibration structure, works well in dusty, humid and high-vibration environment
  • In stock available, shorter lead time and better cost performance
  • 18 months warranty, custom pulse, shaft bore and output signal supported
Heavy Duty Hollow Shaft Encoder Fgh40K-2000g-90g/20p Replacement for Hubner, 2000PPR
Application

Suitable for crane systems, metallurgical rolling mills, port container machinery, belt conveyors, ventilation fans, mining machinery, large drive motors, lifting equipment, material handling equipment and other heavyduty industrial equipment. Provides stable speed measurement and position feedback under severe conditions of heavy shock, vibration, dust and humidity.

Product Attribute Table (Backend Paste)

Product Name: Incremental Rotary Encoder
Model: FGH40K-2000G-90G/20P
Brand: Fill your brand
Type: Hollow Shaft Incremental Encoder
Resolution: 2000PPR
Shaft Bore: 20mm
Output: HTL Push-pull
Supply Voltage: 12-30VDC
IP Rating: IP65
Warranty: 18 Months
Application: Crane, Metallurgy, Port, Mining, Fan Equipment
