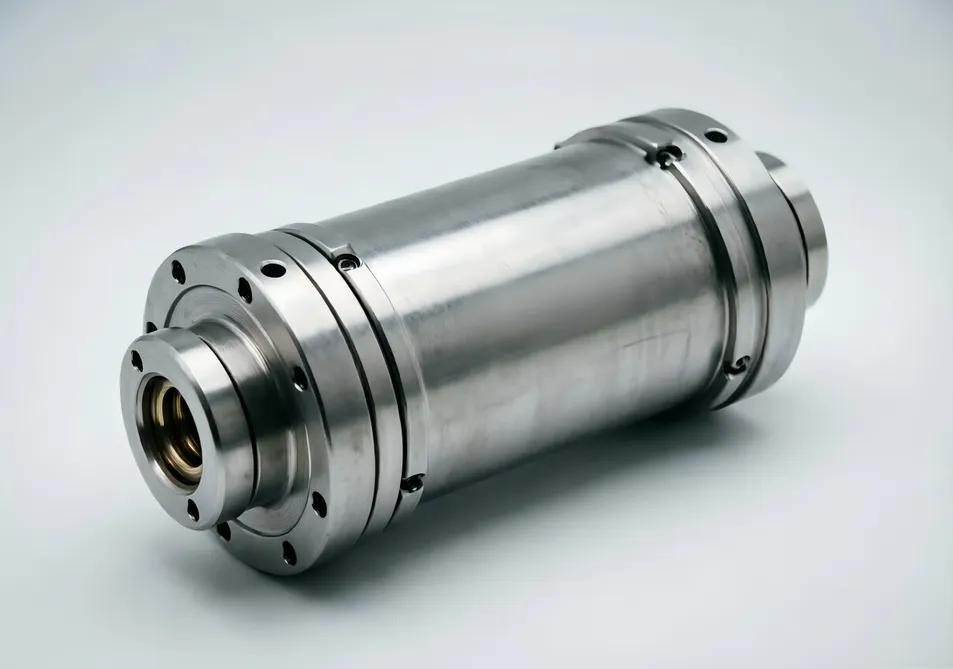

Heavy Duty 8 Channel Rotary Joint Assembly for Industrial Machinery

The heavy duty 8 channel rotary joint assembly is designed for transferring hydraulic oil, air, and other media between stationary and rotating components in industrial machinery. It features a robust structure, high pressure capability, and reliable sealing performance, making it suitable for demanding industrial applications.

This rotary joint assembly is manufactured according to customer drawings and technical specifications, providing a reliable replacement solution for original equipment components.

Specification

Key Features

• 8 Channel Design
  Equipped with 8 independent channels for simultaneous transmission of different media.
• Heavy Duty Construction
  Designed for large industrial equipment with a maximum torque of 68 kNm and robust mechanical structure.
• High Pressure Performance
  Supports hydraulic oil pressure up to 32 MPa and air pressure up to 1 MPa.
• Excellent Corrosion Protection
  Key surfaces are treated with hard chrome plating and chemical nickel coating to improve wear resistance and corrosion resistance.
• Low Speed High Torque Application
  Maximum rotating speed: 4 RPM, suitable for heavy industrial rotating equipment.
• Customized Manufacturing
  Available according to customer drawings, dimensions, connection requirements, and operating conditions.

Technical Specifications

(Custom configurations available upon request.)

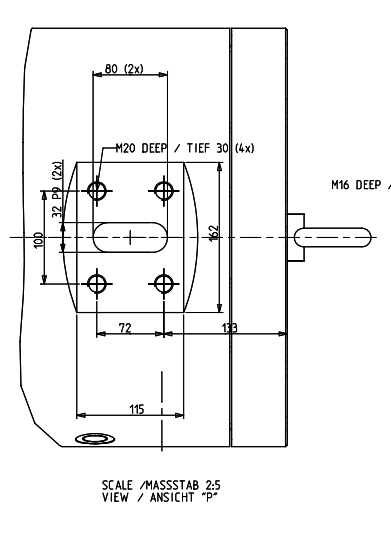

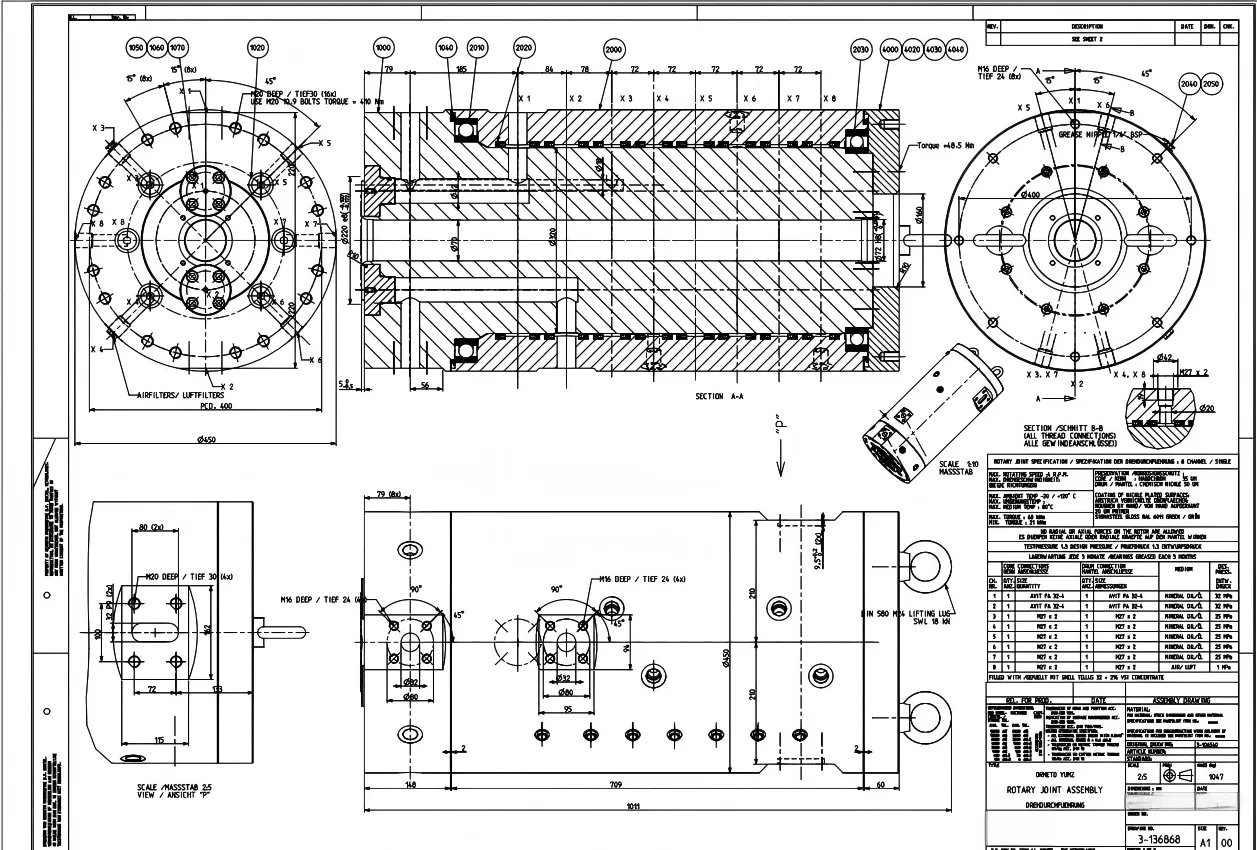

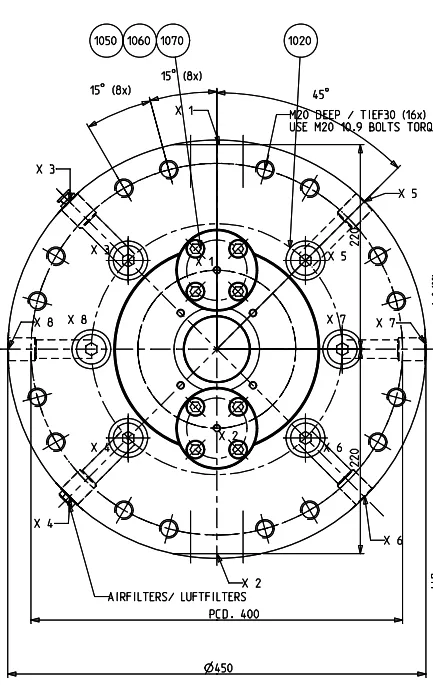

Drawings & Dimensions

After Sales Service

• Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
• Extended Warranty: Optional coverage up to 24 months.
• Global Support: 24/7 technical assistance and spare parts supply.
• Training: On-site or remote operation/maintenance training.

Company Profile

XXX Heavy Machinery Co., Ltd.

XXX Heavy Machinery Co., Ltd. is a leading Chinese manufacturer of construction equipment with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.

FAQ

1. Q: Can you provide customized rotary joint assemblies according to drawings?
   A: Yes. We can manufacture customized rotary joint assemblies according to customers' drawings, specifications, and equipment requirements.
2. Q: Can this product be used as a replacement for imported rotary joints?
   A:Yes. We provide OEM replacement solutions and can manufacture rotary joint assemblies according to original drawings, dimensions, and technical requirements
3. Q: What information is required for quotation?
   A: Please provide drawings, part numbers, application details, working medium, pressure, temperature, rotation speed, and connection requirements.
4. Q: Do you support small quantity orders?
   A: Yes. We can support trial orders and customized production according to customer requirements.
5. Q: What is the lead time for a customized rotary joint assembly?
   A: The lead time depends on product structure, materials, and quantity. We will provide an estimated delivery time after reviewing the technical requirements.
