2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum and Carbon Steel
2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum and Carbon Steel
2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum and Carbon Steel
2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum and Carbon Steel
2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum and Carbon Steel
2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum and Carbon Steel
Specifications
Brand Name :
HanWei
Model Number :
HW-DZJS-2000
Certification :
CE
Place of Origin :
Shenzhen. China
MOQ :
1 Set
Price :
USD / Set
Payment Terms :
T/T
Supply Ability :
2000 Sets / year
Delivery Time :
10 working days
Packaging Details :
Export Plywood Packing
Laser Power :
2000W
Welding Materials :
Steel / Stainless Steel / Aluminium
Welding Beam Size :
0-5mm Adjustable ( 0-10mm option )
Electrical Input Voltage :
220v 50Hz / 60Hz
Collimation Focal Length :
60mm
Focusing Focal Length :
150mm
Laser Output Mode :
4 mode ( CW, PWM, QCW, Argon )
Welding Thickness :
4mm Stainless steel Full Penetration
Feeding Wires :
0.8&1.0&1.2&1.6mm wire feeding ( 2.0mm wire feeding option )
Welding Parameter Save :
30 kinds of different welding parameter save
Description

2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum & Carbon Steel

2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum & Carbon Steel Description:

The Compact Single Motor Welding Head represents a cutting-edge and innovative welding tool. Designed with a user-centric approach, it adeptly addresses complex welding requirements by balancing welding process efficiency with user ergonomics for prolonged use. This allows welders to execute projects more efficiently and accurately.
Featuring a lightweight, aerodynamic, and ergonomic design, the welding head ensures a comfortable and secure grip. It can be seamlessly adapted to various welding tasks across diverse work environments—whether in large-scale industrial production settings or outdoor field repair scenarios—consistently delivering exceptional results.

2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum and Carbon Steel

2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum & Carbon Steel Features:

  • Handheld Laser Welding Machine
  • Gas: Argon / Nitrogen
  • Product Name: Fiber Laser Welding Head
  • Positioning: Red Guide Beam
  • Laser Beam Size: 0~5mm Adjustable
  • Fiber Cable: 10m Standard (15 / 20m Option)
  • Fiber Connector: QBH
  • Handheld Laser Gun Weight: 0.7kg

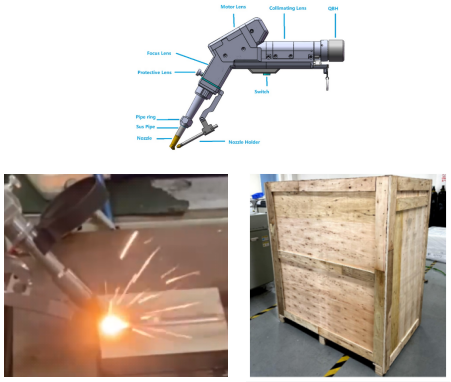

The fiber laser welding head is a high-quality fiber laser device integrated with a QBH fiber coupler. Its laser beam diameter is adjustable within a range of 0–5mm, and it is equipped with a red aiming beam to guarantee precise positioning. Weighing only 0.7kg in total, this fiber laser welding head is exceptionally lightweight, with a design prioritizing user comfort.

2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum & Carbon Steel Technical Parameters:

Product Name

Handheld Single Motor Laser Welding Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

2000W

Handheld Laser Gun Weight

0.7kg

Welding Beam Form

Line " 一 "

Welding Beam Size

0-5mm Adjustable

Welding Parameter Save

30 kinds of different welding parameter save

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Fiber Connector

QBH

Position Guide

Red Guide Light

Cooling method in Winter

Add Antifreeze

2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum and Carbon Steel

2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum & Carbon Steel Application Advantages:

The HanWei HW-DZJS-2000 portable welding device showcases exceptional performance across diverse scenarios. Its portability delivers unparalleled convenience for on-site welding tasks, enabling operational flexibility in nearly any location. The cordless welding feature streamlines workflows, allowing welding projects to be completed rapidly. This product has become a staple in construction, manufacturing, and repair industries, serving as an indispensable tool for professionals seeking reliable, high-performance welding solutions.
For thin metal plates such as stainless steel, carbon steel, and aluminum, the handheld single-vibration welding device offers an excellent alternative to traditional argon arc and electric welding methods. The welding torch is lightweight, compact, and ergonomically designed for comfortable handling, equipped with a safety lock and touch-activated indicator light. Its user-friendly design minimizes operator fatigue, while producing welds of superior quality at high speeds. Notably, the process leaves no visible welding marks or color changes, eliminating the need for post-weld polishing. Featuring robust anti-interference capabilities, it is integrated with a proprietary control system to ensure stable, precise performance.

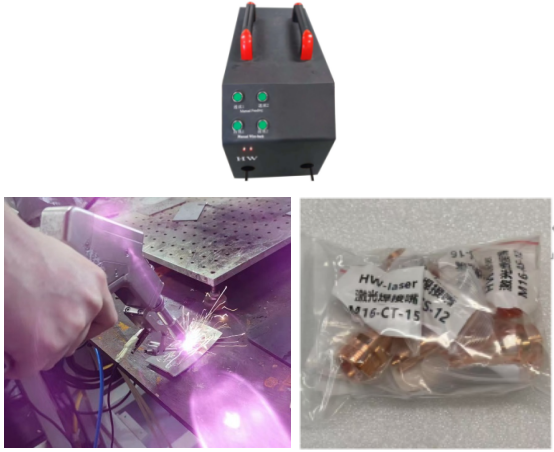

2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum & Carbon Steel Packing:

  • One Fiber Laser Welding Head
  • One Controller
  • Two Protective Lens
  • A set of Connection Cables and Line
  • One User Manual
  • One Safety Switch Clip
  • Seven kinds of nozzles
  • One 15v Power Supply
  • One Wire feeding device
  • One Touch Screen Monitor

​2000W Handheld Single Motor Laser Welding Machine for Welding Aluminum and Carbon Steel

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. provides a wide range of laser equipment, covering both desktop and handheld types. These systems adopt advanced technologies such as fiber lasers, pulsed or continuous - wave lasers, blue lasers, diode lasers, and hybrid lasers, aiming to meet the distinct needs of customers. In addition, the company offers customized solutions for specific applications and provides training and support services to assist customers in fully unleashing the potential of their laser systems. With branches and partners in Europe, North America, Asia, and the Middle East, Hanwei Laser has established a global presence, serving clients around the world.

Hanwei Laser's core business centers on the laser welding field. The company is committed to offering top - notch laser welding technology to international laser integration companies, with the goal of providing high - quality welding solutions to all integrators. As one of the few national high - tech specialized and innovative enterprises in the world, it focuses on the R&D, production, and sales of various welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.
