1500W Handheld Single Motor Laser Welding Machine with 4mm Stainless Steel Full Penetration
1500W Handheld Single Motor Laser Welding Machine with 4mm Stainless Steel Full Penetration
1500W Handheld Single Motor Laser Welding Machine with 4mm Stainless Steel Full Penetration
1500W Handheld Single Motor Laser Welding Machine with 4mm Stainless Steel Full Penetration
1500W Handheld Single Motor Laser Welding Machine with 4mm Stainless Steel Full Penetration
1500W Handheld Single Motor Laser Welding Machine with 4mm Stainless Steel Full Penetration
Specifications
Brand Name :
HanWei
Model Number :
HW-DZJS-1500
Certification :
CE
Place of Origin :
Shenzhen. China
MOQ :
1 Set
Price :
USD / Set
Payment Terms :
T/T
Supply Ability :
2000 Sets / year
Delivery Time :
10 working days
Packaging Details :
Export Plywood Packing
Laser Power :
1500W
Welding Materials :
Steel / Stainless Steel / Aluminium
Electrical Input Voltage :
220v 50Hz / 60Hz
Welding Beam Size :
0-5mm Adjustable ( 0-10mm option )
Collimation Focal Length :
60mm
Focusing Focal Length :
150mm
Welding Thickness :
4mm Stainless steel Full Penetration
Feeding Wires :
0.8&1.0&1.2&1.6mm wire feeding ( 2.0mm wire feeding option )
Laser Output Mode :
4 mode ( CW, PWM, QCW, Argon )
Welding Parameter Save :
30 kinds of different welding parameter save
Description

1500W Handheld Laser Welding Machine with 4mm Stainless Steel Full Penetration

1500W Handheld Laser Welding Machine with 4mm Stainless Steel Full Penetration Description:

The Handheld Single Wobble Welding Head stands as an advanced and innovative welding tool. Embracing user-centric design concepts, it skillfully tackles complex welding demands by carefully considering both the practical aspects of the welding process and the comfort level during extended use. It offers a more efficient and accurate operational mode for welding projects.

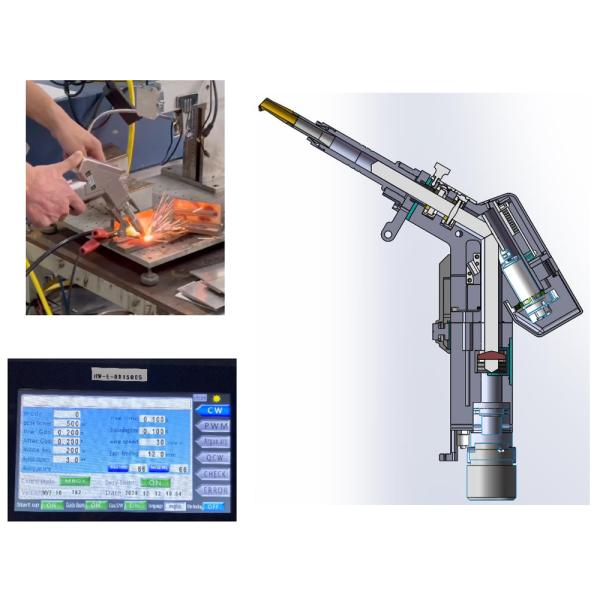

This welding head features a lightweight, compact, and ergonomically engineered structure, guaranteeing a comfortable and firm hold. It can be easily adapted to various welding tasks across a broad spectrum of working conditions. Whether it's mass production in factories or outdoor on-site repair jobs, it is well-equipped to achieve excellent results.

1500W Handheld Single Motor Laser Welding Machine with 4mm Stainless Steel Full Penetration

1500W Handheld Laser Welding Machine with 4mm Stainless Steel Full Penetration Features:

  • Handheld Laser Welding Machine
  • Handheld Laser Gun Weight: 0.7kg
  • Product Name: Fiber Laser Welding Head
  • Fiber Cable: 10m Standard. (15 / 20m Option)
  • Fiber Connector: QBH
  • Positioning: Red Guide Beam
  • Laser Beam Size: 0~5mm Adjustable
  • Gas: Argon / Nitrogen

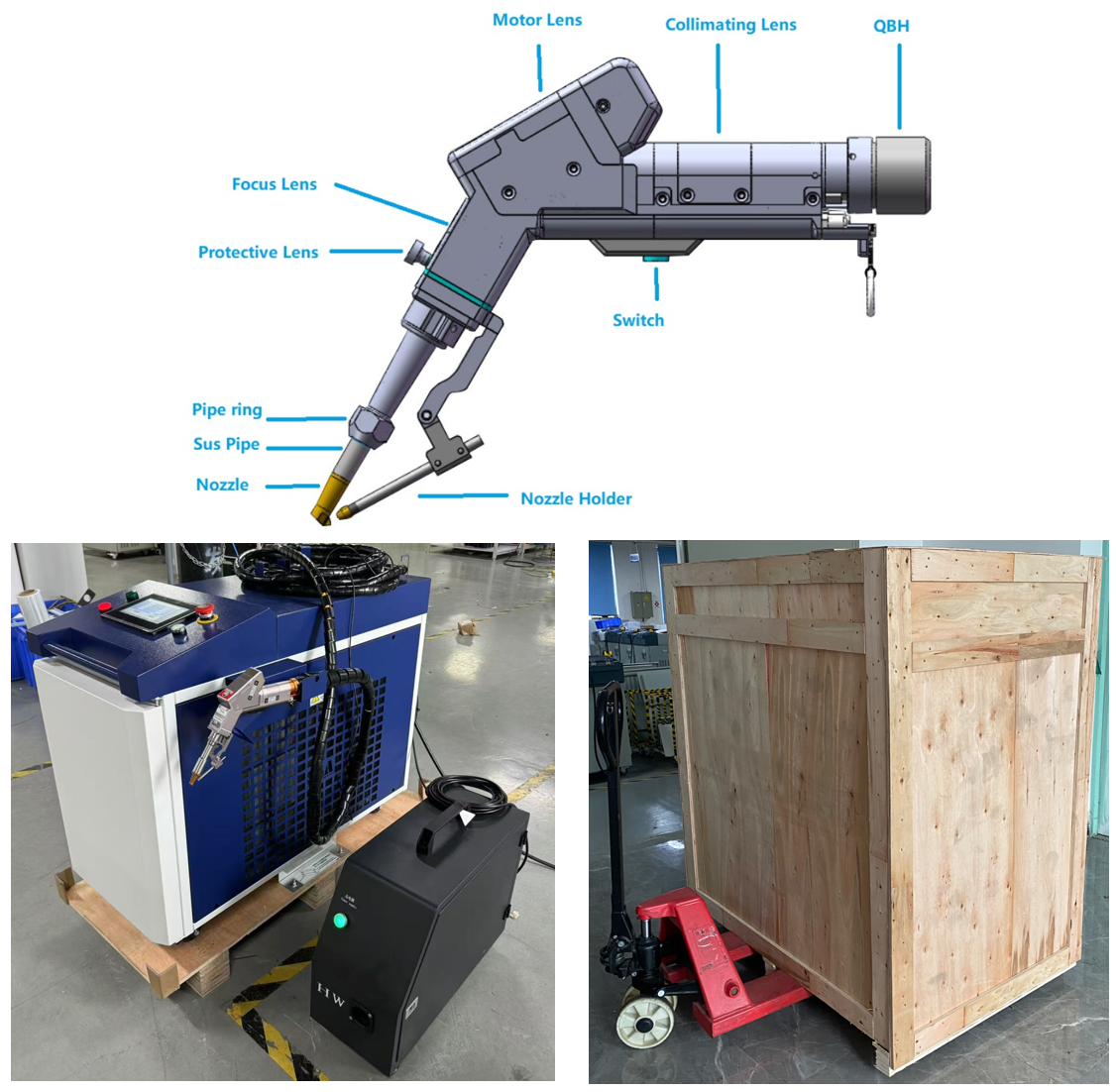

The Fibre Laser Welding Head constitutes a high-performance Fibre Laser Device outfitted with a QBH fibre coupler. The diameter of its laser beam can be tuned within the span of 0 - 5mm, and it comes with a red alignment beam for precise positioning. This Fiber Optic Laser Welding Tip is of a lightweight nature and crafted with the end-user's comfort as a top priority, boasting an overall mass of just 0.7kg.

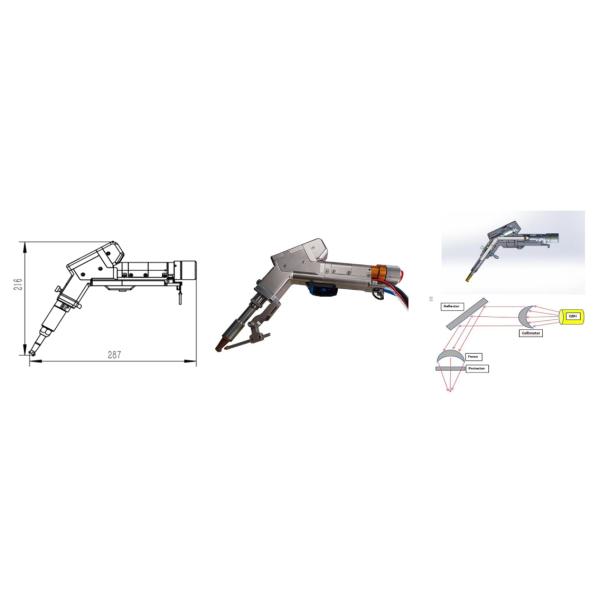

1500W Handheld Laser Welding Machine with 4mm Stainless Steel Full Penetration Technical Parameters:

Product Name

Handheld Single Motor Laser Welding Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

1500W

Handheld Laser Gun Weight

0.7kg

Welding Beam Form

Line " 一 "

Welding Beam Size

0-5mm Adjustable

Cooling method in Winter

Add Antifreeze

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Fiber Connector

QBH

Position Guide

Red Guide Light

Welding Parameter Save

30 kinds of different welding parameter save

1500W Handheld Single Motor Laser Welding Machine with 4mm Stainless Steel Full Penetration

1500W Handheld Laser Welding Machine with 4mm Stainless Steel Full Penetration Application Advantages:

The HanWei HW-DZJS-1500 handheld welding device demonstrates exceptional prowess across a variety of scenarios. Its mobility affords it extraordinary convenience for field welding, allowing it to be deployed virtually anywhere. The cordless welding functionality simplifies the operation, expediting the prompt accomplishment of welding assignments. This offering proves to be extremely precious in construction, manufacturing, and repair sectors, emerging as an essential tool for those seeking a dependable and efficient welding implement.
The handheld single oscillating welding machine represents a superb substitute for traditional argon arc welding and electric welding methods when dealing with thin metal sheets like stainless steel, steel, and aluminum. The welding tip is lightweight, space-saving, and ergonomically designed to guarantee a pleasant gripping sensation. It incorporates a safety latch along with a touch-sensitive indicator light. Its intuitive design imposes hardly any demands on the operator. The weld seam is of top-notch quality, the welding speed is swift, and there are neither welding marks nor color changes, eliminating the need for post-welding grinding. It exhibits strong anti-interference capabilities and is furnished with an in-house developed control system.
1500W Handheld Laser Welding Machine with 4mm Stainless Steel Full Penetration Packing:
  • One User Manual
  • One Wire feeding device
  • One Fiber Laser Welding Head
  • One 15v Power Supply
  • Two Protective Lens
  • A set of Connection Cables and Line
  • Seven kinds of nozzles
  • One Controller
  • One Touch Screen Monitor
  • One Safety Switch Clip

​1500W Handheld Single Motor Laser Welding Machine with 4mm Stainless Steel Full Penetration

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. offers a rich array of laser setups, covering both desktop and handheld models. These systems integrate cutting-edge fiber, pulsed or continuous wave, blue laser, diode laser, and hybrid laser technologies, meticulously catering to the unique demands of their customers. What's more, they provide tailor-made solutions for specific applications and offer training and support to help customers fully harness the capabilities of their laser systems. With branches and affiliates spread across Europe, North America, Asia, and the Middle East, Hanwei Laser has built a global footprint, catering to clients worldwide.
Hanwei Laser focuses its core business on the laser welding domain. The company is dedicated to supplying world-class laser welding technology to international laser integration enterprises. It endeavors to present top-notch welding technology to all integrators. As one of the rare national high-tech specialized emerging enterprises on a global scale, it specializes in the R&D, manufacturing, and marketing of diverse welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.
