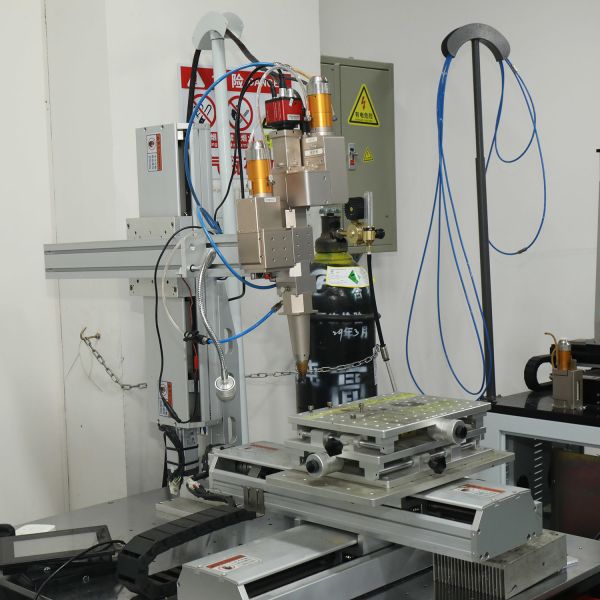

QCW Laser Welder With Reduced Maintenance And Increased Operational Reliability
QCW Laser Welder With Reduced Maintenance And Increased Operational Reliability
QCW Laser Welder With Reduced Maintenance And Increased Operational Reliability
QCW Laser Welder With Reduced Maintenance And Increased Operational Reliability
QCW Laser Welder With Reduced Maintenance And Increased Operational Reliability
QCW Laser Welder With Reduced Maintenance And Increased Operational Reliability
Specifications
Brand Name :
HanWei
Model Number :
HW-QCW
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
USD / Set
Payment Terms :
T/T
Supply Ability :
2000 Sets / year
Delivery Time :
10 working days
Packaging Details :
Export Plywood Packing
Laser Power :
150W/300W
Pulse Energy :
15J/30J
Power Consumption :
2 Kw/2.5 Kw
Power Stability :
≤ ± 1%
Machine Size :
665*450*300 mm
Pulse Width :
0.5-50
Peak power :
1500W/3000W
Machine Weight :
22Kg/28Kg
Frequency :
100 Hz/2 KHz
Wavelength :
1070nm ± 10%
Input Voltage :
AC220V 50/60Hz
Cooling Method :
Air Cooling
Description
QCW Laser Welder With Reduced Maintenance And Increased Operational Reliability
The QCW (Quasi-Continuous Wave) fiber laser delivers high peak energy over extended pulse durations, making it ideal for precision spot welding, seam welding, and other industrial applications. Its concentrated and stable pulses rapidly heat the target area, producing uniform melt pools while minimizing heat-affected zones. Whether welding thin sheets or combining different metal thicknesses, the QCW laser ensures consistent weld quality, strong bonds, and high repeatability.
QCW Laser Welder With Reduced Maintenance And Increased Operational Reliability
Key Features
  • Optimized for Long-Pulse, High-Peak Power Industrial Welding
  • Efficient Alternative to YAG Laser Systems
  • Reduced Maintenance and Increased Operational Reliability
  • Fully Self-Developed Beam Splitting and Timing Control
Technical Specifications
Model HW-Q-150 HW-Q-300
Input Voltage AC220V 50/60Hz AC220V 50/60Hz
Machine Size 665*450*300 mm 665*450*300 mm
Wavelength 1070nm ± 10% 1070nm ± 10%
Frequency 100 Hz 2 KHz
Machine Weight 22 Kg 28 Kg
Laser Power 150 W 300 W
Peak Power 1500 W 3000 W
Pulse Width 0.5-50 0.5-50
Pulse Energy 15 J 30 J
Power Stability ≤ ± 1% ≤ ± 1%
Power Consumption 2 Kw 2.5 Kw
Cooling Method Air Cooling Air Cooling
Applications
Equipped with a semiconductor-pumped fiber laser source, the QCW welder eliminates the need for lamp replacements or cavity optics maintenance. The fully enclosed optical path prevents dust contamination, ensuring long-term stable operation. Reduced maintenance intervals and lower downtime risk enhance continuous production capability, making it a cost-effective choice for high-demand industrial welding environments.
The machine features a fully in-house developed system for high-speed beam splitting, energy distribution, and pulse timing control. Advanced software and hardware coordination enables precise energy management across multiple outputs, guaranteeing uniform weld quality for each workstation. The modular and self-controlled design allows flexible integration into automated production lines and future process upgrades, offering reliable, high-precision industrial welding solutions.
About Shenzhen Hanwei Laser
Shenzhen Hanwei Laser Equipment Co., Ltd. is a professional enterprise dedicated to the R&D, production and sales of laser welding equipment and related core components. The company focuses on providing stable and reliable laser solutions for global industrial customers and system integrators, with a complete product portfolio covering various laser types and application configurations.

Relying on strong technical accumulation and independent research capabilities, Hanwei Laser continuously promotes the innovation and upgrading of laser welding technology. The company provides not only standardized products but also personalized solutions according to different application scenarios and production needs, accompanied by professional technical support, operation training and complete after-sales service.

With an extensive global layout, the company has established service networks and cooperative relationships in Europe, North America, Asia, the Middle East and other regions, providing convenient and efficient support for customers around the world. As a national high-tech and specialized, sophisticated, distinctive and innovative enterprise, Hanwei Laser always takes technology and quality as its development foundation, and is committed to becoming a reliable long-term partner in the global laser welding industry.
QCW Laser Welder With Reduced Maintenance And Increased Operational ReliabilityQCW Laser Welder With Reduced Maintenance And Increased Operational Reliability QCW Laser Welder With Reduced Maintenance And Increased Operational Reliability QCW Laser Welder With Reduced Maintenance And Increased Operational Reliability
